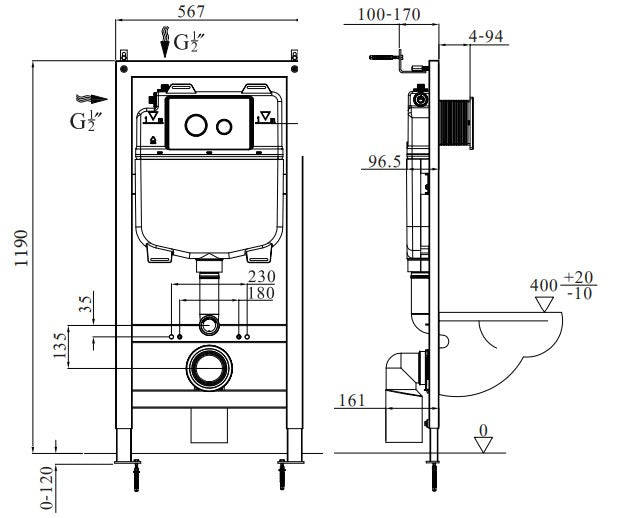

ANAS Compact Wall Hung Frame
Description:
The ANAS Compact Wall Hung Frame is designed for modern bathroom installations, providing a sleek and space-saving solution. It includes a concealed cistern and requires a separate flush plate. The frame is suitable for use with FP1 and FP2 flush plate options and supports dual flush mechanisms for efficient water usage.
Specifications:
- Included Components: Concealed cistern (134.BCC)
- Flush Plate: Not included
- Flush Volume Options: 4.6L or 3/4.5L
- Operation: Pneumatic
- Pan Connection: Left or right turn
- Weight: 15kg
- Additional Features: Polystyrene jacket for insulation
Flush Plate Options :
Available in round or square button designs with different finishes:
-
Round Options:
- Chrome – 134.FP1CH
- Matt Black – 134.FP1MB
- Gloss White – 134.FP1GW
-
Square Options:
- Chrome – 134.FP2CH
- Matt Black – 134.FP2MB
- Gloss White – 134.FP2GW
This wall-hung frame is an ideal choice for concealed installations, offering durability and efficiency while maintaining a clean and modern aesthetic.
