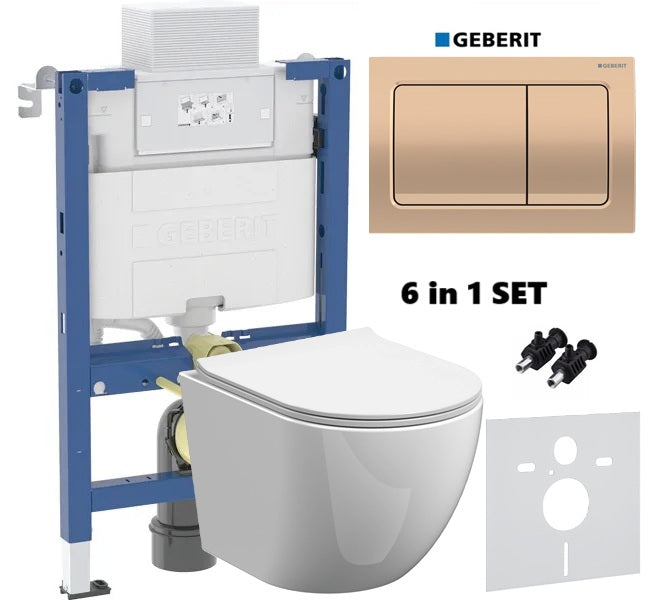

Anas Magna Rimless Pan With Geberit Duofix 0.82 Alpha Wc Frame Red Gold Flush Plate Acoustic Mat 458.033.00.2 + 115.055.QA.1 + 1211-11

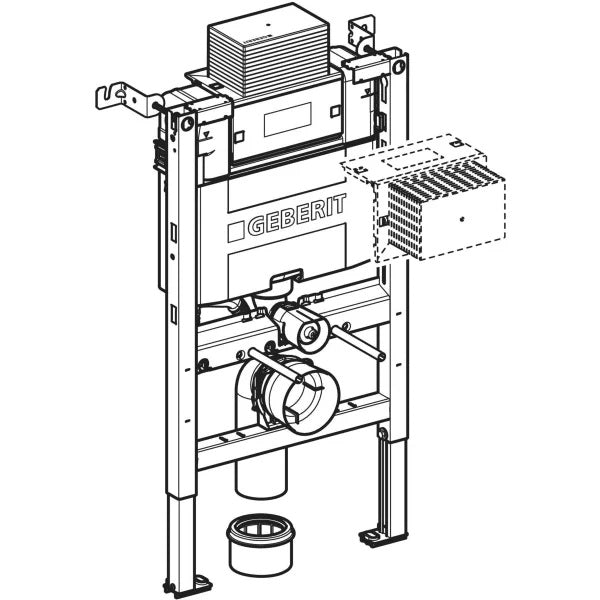

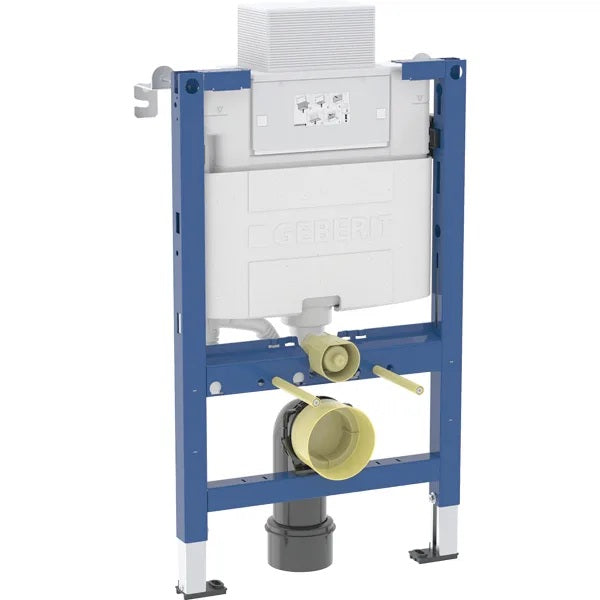

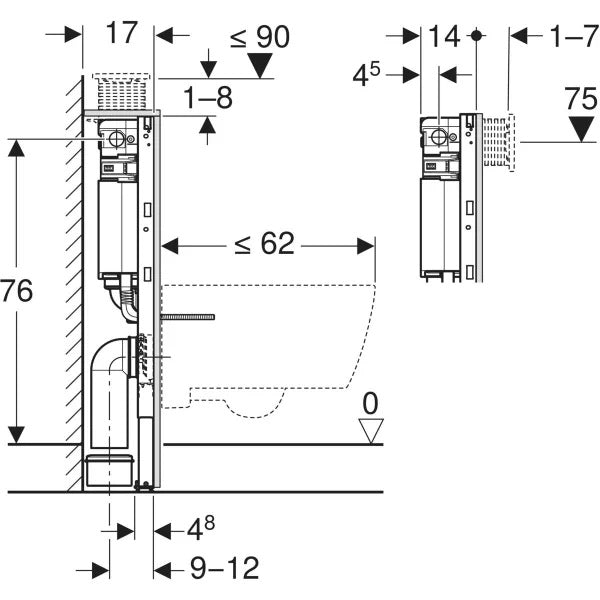

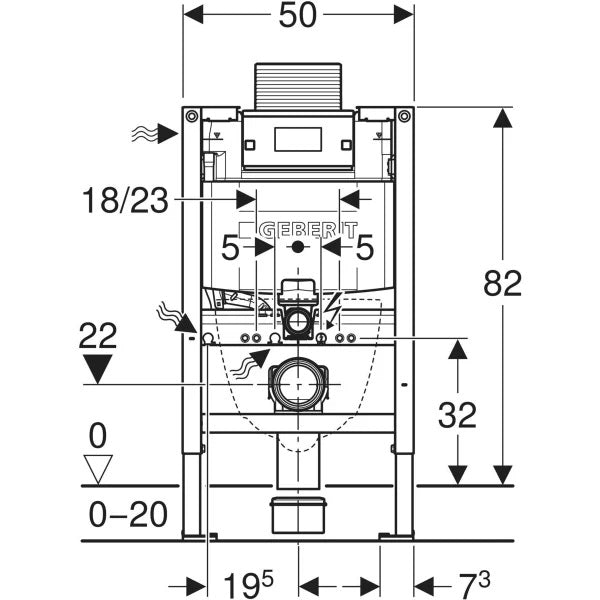

Geberit Duofix Alpha Wc Frame 820mm Concealed Cistern with Brackets

Technical data

·         Flow pressure: 0.1-10 bar

·         Operating temperature, water max: 25 °C

·         Flush volume, factory setting: 5.8 / 3 l

·         Flush volume small, adjustment range: 3–4 l

Application purposes

·         For metal and woods frame walls

·         For installation in part or room height prewalls

·         For installation in room height partition walls

·         For floor construction 0-20cm

·         For wall hung wc

Characteristics

·         Statically self-supporting frame, protected against corrosion with powder coating

·         Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

·         Alternative fastening point for wall anchors

·         Foot plates made of plastic

·         Foot plate depth suitable for installation in U-profiles UW 50

·         Frame with ø 9 mm drilling holes for fastening in wood frame construction

·         Galvanised leg supports protected against corrosion

·         Connection bend can be mounted without tools

·         Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·         Cistern fulfils standard requirements in accordance with EN 14055, Class II

·         For front and top actuation, suitable for dual flush

·         Immediate post flush possible with factory setting

·         Water supply connection on the left

·         Protection box for service opening, can be cut to length, protects against moisture and dirt

·         With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

·         Fastening option for electrical connection

Scope of delivery

·         Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

·         Protection box for service opening

·         2 wall anchors

·         Connection set for WC, ø 90 mm

·         Connection bend 90° made of PE-HD, ø 90 mm

·         Adaptor socket made of PE-HD, ø 90 / 110 mm

·         Fastening and protection material

·         Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm

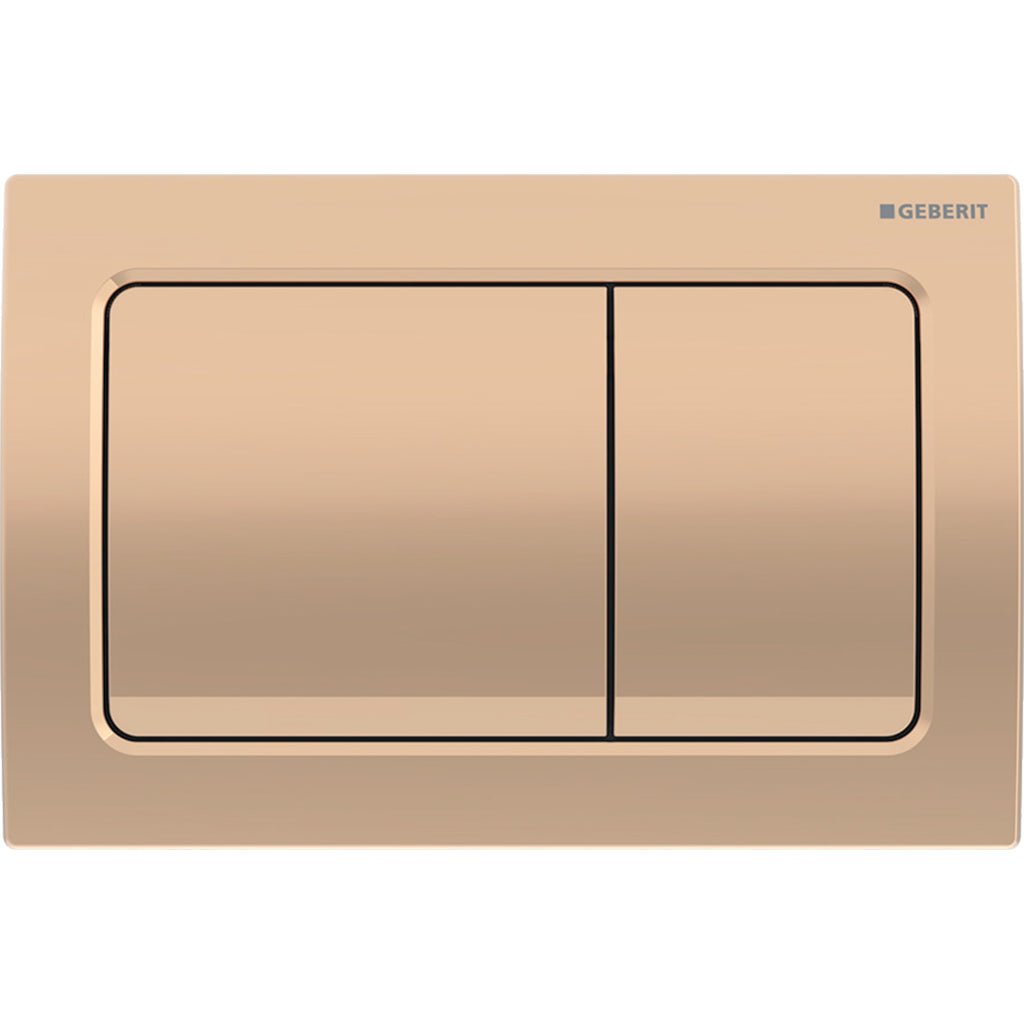

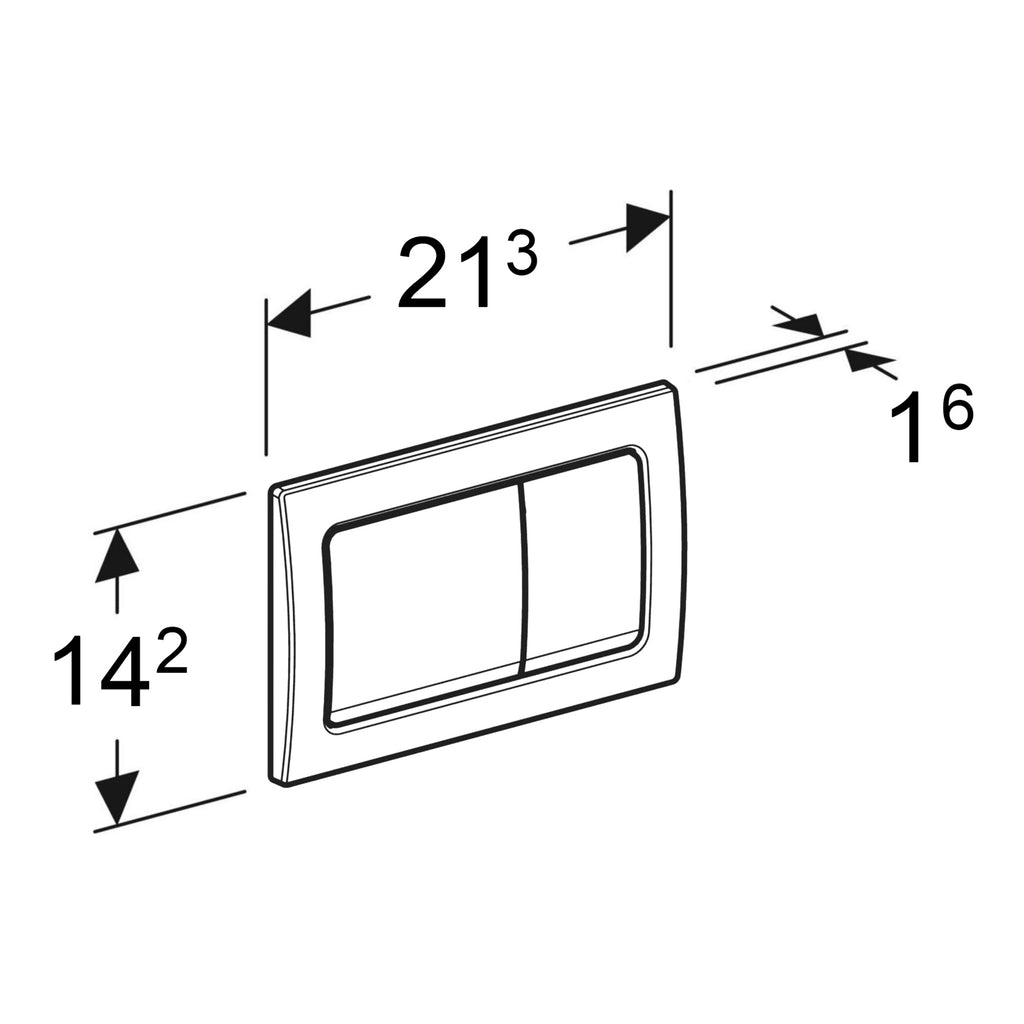

Geberit Alpha flush plate

·       Actuation force max – 20 N

·       Button shape – square

·       For flush actuation with Alpha concealed cisterns ONLY

·       Top/front actuation

·       2 actuator rods

·       Fastening material

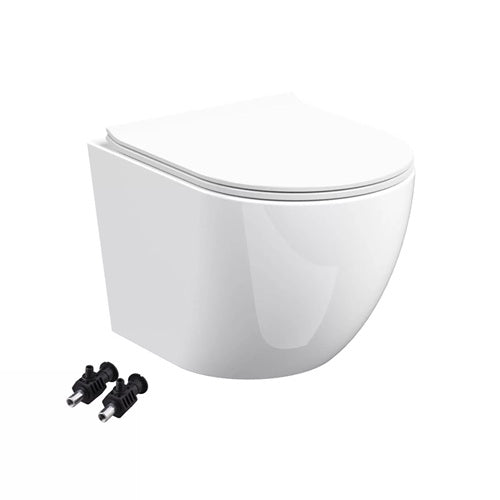

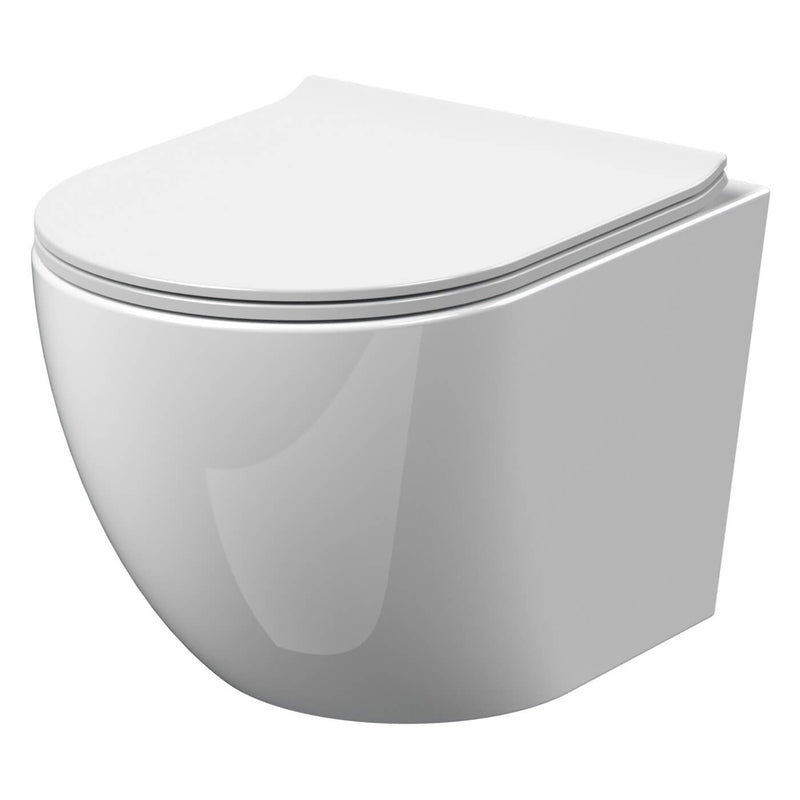

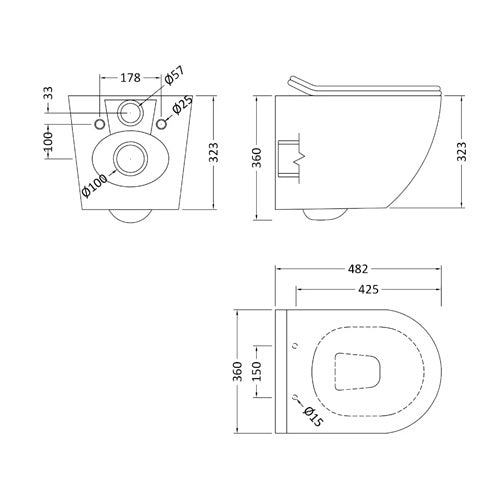

Anas Wall Hung Rimless Toilet Pan & Soft Close Seat

·        The toilet pan Includes a quick-release soft close seat

·        Beautifully designed and produced to the highest standards

·        Manufactured from high-grade ceramic

·        Wall Hung toilet pan designed to maximize available space

·        It comes in an attractive white finish for universal appeal

·        Extremely easy to install and use

·        Toilet seat supplied with two years of guarantees from the. manufacturer

·        Supplied with a 25-year guarantee for total peace of mind for the ceramic

·        Toilet seat two years warranty

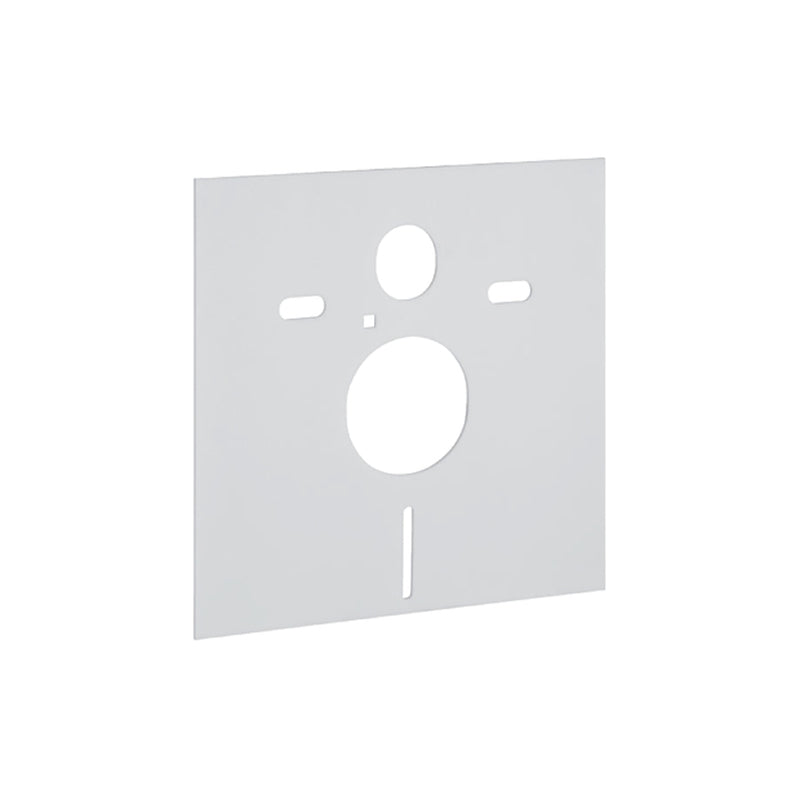

·        Projection 482mm – Acoustic mat included
