Description

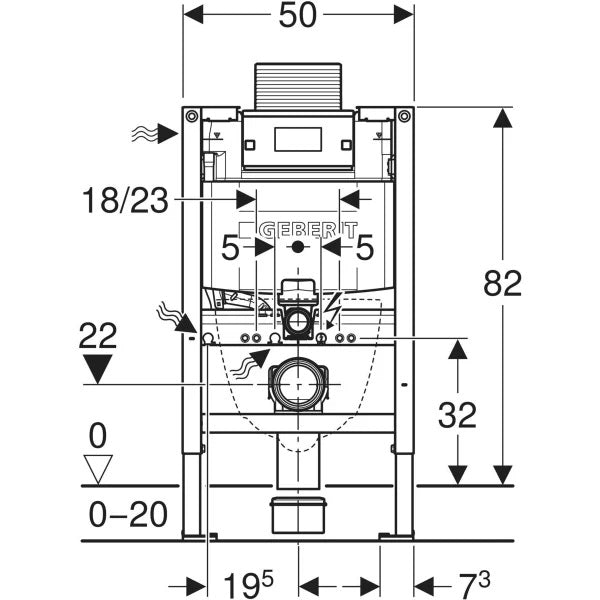

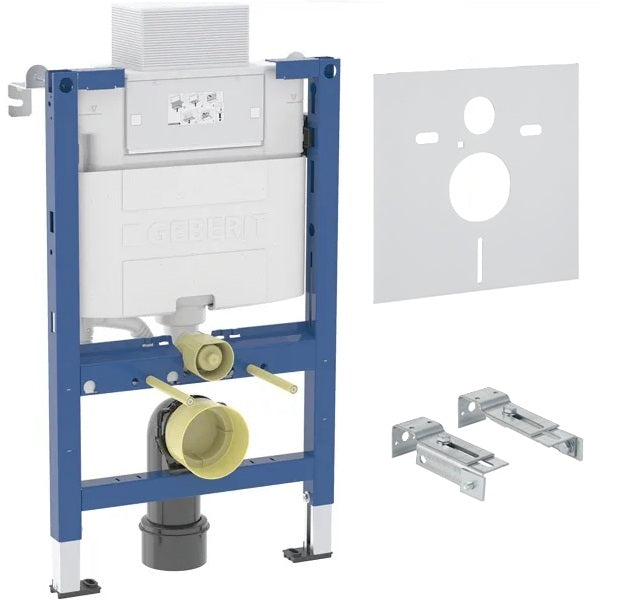

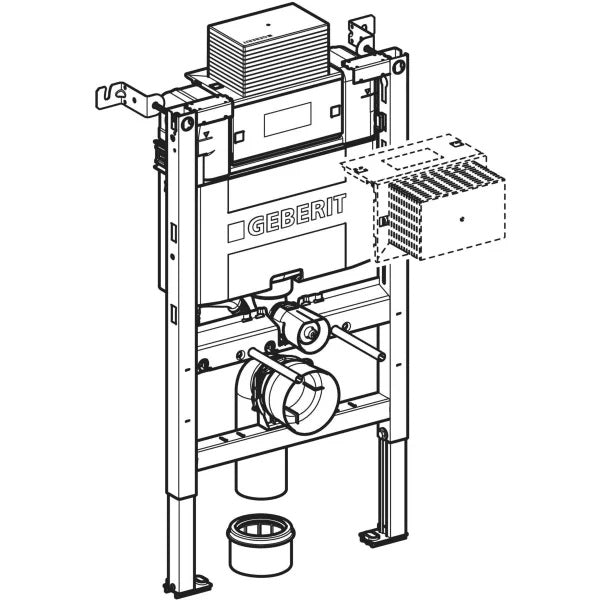

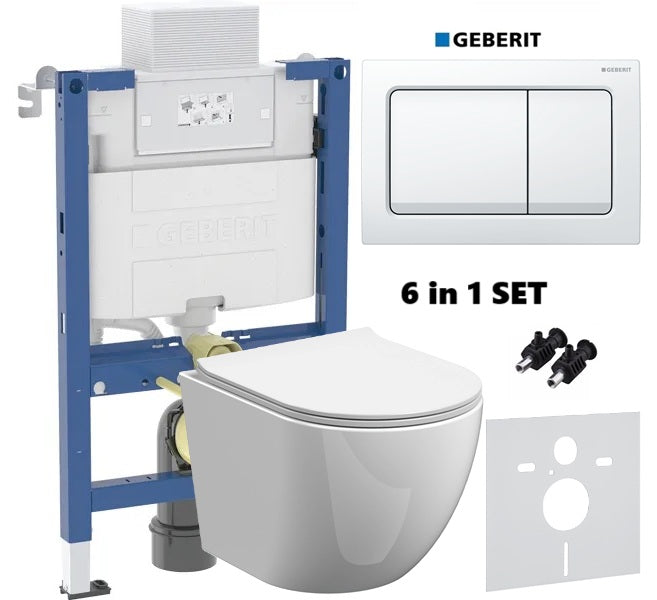

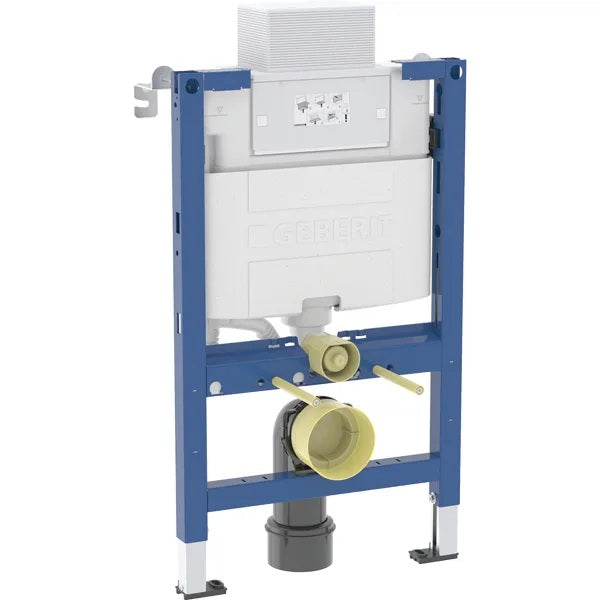

Geberit Duofix Alpha Wc Frame 820mm
Concealed Cistern with Brackets
Technical data
· Flow
pressure: 0.1-10 bar
· Operating
temperature, water max: 25 °C
· Flush
volume, factory setting: 5.8 / 3 l
· Flush
volume small, adjustment range: 3–4 l
Application purposes
· For
metal and woods frame walls
· For
installation in part or room height prewalls
· For
installation in room height partition walls
· For
floor construction 0-20cm
· For
wall hung wc
Characteristics
· Statically
self-supporting frame, protected against corrosion with powder coating
· Frame

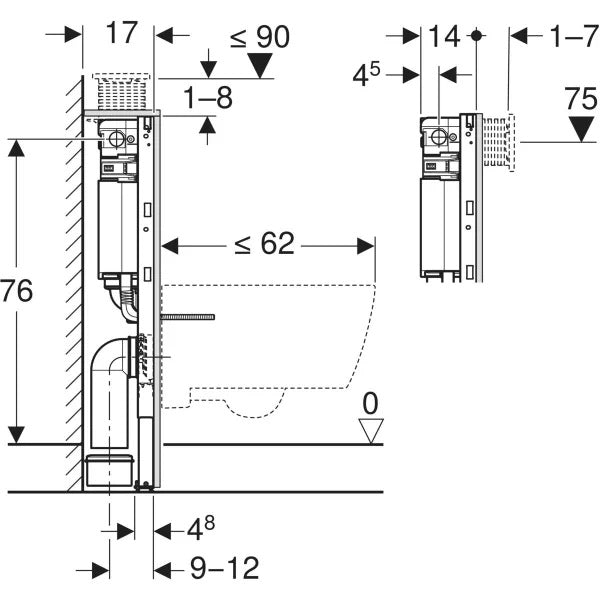

for wall-hung WCs with connection dimensions as per EN 33 and projection up to
62 cm
· Alternative
fastening point for wall anchors
· Foot
plates made of plastic
· Foot
plate depth suitable for installation in U-profiles UW 50
· Frame
with ø 9 mm drilling holes
for fastening in wood frame construction
· Galvanised
leg supports protected against corrosion
· Connection
bend can be mounted without tools
· Geberit
Alpha concealed cistern 12 cm fully insulated against condensation
· Cistern
fulfils standard requirements in accordance with EN 14055, Class II
· For
front and top actuation, suitable for dual flush
· Immediate
post flush possible with factory setting
· Water
supply connection on the left
· Protection
box for service opening, can be cut to length, protects against moisture and
dirt
· With
conduit pipe for feed pipe for Geberit AquaClean shower toilets and for
connection cable
· Fastening
option for electrical connection
Scope of delivery
· Water
supply connection unit R 1/2", compatible with MasterFix and MeplaFix,
with integrated angle stop valve and adapter ring
· Protection
box for service opening
· 2 wall anchors
· Connection
set for WC, ø 90 mm
· Connection
bend 90° made of PE-HD, ø 90 mm
· Adaptor
socket made of PE-HD, ø 90 / 110 mm
· Fastening
and protection material
· Geberit
pull disc for Type 212 flush valve for Omega concealed cistern 82 cm

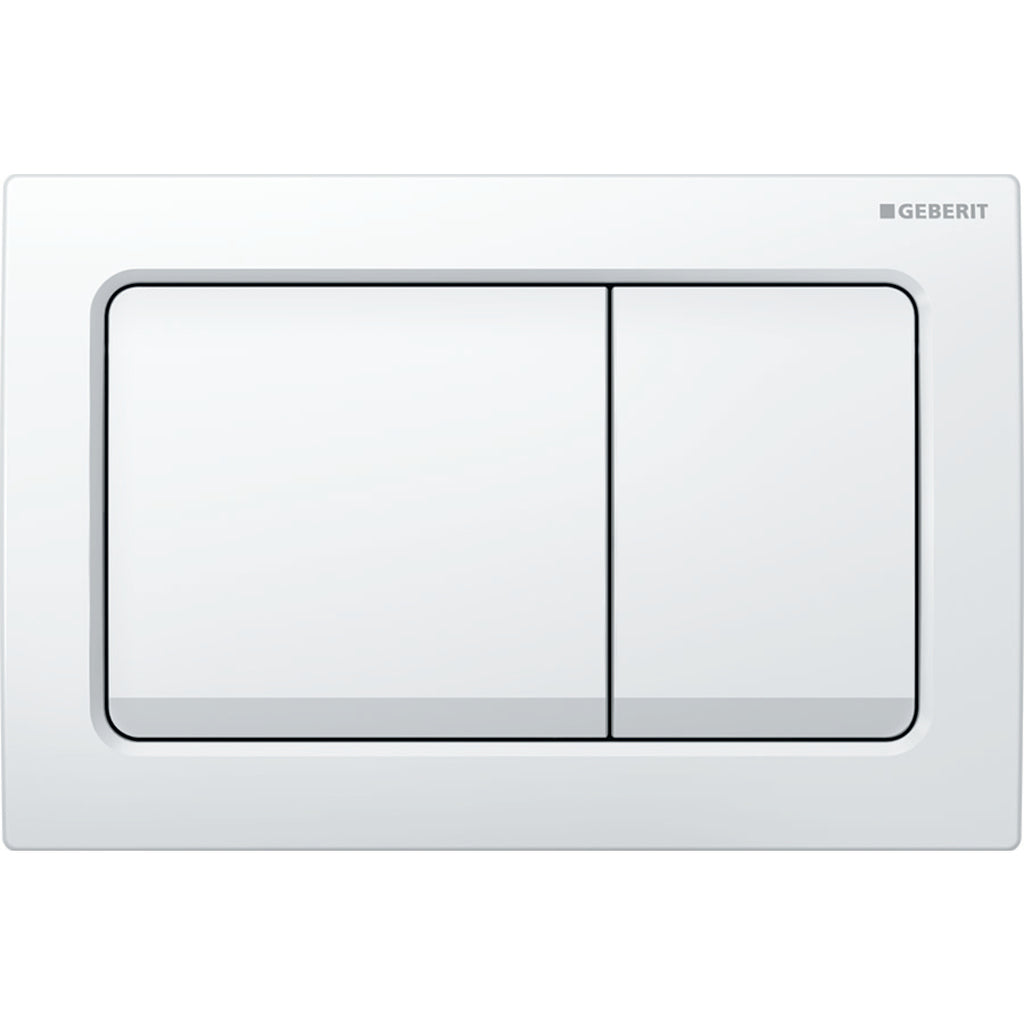

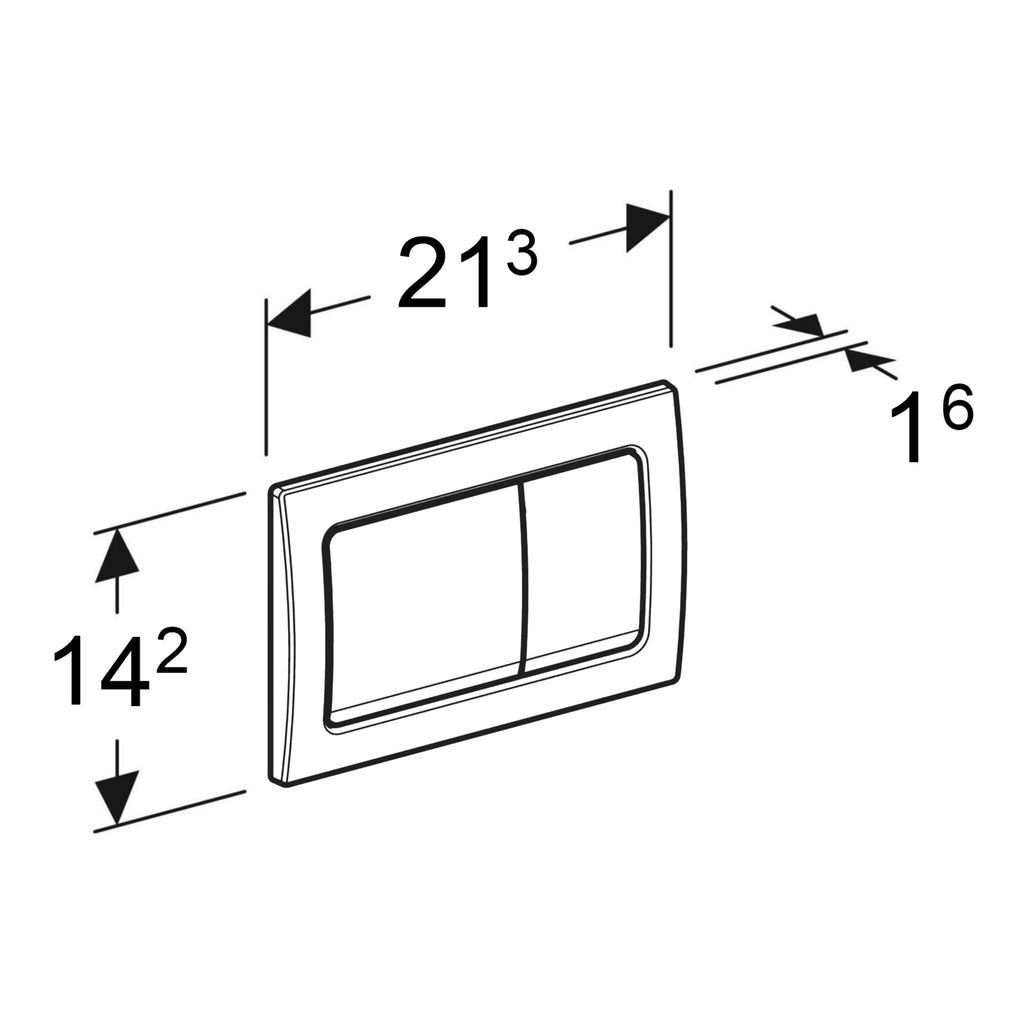

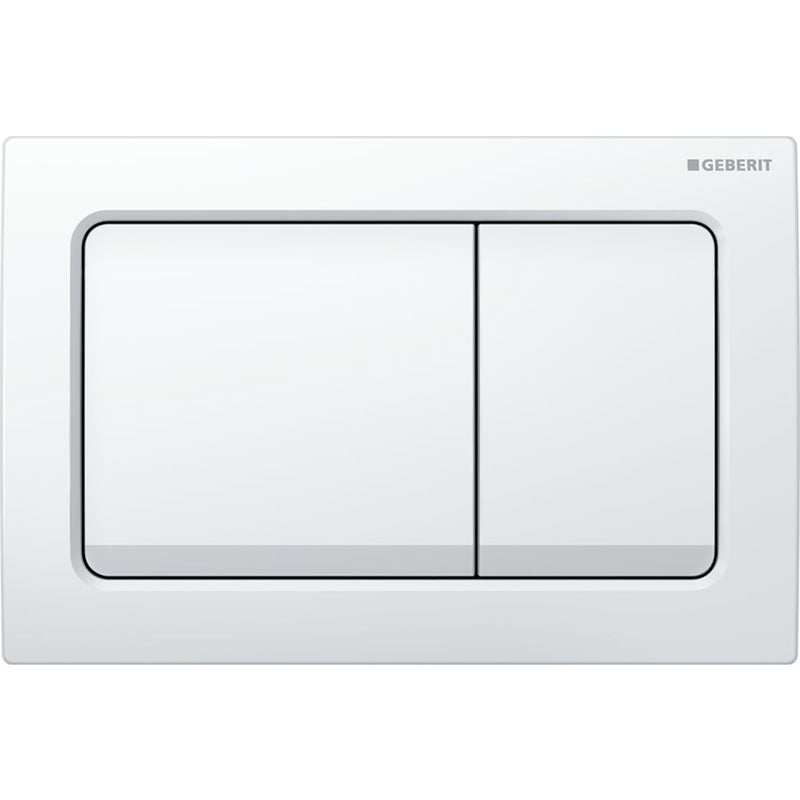

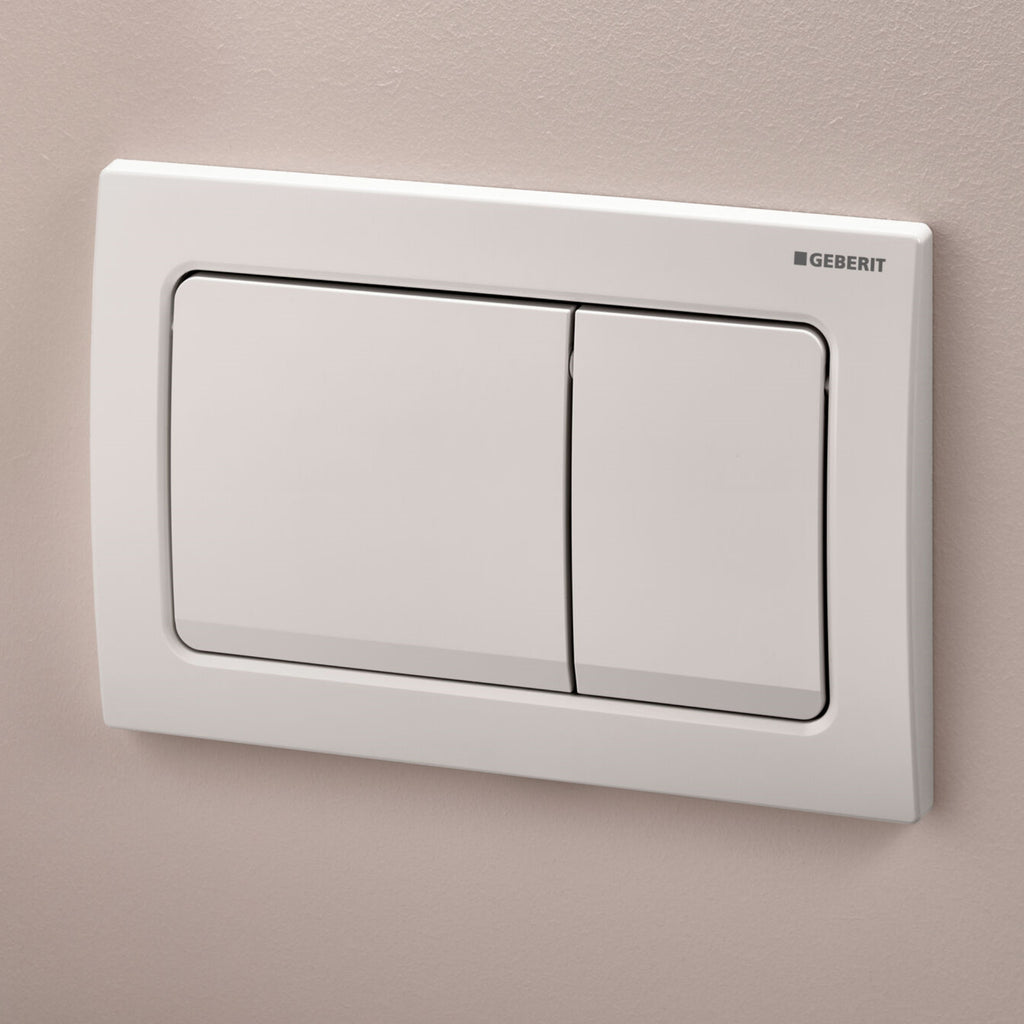

Geberit Alpha flush plate
· Actuation force
max – 20 N
· Button shape – square
· For flush
actuation with Alpha concealed cisterns ONLY
· Top/front
actuation
· 2 actuator rods
· Fastening
material

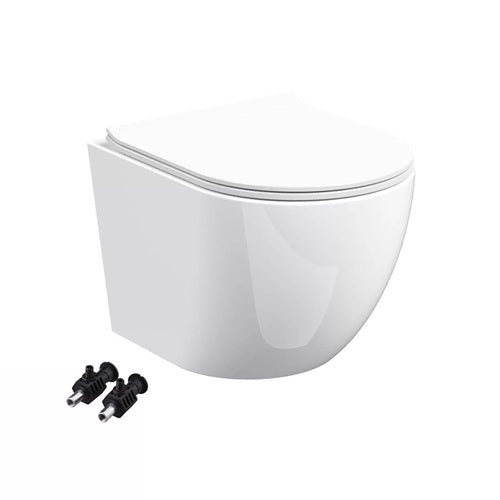

Anas Wall Hung Rimless Toilet Pan & Soft Close Seat
· The toilet
pan Includes a quick-release soft close seat
· Beautifully
designed and produced to the highest standards
· Manufactured
from high-grade ceramic
· Wall Hung
toilet pan designed to maximize available space
· It comes in
an attractive white finish for universal appeal
· Extremely
easy to install and use
· Toilet seat
supplied with two years of guarantees from the. manufacturer
· Supplied
with a 25-year guarantee for total peace of mind for the ceramic
· Toilet seat
two years warranty

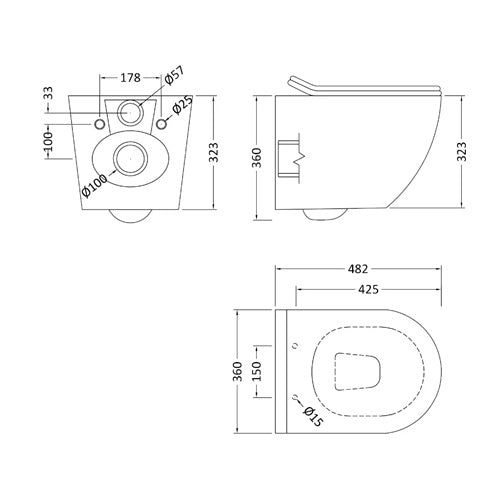

· Projection

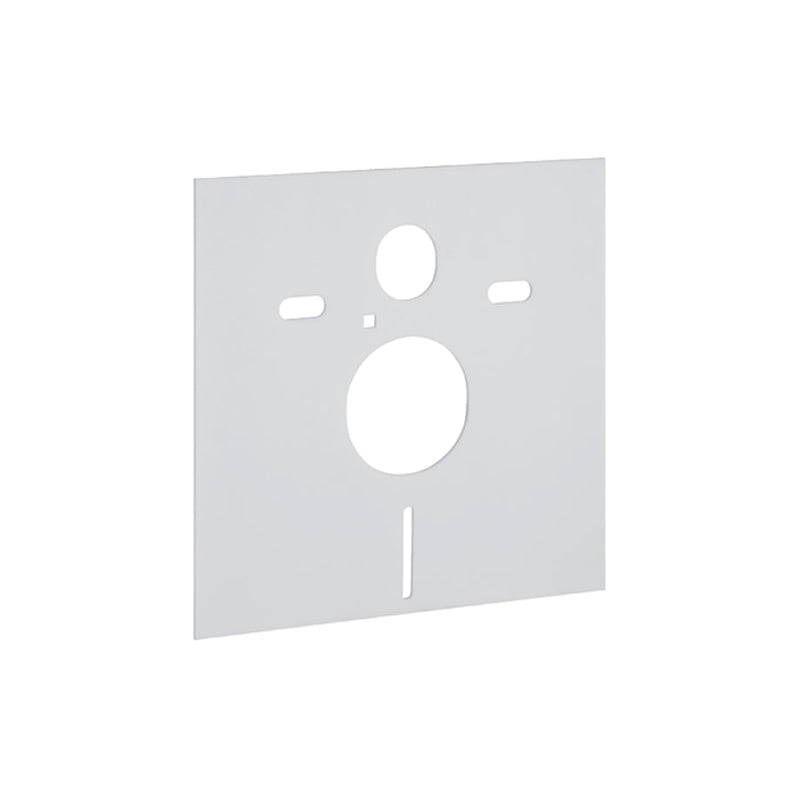

482mm – Acoustic mat included
