Description

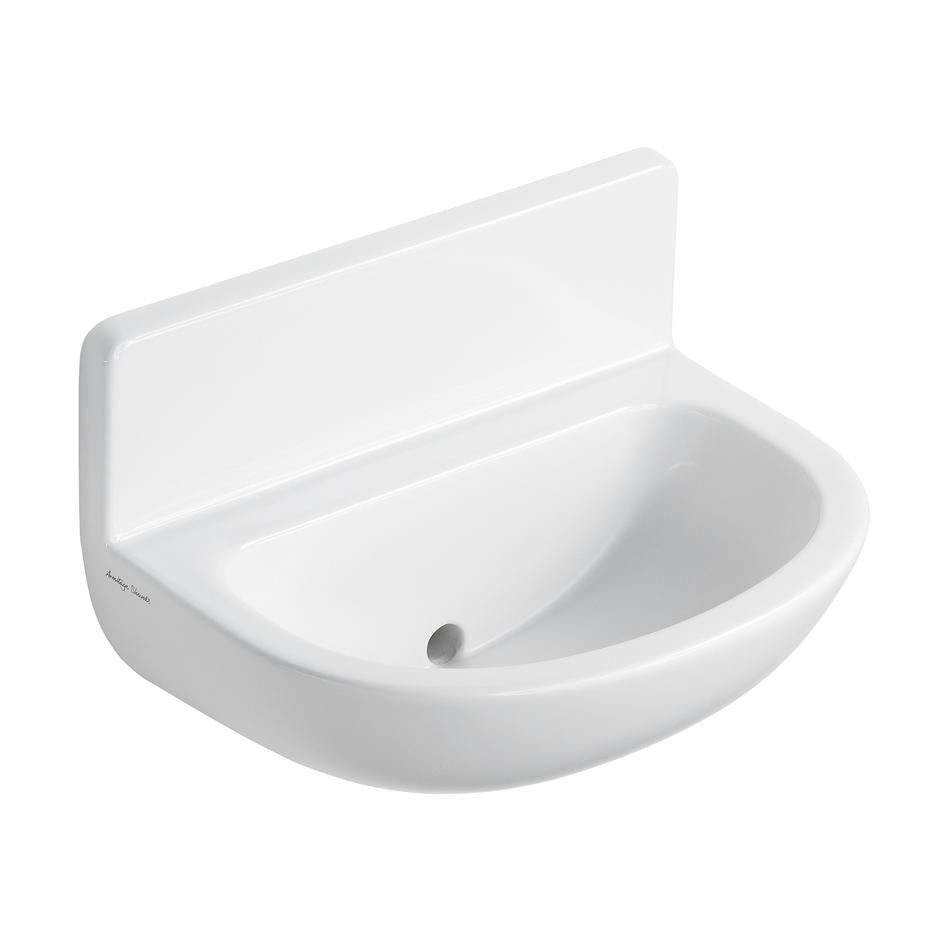

Armitage Shanks Contour 21 500mm Washbasin 0 Tap Holes S214401
LB H M hospital pattern basin, with 150mm upstand and integral back outlet, for connection to concealed services with concealed fixings, no tapholes, no overflow, no chain hole, no plug. This new basin is a welcome addition to the highly successful Contour 21 clinical basin series from Armitage Shanks. The addition of an integral upstand moves the silicone joint away from the back of the basin and helps to retain splashing within the basin itself. The projection of the basin has been reduced to 35cm to allow the basin to be used where space is tight. Moving the silicone joint away from the wet area also improves hygiene.
- Medium Hospital pattern basin
- Washing under running water
- Fully concealed services
- Hygenic Integral splashback
- 35cm reduced projection
- Taps and waste are not included

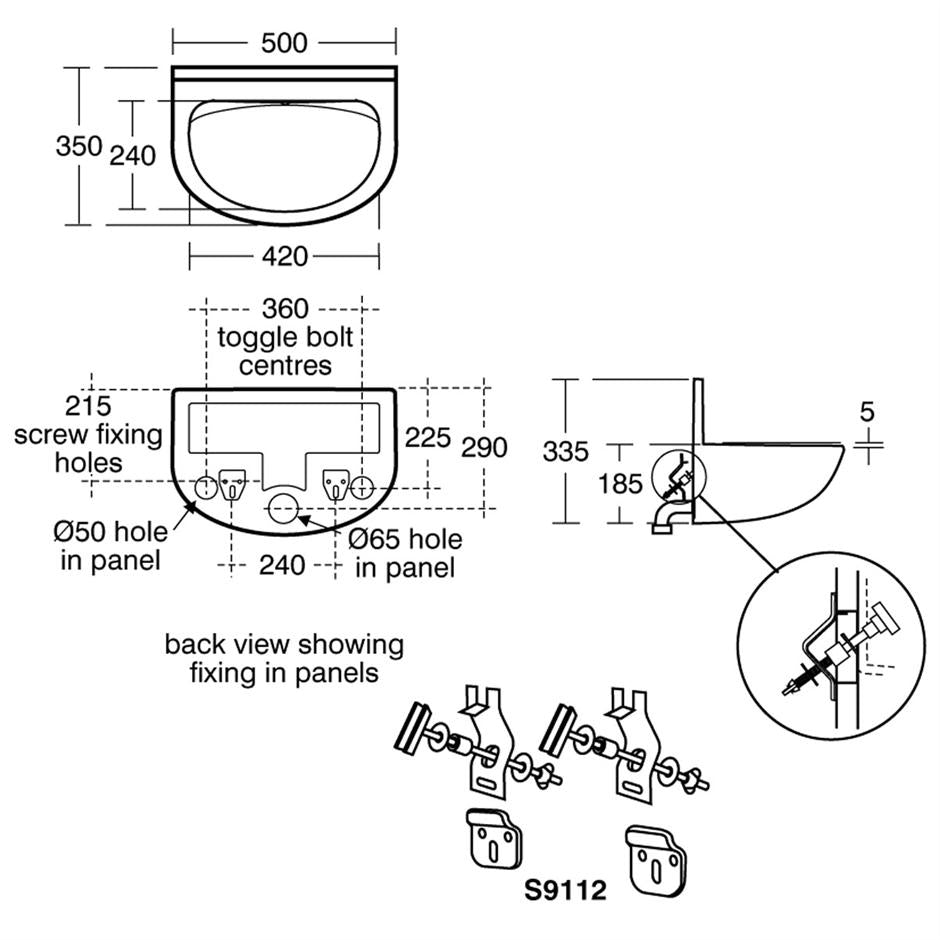

Toggle bolts and outlet adaptor suitable for maximum panel thickness of 18mm. For use in connection with washing associated with clinical procedures. Suggested rim height 780-800mm. Washbasin wall mounted using S9112 hangers with additional toggle bolt and clips when panel mounted. Suitable for dedicated wall mounted taps will need to be positioned sufficiently above the upstand to a maximum of 200mm from base of outlet to lip of washbasin.
