Geberit Alpha Concealed Cistern 12cm5.8 /3litres Height 82cm For Back To Wall Toilet 109.002.00.1

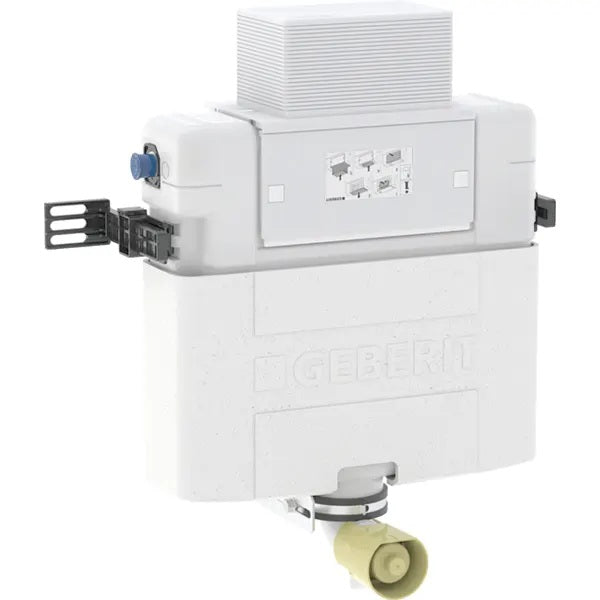

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm

Technical data

·       Flow pressure: 0.1–10 bar

·       Operating temperature, water max.: 25 °C

·       Flush volume, factory setting: 5.8 / 3 l

·       Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l

·       Flush volume small, adjustment range: 2–4 l

·       Product material: Plastic

Application purposes

·       For masonry walls

·       For installation in part-height prewall installations

·       For floor-standing and wall-hung WCs

Characteristics

·       Adjustable in depth

·       Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·       For top or front actuation, suitable for dual flush

·       Immediate post flush possible with factory setting

·       Cistern fulfils standard requirements in accordance with EN 14055, Class II

·       Welded flush bend

·       Water supply connection on the left or rear left

·       Protection box for service opening, can be cut to length, protects against moisture and dirt

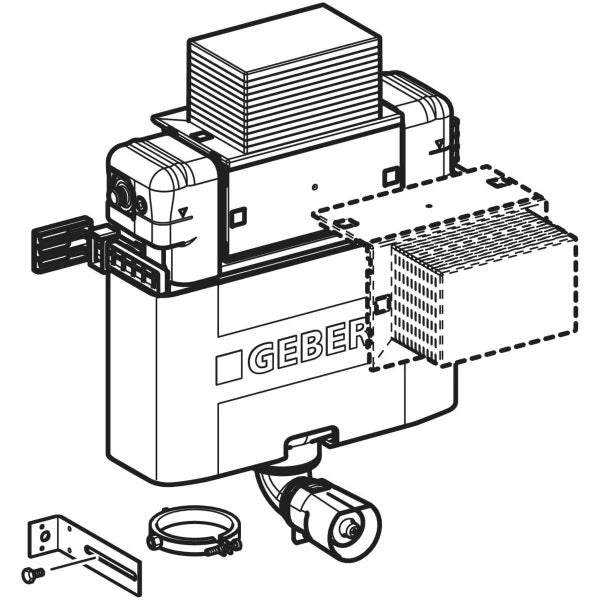

Scope of delivery

·       Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

·       Protection box for service opening

·       Flush bend extension, ø 45 mm

·       Fastening for flush bend

·       2 fixing brackets

·       Fastening and protection material

·       Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm
