Description

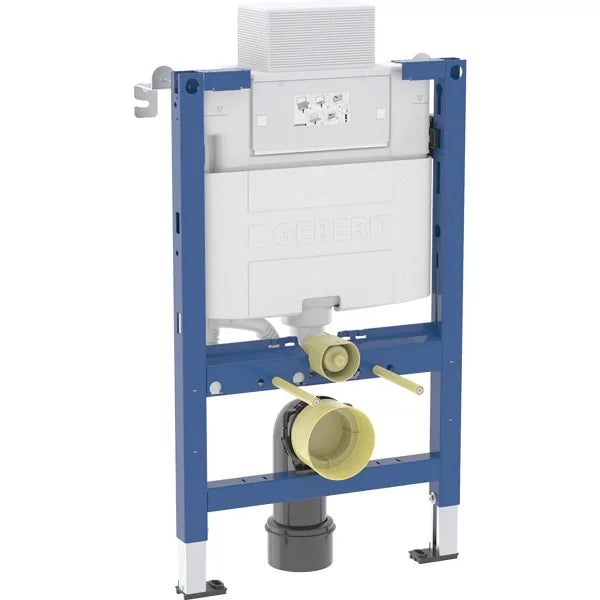

Geberit Duofix Alpha Wc Frame 820mm Concealed
Cistern with Brackets
Technical
data
·
Flow pressure: 0.1-10 bar
·
Operating temperature, water max: 25 °C
·
Flush volume, factory setting: 5.8 / 3 l
·
Flush volume small, adjustment range: 3–4 l
Application
purposes
·
For metal and woods frame walls
·
For installation in part or room height prewalls
·
For installation in room height partition walls
·
For floor construction 0-20cm
·
For wall hung wc
Characteristics
·
Statically self-supporting frame, protected
against corrosion with powder coating
·

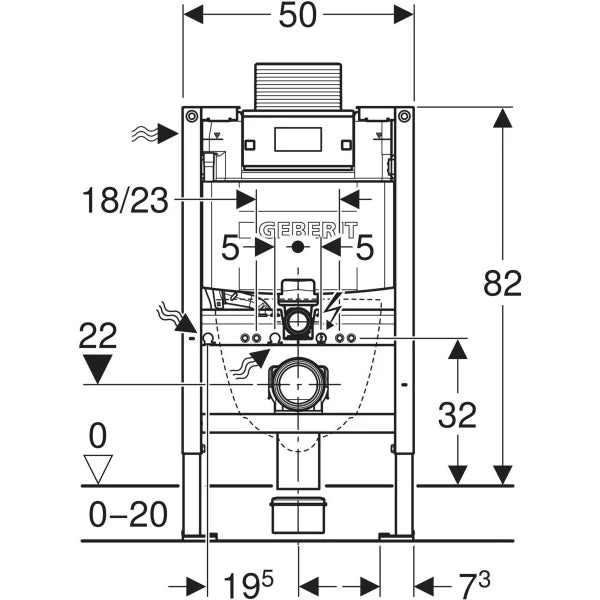

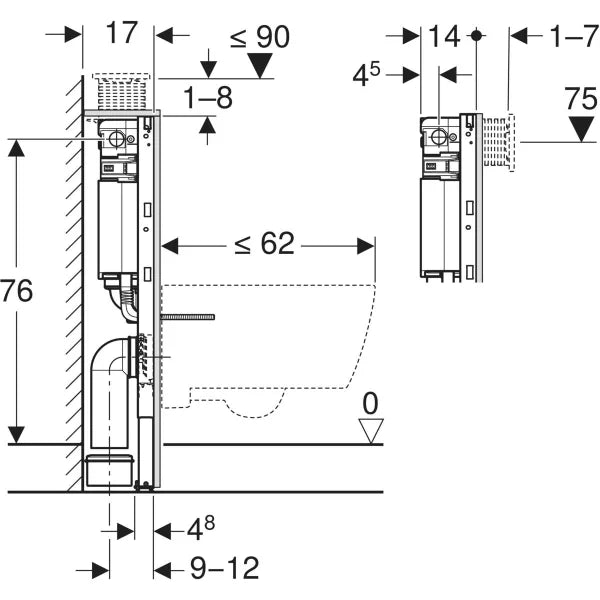

Frame for wall-hung WCs with connection
dimensions as per EN 33 and projection up to 62 cm
·
Alternative fastening point for wall anchors
·
Foot plates made of plastic
·
Foot plate depth suitable for installation in
U-profiles UW 50
·
Frame with ø 9
mm drilling holes for fastening in wood frame construction
·
Galvanised leg supports protected against
corrosion
·
Connection bend can be mounted without tools
·
Geberit Alpha concealed cistern 12 cm fully
insulated against condensation
·
Cistern fulfils standard requirements in
accordance with EN 14055, Class II
·
For front and top actuation, suitable for dual
flush
·
Immediate post flush possible with factory
setting
·
Water supply connection on the left
·

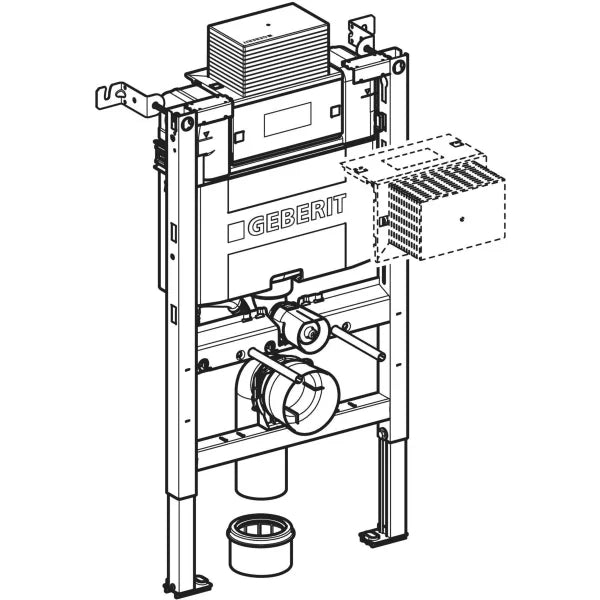

Protection box for service opening, can be cut
to length, protects against moisture and dirt
·
With conduit pipe for feed pipe for Geberit
AquaClean shower toilets and for connection cable
·
Fastening option for electrical connection
Scope of
delivery
·
Water supply connection unit R 1/2",
compatible with MasterFix and MeplaFix, with integrated angle stop valve and
adapter ring
·
Protection box for service opening
·
2 wall
anchors
·
Connection set for WC, ø 90 mm
·
Connection bend 90° made of PE-HD, ø 90 mm
·
Adaptor socket made of PE-HD, ø 90 / 110 mm
·
Fastening and protection material
·
