Description

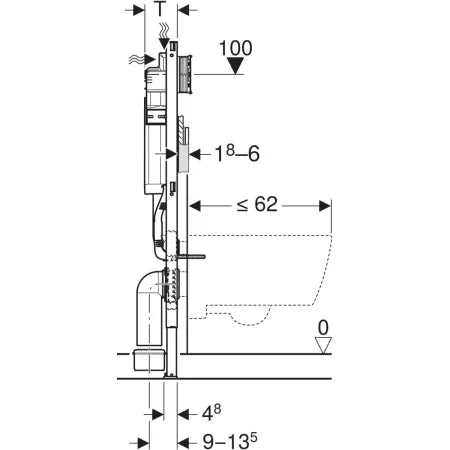

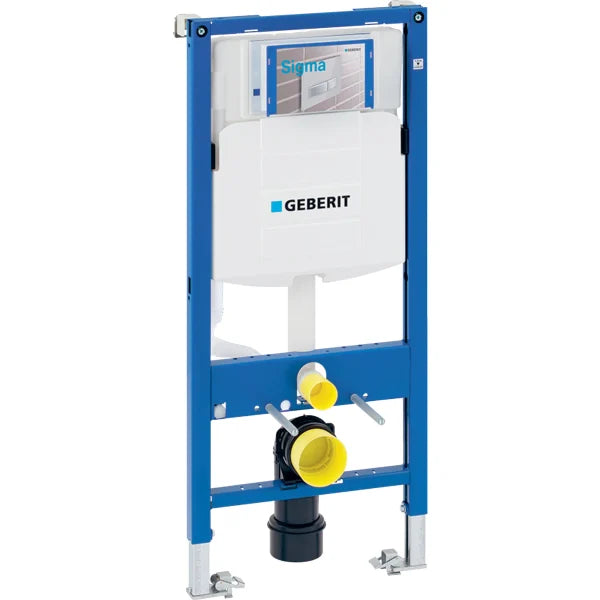

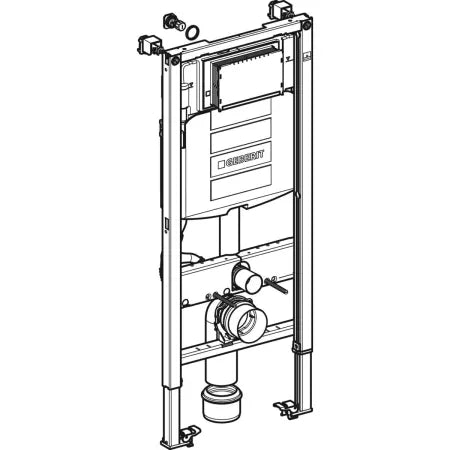

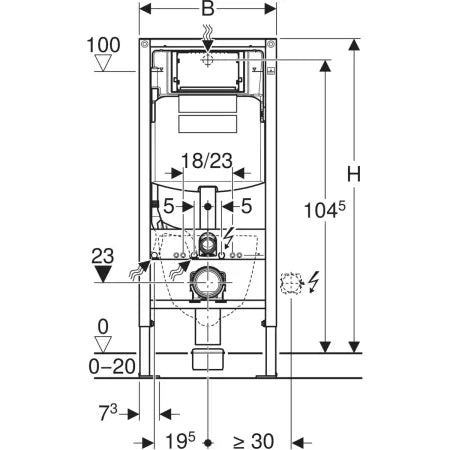

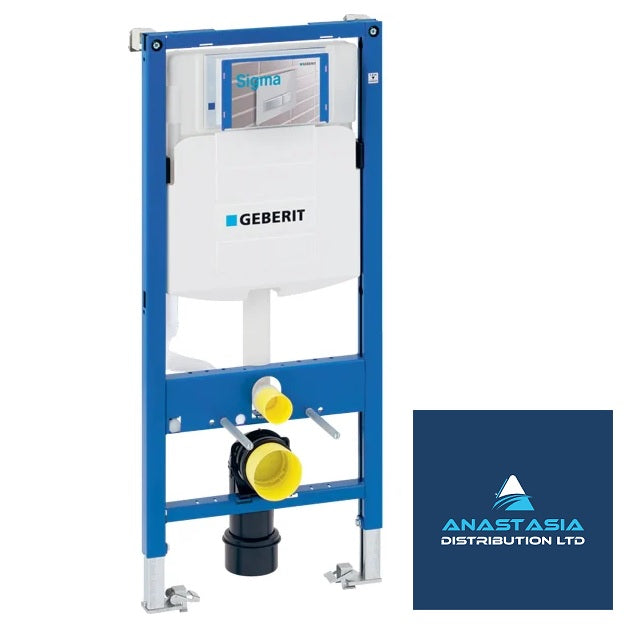

GEBERIT DUOFIX FRAME FOR WALL-HUNG WC 112 CM WITH SIGMA CONCEALED CISTERN 12 CM
PRODUCT DESCRIPTION:
-
Flow pressure 0.1-10 bar
-
Maximum operating temperature, water 25 °C
-
Flush volume, factory setting 5.8 and 3 l
-
Flush volume small, adjustment range 2-4 l
-
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchors
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- 2 protection plugs
- 2 threaded rods M12
- Fastening material
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- The flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low-volume flush
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Flush plate required
