GEBERIT DUOFIX UP320 SIGMA FRAME FOR CONCEALED CISTERN WALL HUNG WC - 112CM HIGH

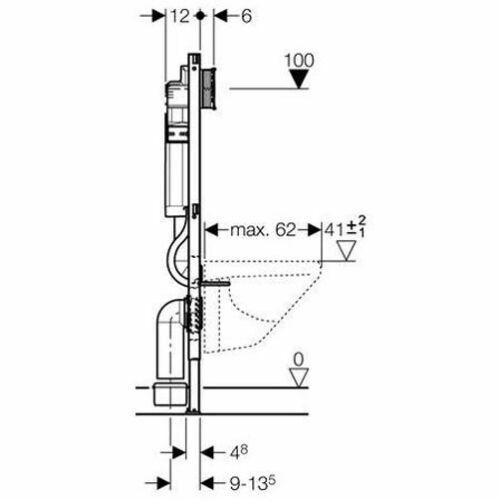

DIMENSIONS OF THE FRAME:

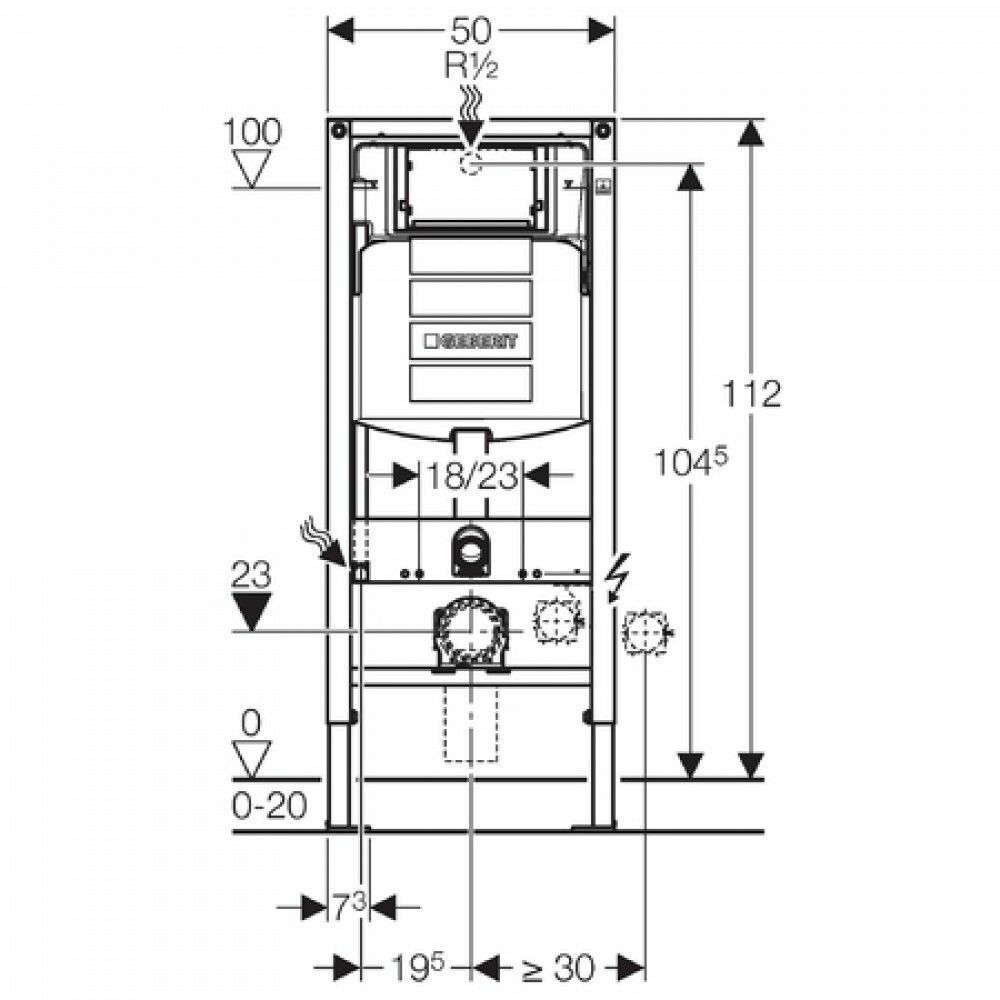

HEIGHT: 112cm, WIDTH: 50cm, DEPTH: 12cm

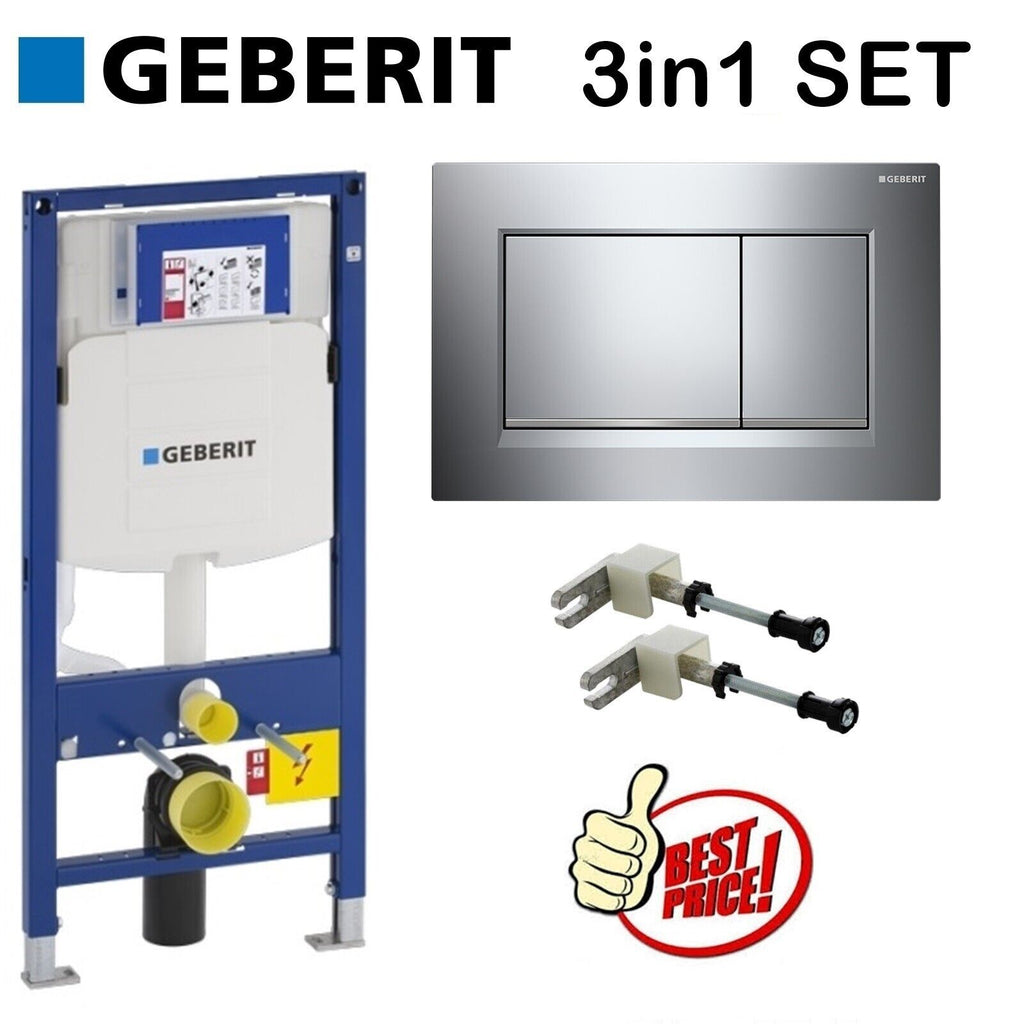

THE SET INCLUDES:

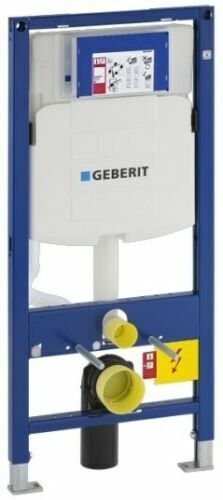

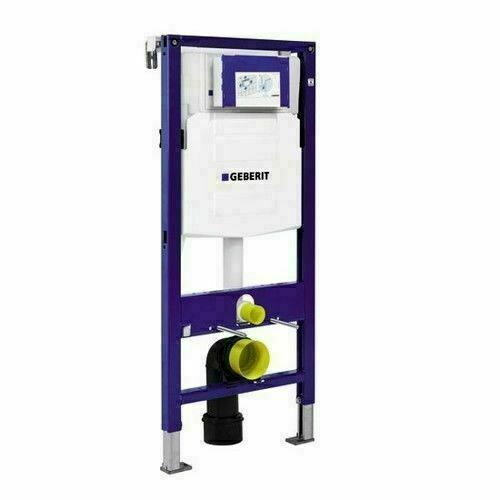

GEBERIT UP320 TOILET CISTERN FRAME

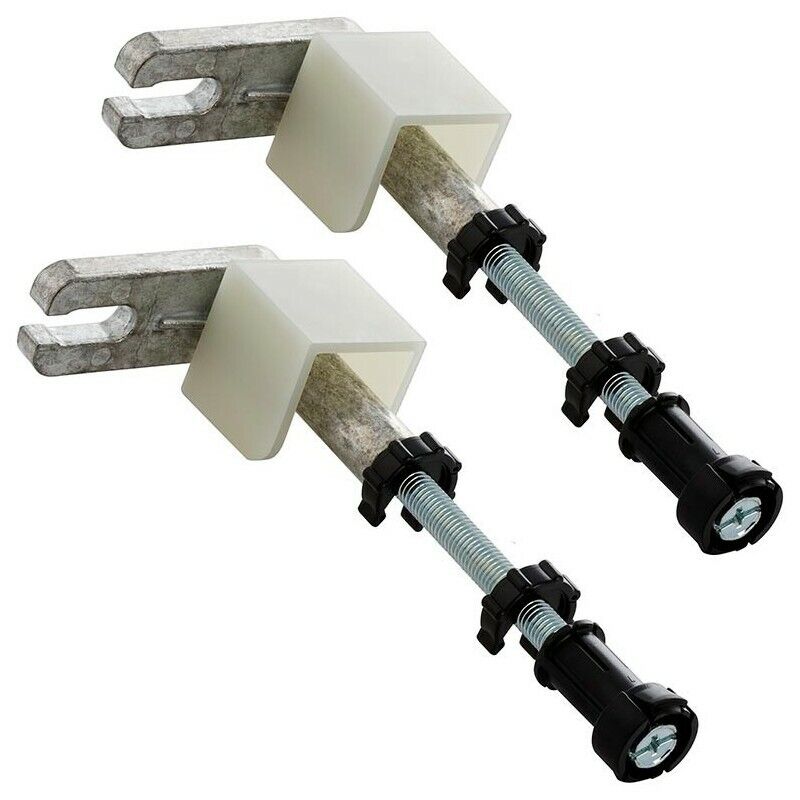

GEBERIT FIXING WALL BRACKETS (set of 2)

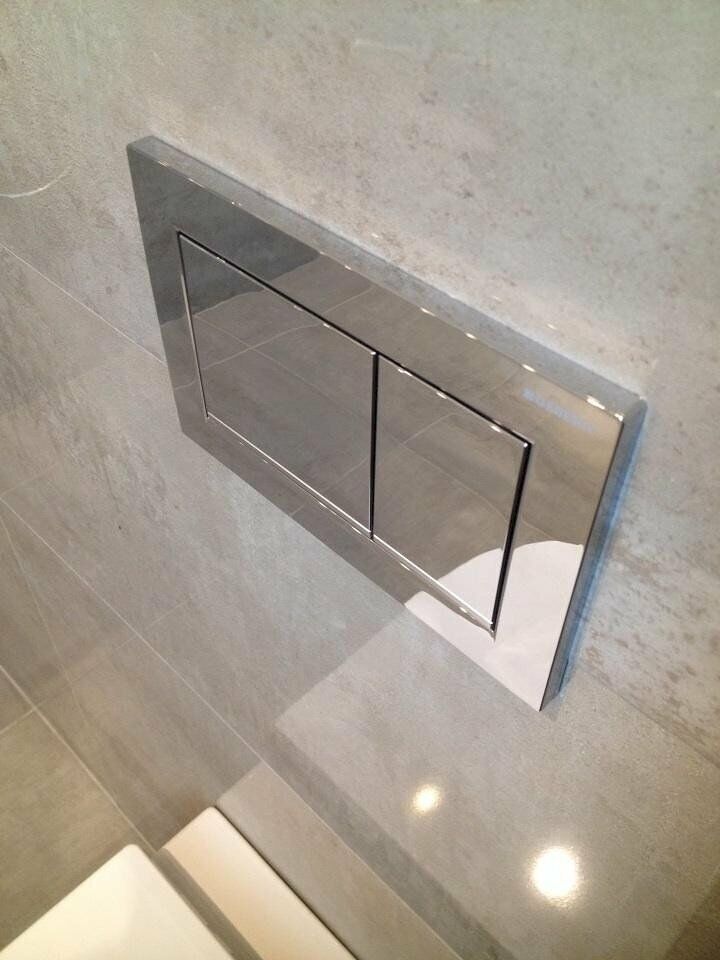

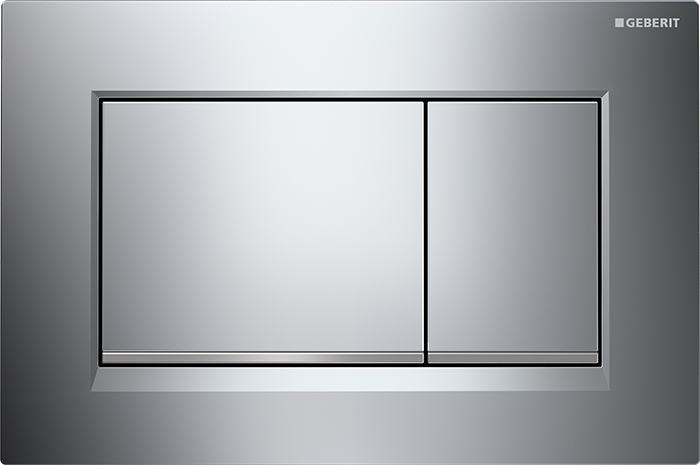

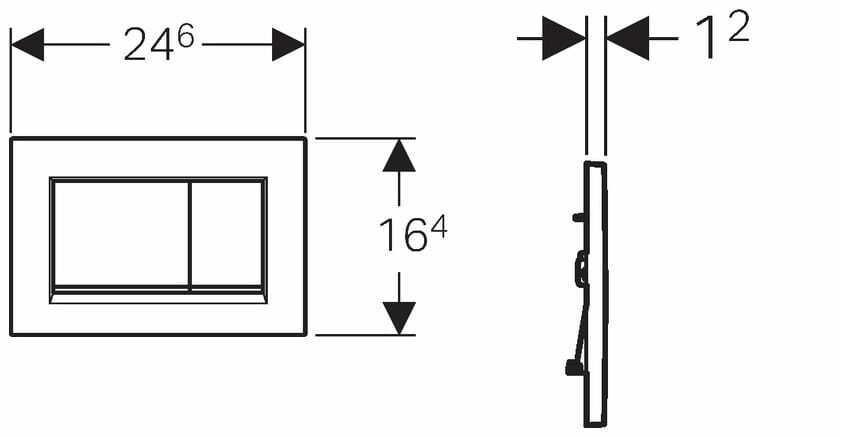

GEBERIT SIGMA 30 MATTCHROME/CHROME FLUSH PLATE
The Geberit Wall Hung Installation Frames
The Geberit Duofix frame system allows you to design and create the bathroom of your dreams.
Hidden behind walls and tiles, Geberit Duofix supports wall-hung sanitaryware and includes an integral cistern.
The result is a clean and modern finish with no visible pipework. The Geberit Duofix frame is the backbone of Geberit's bathroom system.
The sturdy metal frame has been designed to support wall-hung sanitaryware without the need for supporting walls.
Frames are available for toilet pans, hand washbasins, bidets and urinals.
The Geberit Duofix frame allows designers to create eye-catching new bathrooms from the bare minimum without expensive structural work.
Frames can be bolted to the floor and placed within or attached to walls. The frame system can be used in the tightest of spaces including corners, allowing designers the freedom to create stunning bathrooms without compromise
Features of this Frame

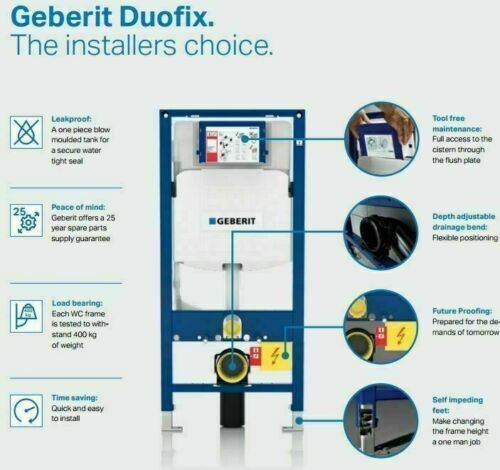

Concealed front-operated cistern complete with PreWall brackets
For use with front-mounted Rumba, Samba, Tango, Twist, Mambo or Bolero flush plates
Designed to withstand a heavy load of 400kg (64 stone)
Easy to clean
Accessibility at any time, the flush plate, the filling valve as well as the flush valve can be removed and easily replaced without tools
Dual flush saves water with buttons for 3 or 6 litres of water *
For installation of a wall-hung WC with bolt fixings set at 180 or 230 mm centres
For installation in a room-height Duofix system wall in front of a solid or drywall construction
For mounting in front of a solid or drywall construction
For a screed of 0 - 200 mm (not in room height applications)
For connecting Geberit AquaClean
Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.
Self-supporting
Frame with C profile 40/40 mm
Powder-coated frame, ultramarine blue
Galvanised leg supports, steplessly adjustable 0 - 200 mm
Feet can be retracted 5 cm
Rotating foot plate, for installation in UW50 and UW75 profiles
Frame with holes ø 9 mm for fastening in wood frame construction
Sound-absorbing actuator rods, tool-free, fast adjustment
Easy to clean coating on glass and metal
Concealed cistern fully insulated against condensation
Concealed cistern for tool-free mounting and maintenance
Frame height 1120 mm
With wall brackets to allow up to a 200 mm duct.
Tool-free fastening for outlet bend, sound-absorbing, adjustable in depth with 8 positions, adjustable range 45 mm
The connection hose to the angle stop valve can be screwed without tools
Water supply connection at centre back or at the top
Geberit Sigma concealed cistern 12 cm (UP320) with front actuation
The protection cover protects the service opening against moisture and dirt and can be mounted without tools and cut to length
Universal water supply connection compatible with MeplaFix can be mounted and operated without tools
Self-locking feet for tool-free alignment of the frame, (friction feet have to be locked with a spanner)
The flush valve features settings to enable either a 6l and 3l flush or a 4.5l and 3l flush.
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first.
