Description

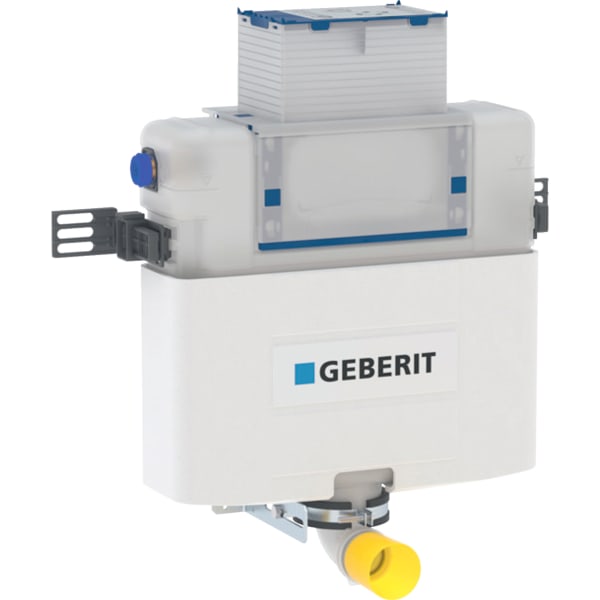

GEBERIT OMEGA CONCEALED CISTERN 12 CM, 6/3 LITRES, INSTALLATION HEIGHT 82 CM
PRODUCT DESCRIPTION:
-
Flow pressure 0.1-10 bar
-
Maximum operating temperature, water 25 °C
-
Flush volume, factory setting 5.8 and 3 l
-
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
-
Flush volume small, adjustment range 2-4 l
-
Calculated flow rate 0.11 l/s
-
Minimum flow pressure for calculated flow rate 0.5 bar

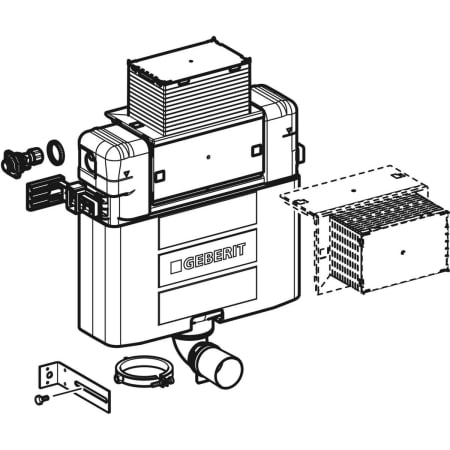

- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- Flush bend extension, ø 45 mm
- Fastening for flush bend
- Protection plug
- 2 fixing brackets
- Fastening material
- The flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
