Description

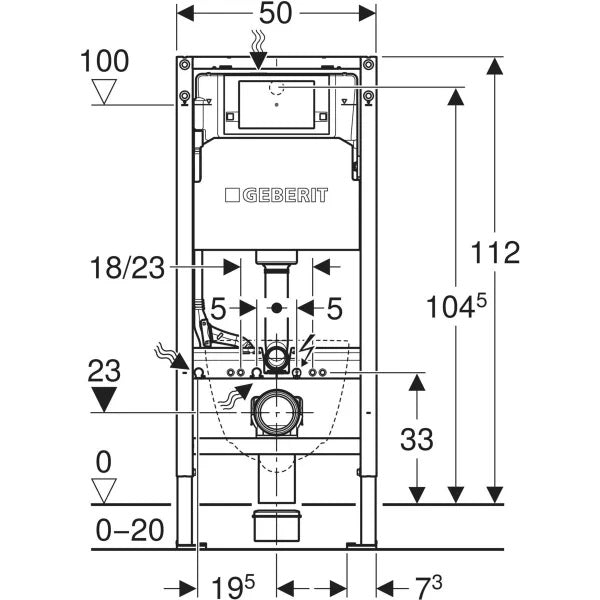

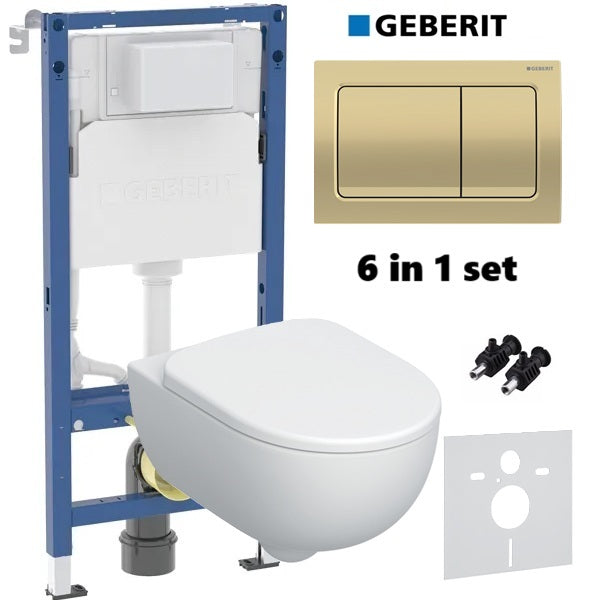

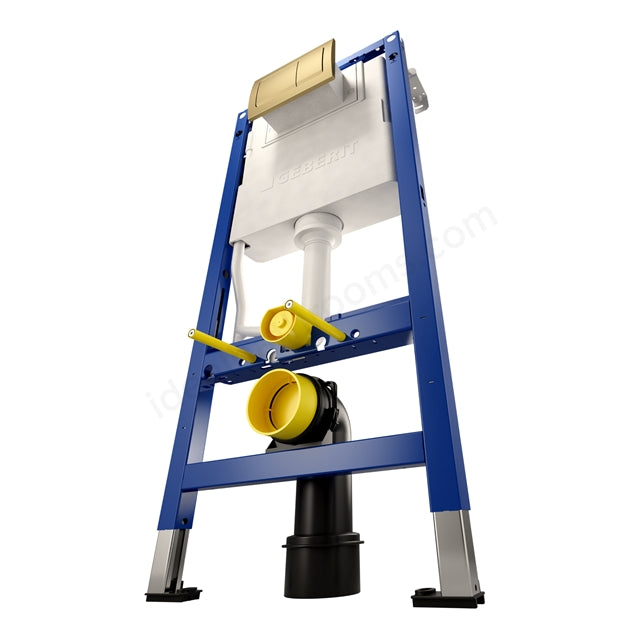

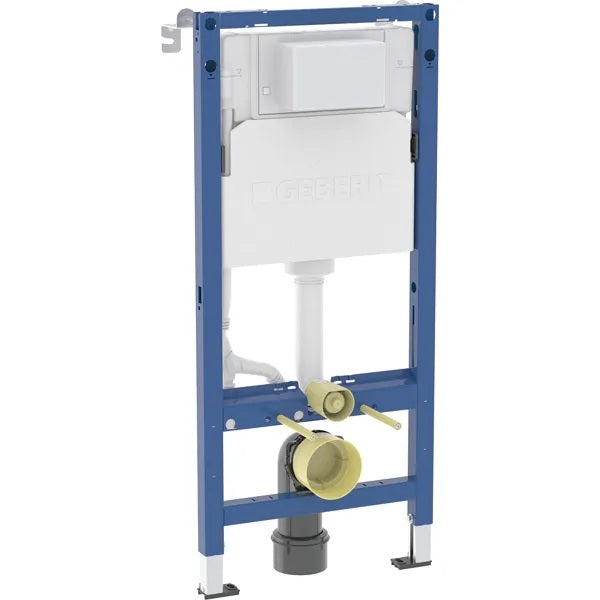

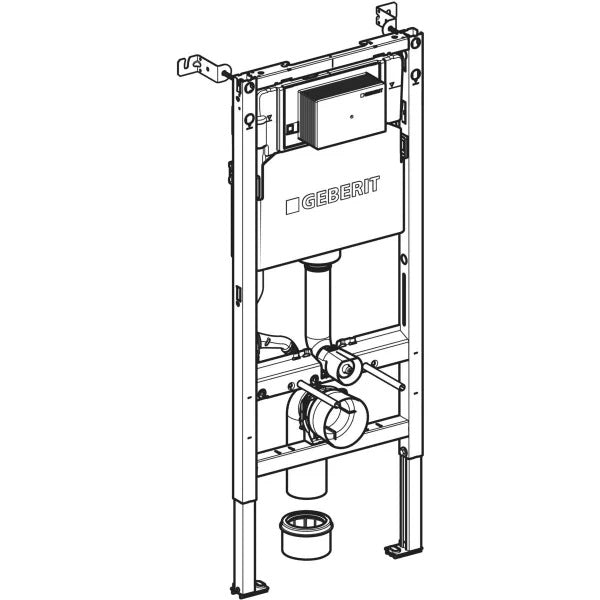

Geberit Alpha Wc Frame Concealed Cistern with Brackets
Technical data
· Flow pressure: 0.1-10 bar
· Operating temperature, water max: 25 °C
· Flush volume, factory setting: 5.8 / 3 l
· Flush volume small, adjustment range: 3–4 l
Application purposes
· For metal and woods frame walls
· For installation in part or room height prewalls
· For installation in room height partition walls
· For floor construction 0-20cm
Characteristics
· Statically self-supporting frame, protected against corrosion with powder coating

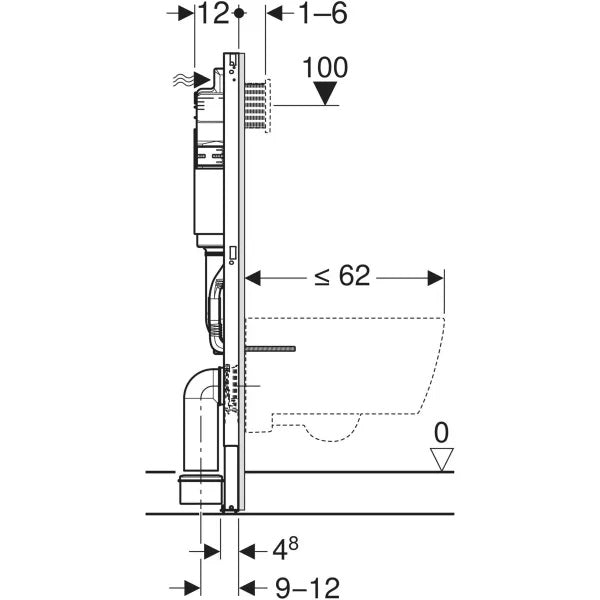

· Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm
· Alternative fastening point for wall anchors
· Foot plates made of plastic
· Foot plate depth suitable for installation in U-profiles UW 50
· Galvanised leg supports protected against corrosion
· Connection bend can be mounted without tools
· Geberit Alpha concealed cistern 12 cm fully insulated against condensation
· Cistern fulfils standard requirements in accordance with EN 14055, Class II
· For front actuation, suitable for dual flush
· Immediate post flush possible with factory setting
· Water supply connection on the rear or top centre
· Protection box for service opening, can be cut to length, protects against moisture and dirt
· With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
· Fastening option for electrical connection

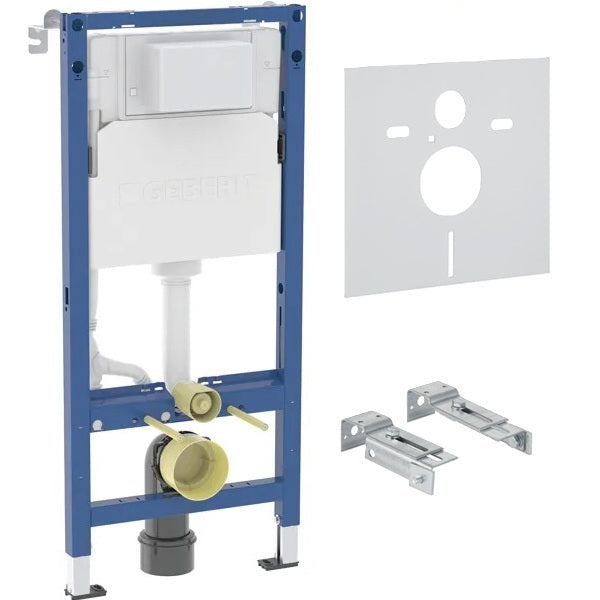

Scope of delivery
· Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
· Protection box for service opening
· 2 wall anchors

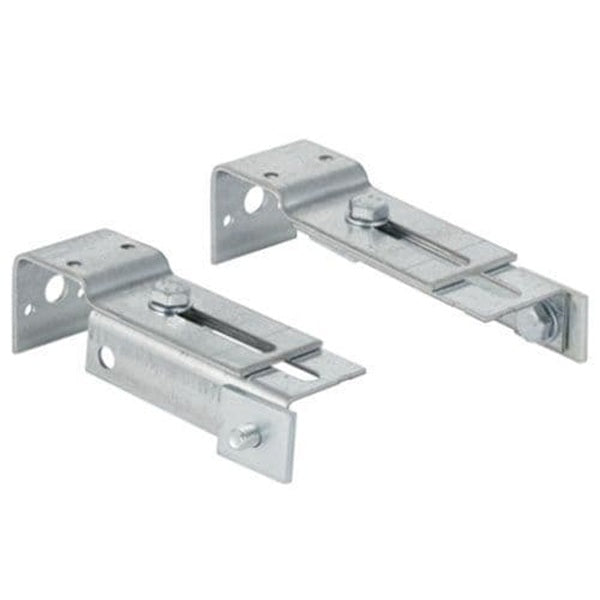

· 2 fixing brackets
· Connection set for WC, ø 90 mm
· Connection bend 90° made of PE-HD, ø 90 mm
· Adaptor socket made of PE-HD, ø 90 / 110 mm
· Fastening and protection material

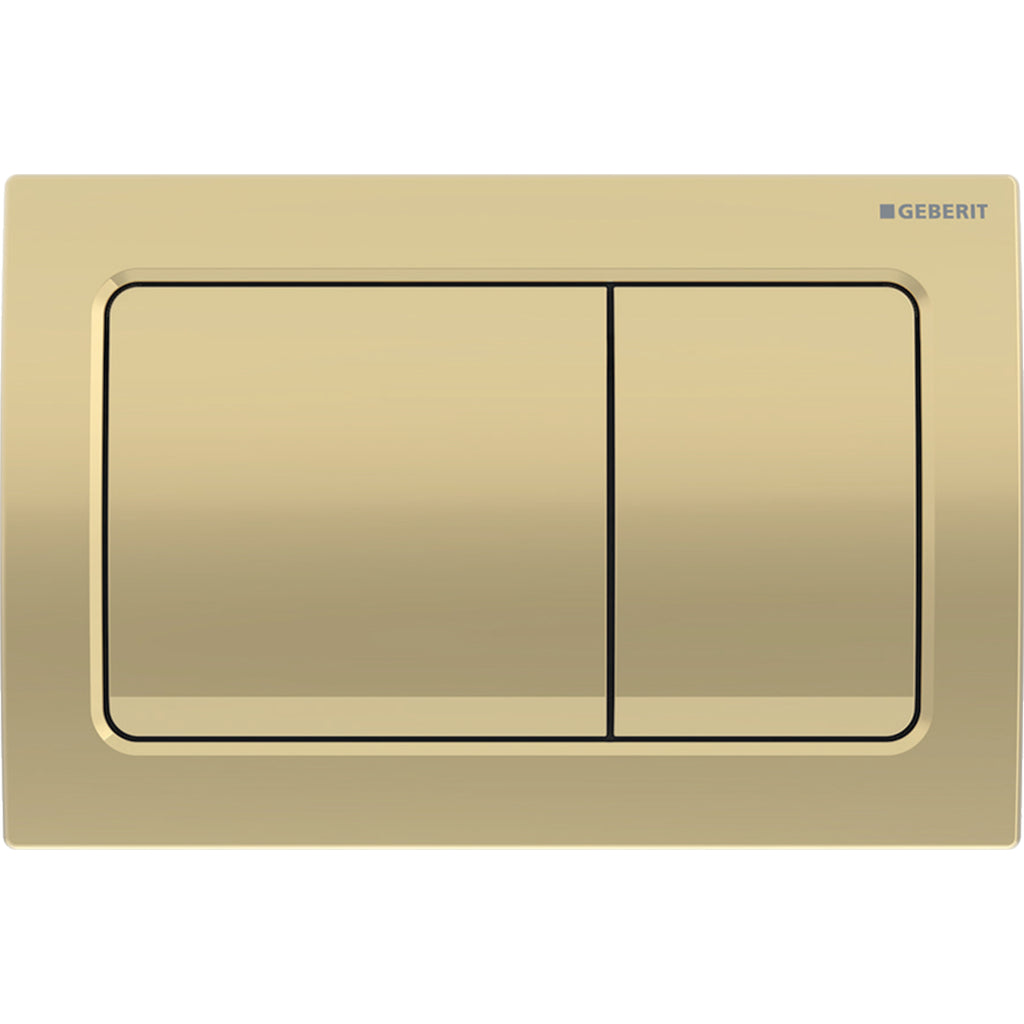

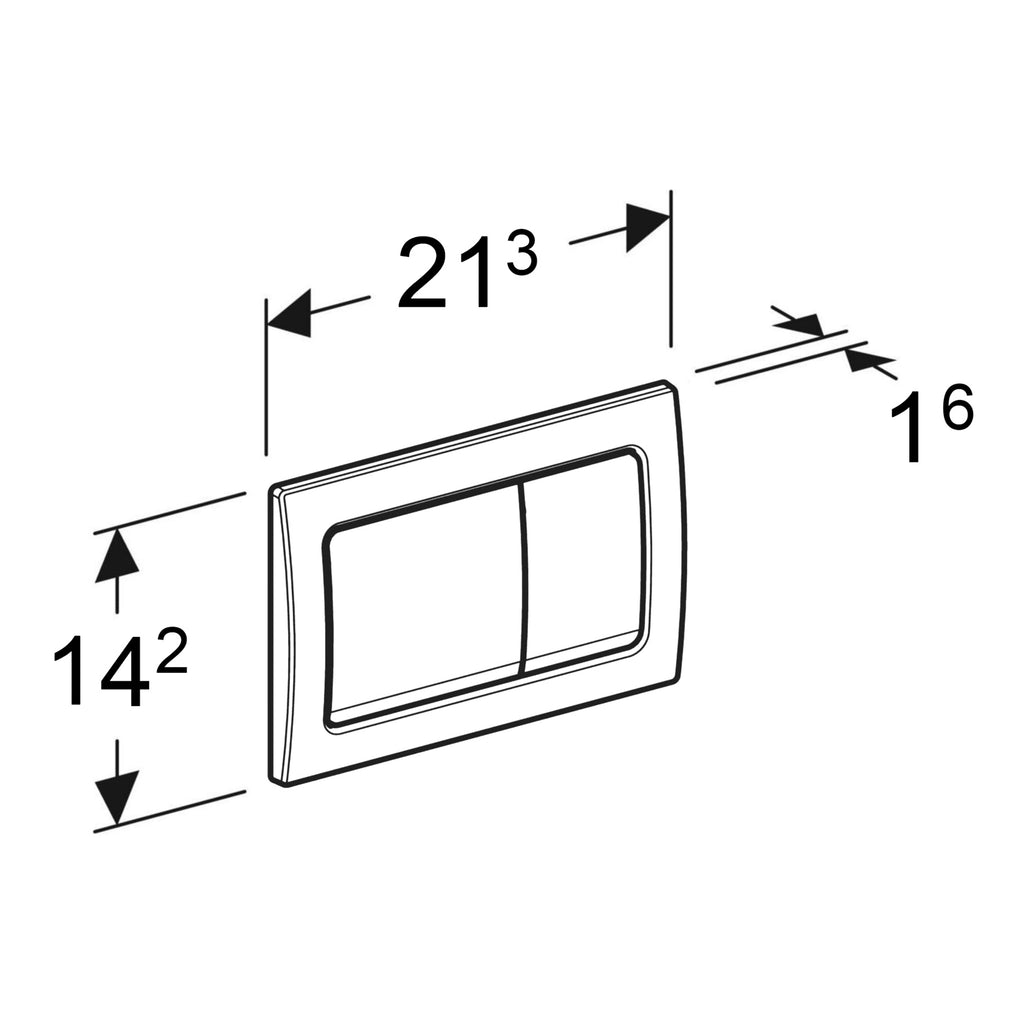

Geberit Alpha flush plate
· Actuation force max – 20 N
· Button shape – square
· For flush actuation with Alpha concealed cisterns only
· Top/front actuation
· 2 actuator rods
· Fastening material
· Acoustic mat

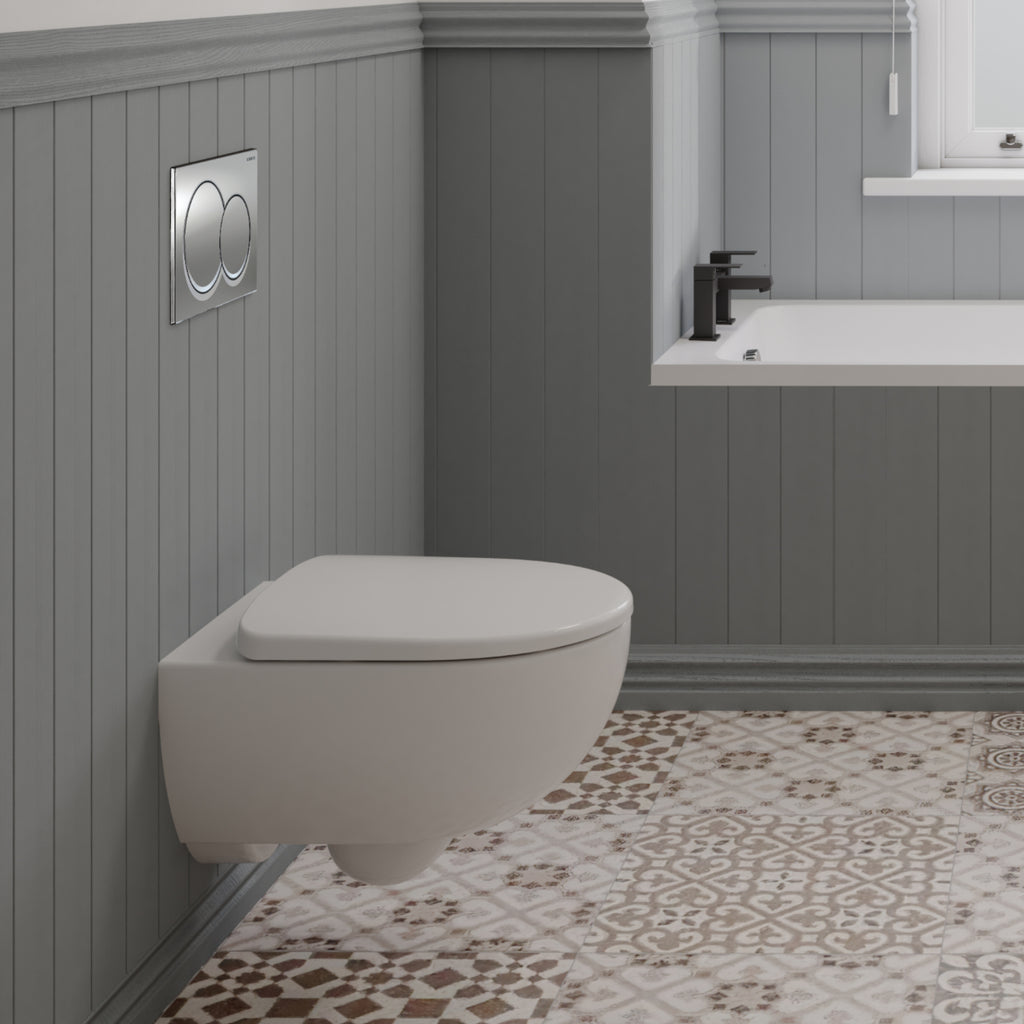

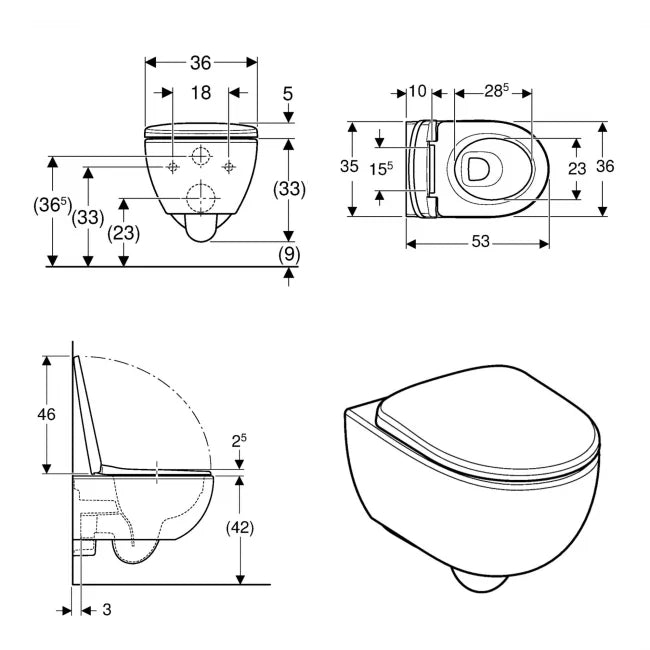

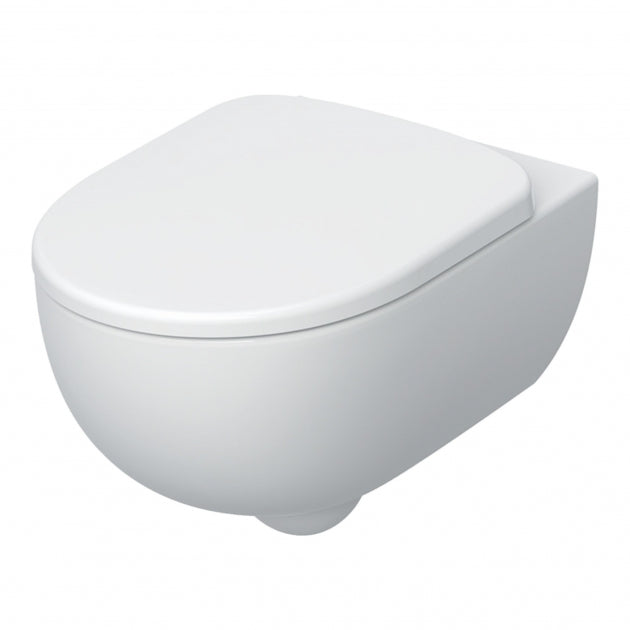

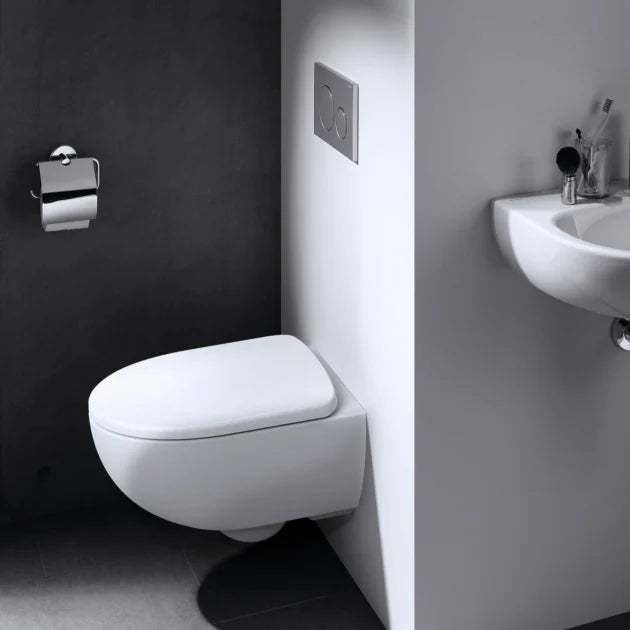

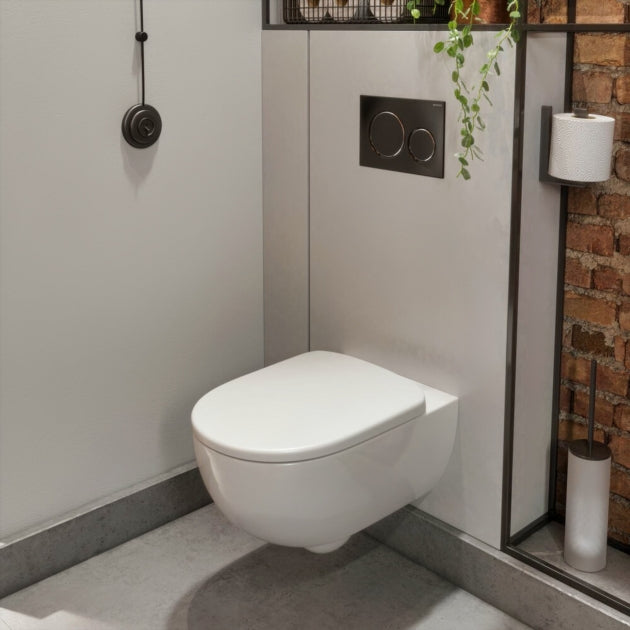

Geberit Selnova Wall Hung Pan Rimfree Rimless Shrouded Soft Close Quick Release Seat Pack 502.793.00.1
The Geberit Selnova wall-hung toilet is a perfect choice for any modern bathroom. It combines aesthetic appeal with functionality that surprises at every turn! The wall-hung toilet takes up minimal space and creates a spacious feel in the bathroom. Made of high-quality ceramic, you can enjoy its durability for many years to come. The concealment of all unsightly mounting elements translates into easy cleaning, which you'll surely appreciate! The 4/2-way flush system translates into water savings. Choose the Geberit Selnova toilet now and see how your bathroom can be even more functional!
Features:
- Width: 358 mm
- Length: 530 mm
- Height: 332 mm
- Wall-hung
- Washdown
- For concealed cisterns
- For flush valves
- Full water capacity: 6/4 l
- With rim
- Material: Sanitary ceramic
- Color: White
