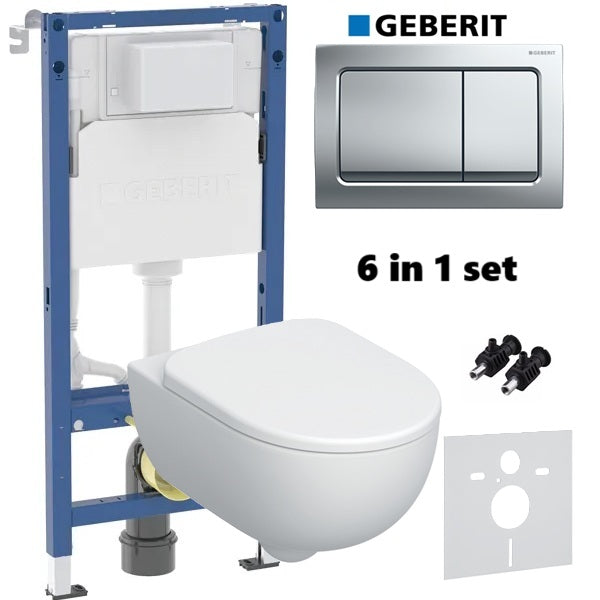

Geberit Selnova Alpha Wc Frame Square Chrome Flush Plate Pack 6 In 458.039.00.2 + 115.055.21.1 + 502.793.00.1

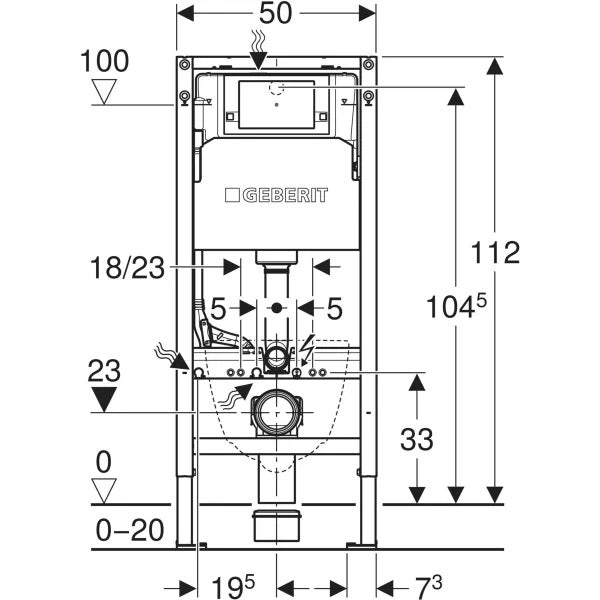

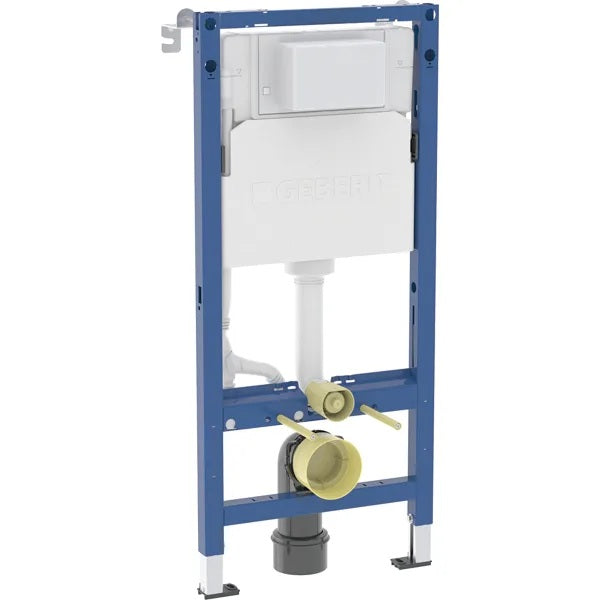

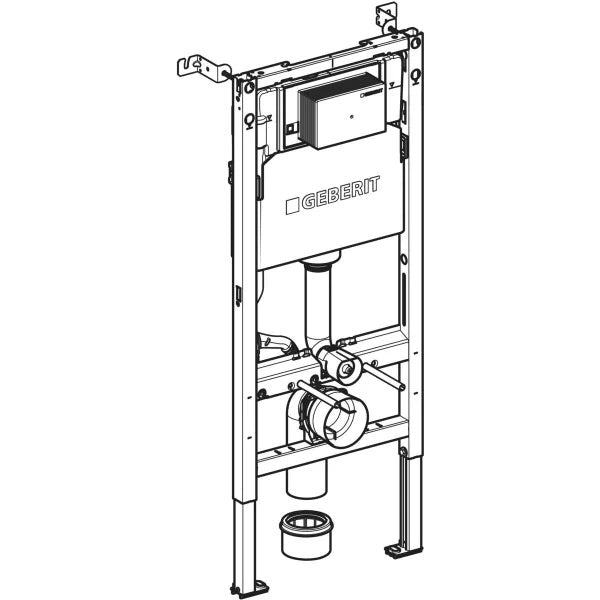

Geberit Alpha Wc Frame Concealed Cistern with Brackets

Technical data

·       Flow pressure: 0.1-10 bar

·       Operating temperature, water max: 25 °C

·       Flush volume, factory setting: 5.8 / 3 l

·       Flush volume small, adjustment range: 3–4 l

Application purposes

·       For metal and woods frame walls

·       For installation in part or room height prewalls

·       For installation in room height partition walls

·       For floor construction 0-20cm

Characteristics

·       Statically self-supporting frame, protected against corrosion with powder coating

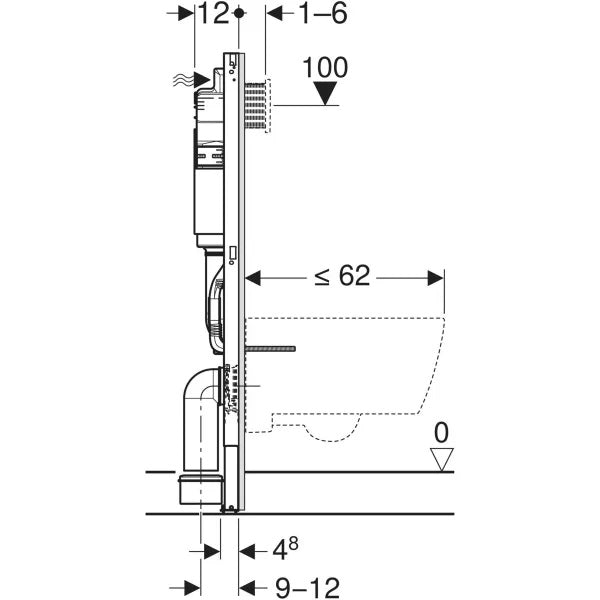

·       Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

·       Alternative fastening point for wall anchors

·       Foot plates made of plastic

·       Foot plate depth suitable for installation in U-profiles UW 50

·       Galvanised leg supports protected against corrosion

·       Connection bend can be mounted without tools

·       Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·       Cistern fulfils standard requirements in accordance with EN 14055, Class II

·       For front actuation, suitable for dual flush

·       Immediate post flush possible with factory setting

·       Water supply connection on the rear or top centre

·       Protection box for service opening, can be cut to length, protects against moisture and dirt

·       With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

·       Fastening option for electrical connection

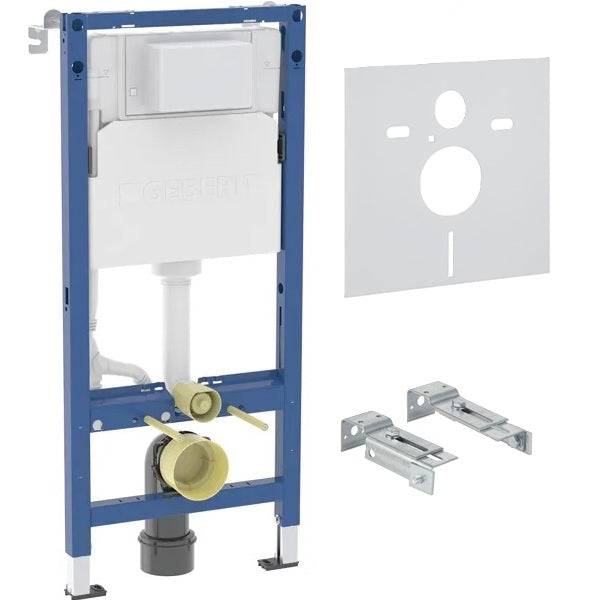

Scope of delivery

·       Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

·       Protection box for service opening

·       2 wall anchors

·       2 fixing brackets

·       Connection set for WC, ø 90 mm

·       Connection bend 90° made of PE-HD, ø 90 mm

·       Adaptor socket made of PE-HD, ø 90 / 110 mm

·       Fastening and protection material

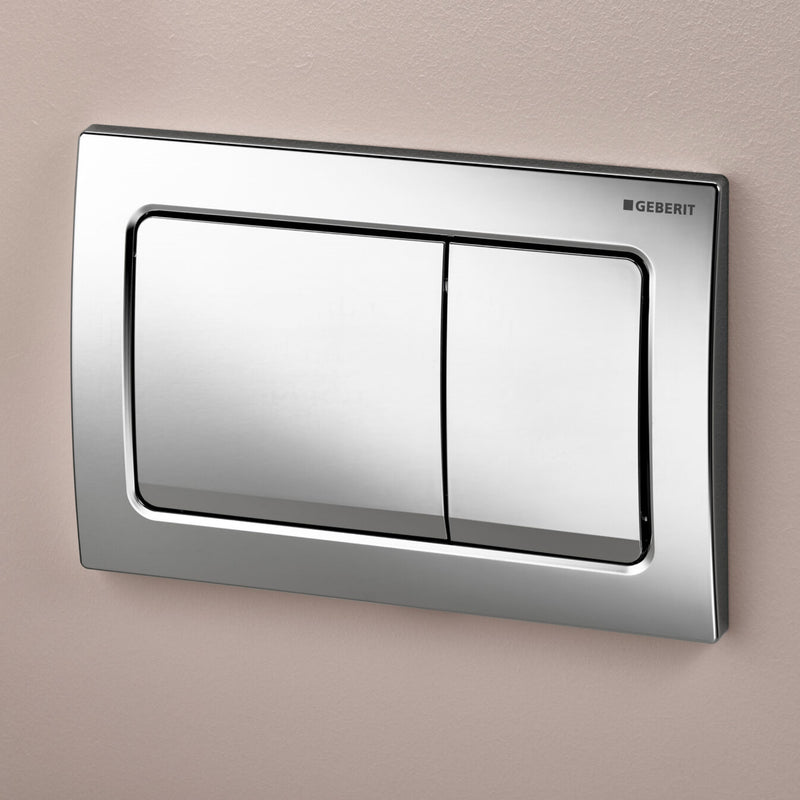

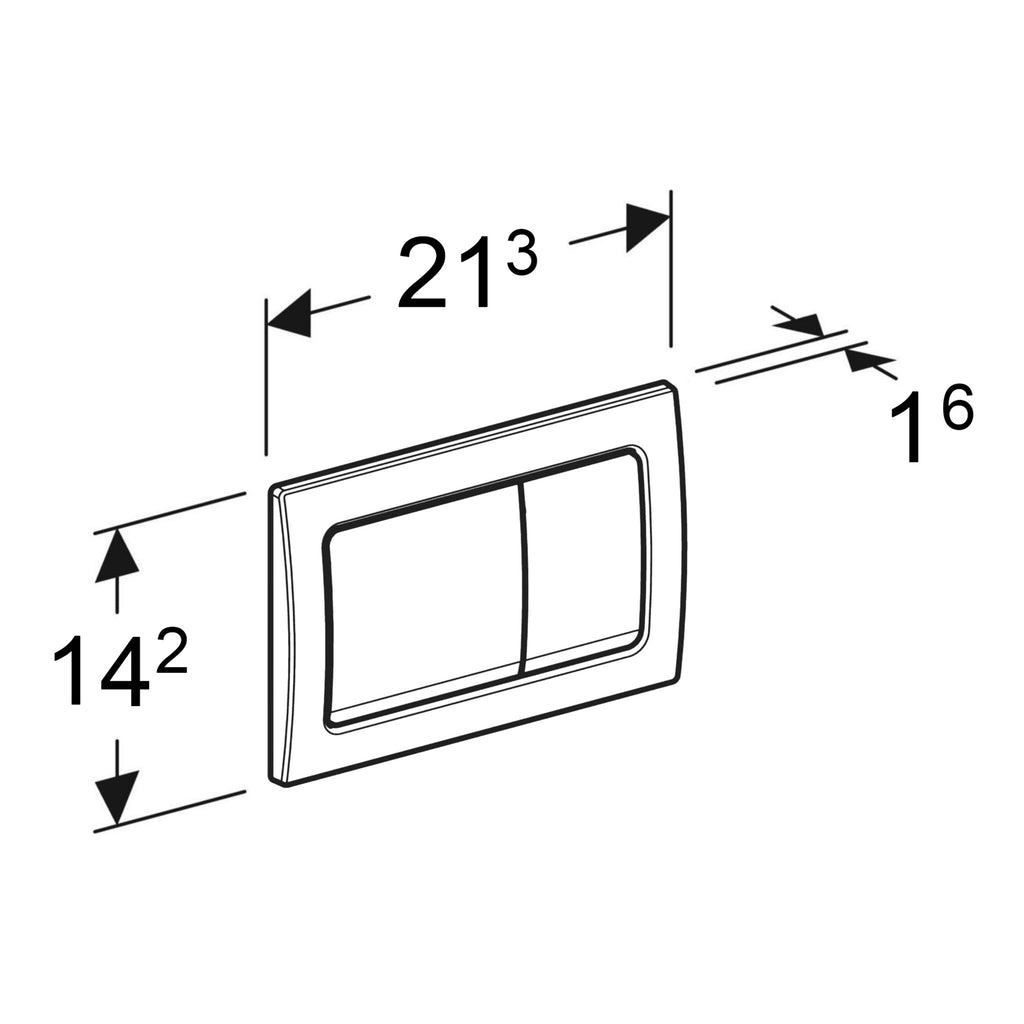

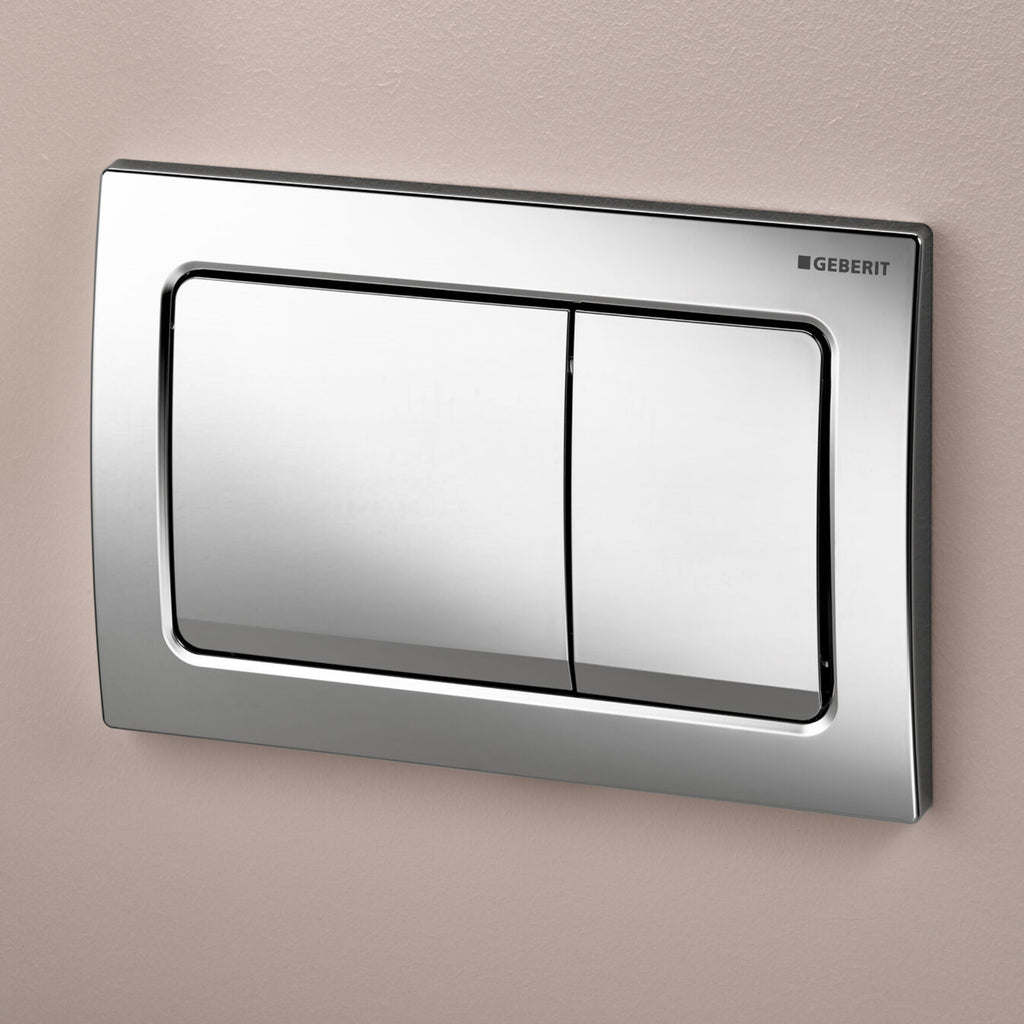

Geberit Alpha flush plate

·       Actuation force max – 20 N

·       Button shape – square

·       For flush actuation with Alpha concealed cisterns only

·       Top/front actuation

·       2 actuator rods

·       Fastening material

·       Acoustic mat

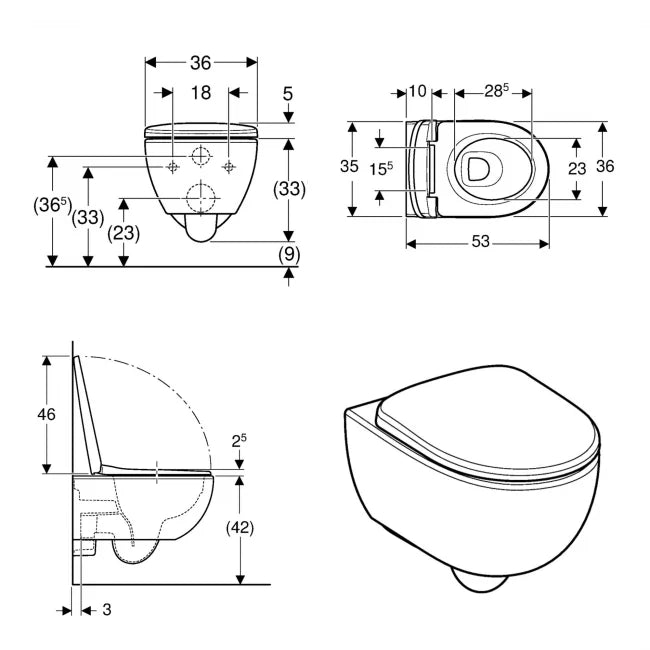

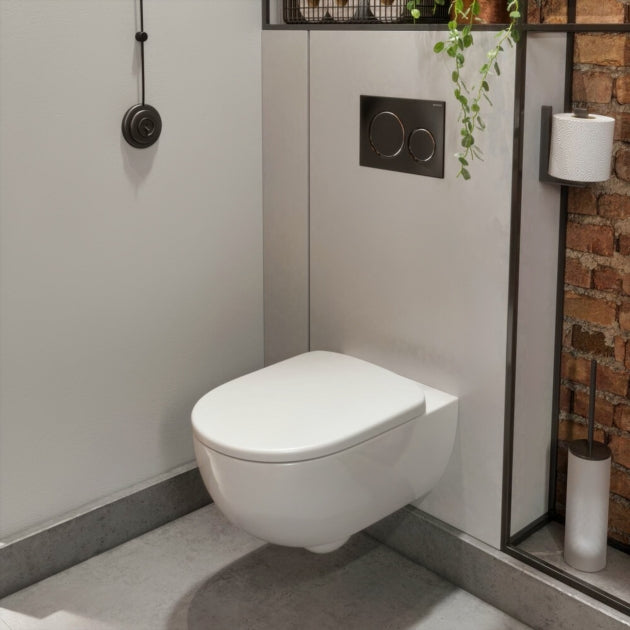

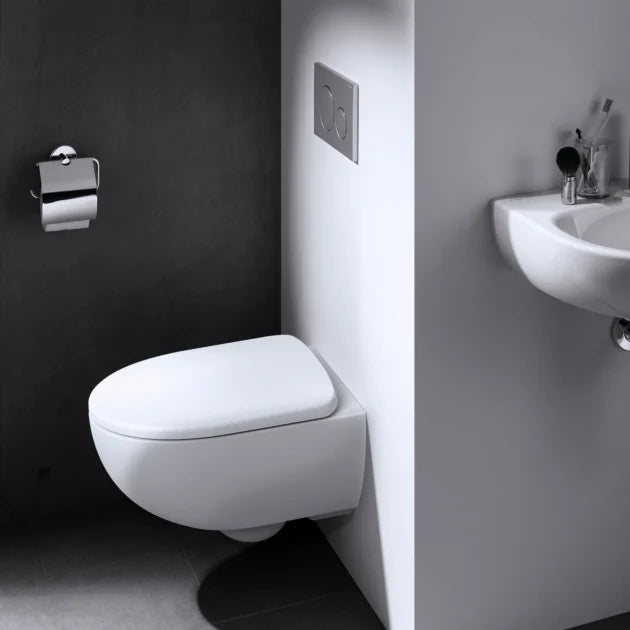

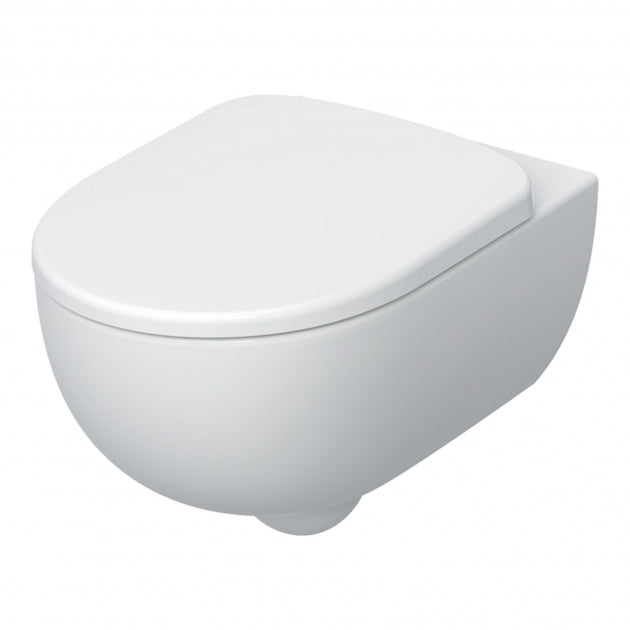

Geberit Selnova Wall Hung Pan Rimfree Rimless Shrouded Soft Close Quick Release Seat Pack 502.793.00.1

The Geberit Selnova wall-hung toilet is a perfect choice for any modern bathroom. It combines aesthetic appeal with functionality that surprises at every turn! The wall-hung toilet takes up minimal space and creates a spacious feel in the bathroom. Made of high-quality ceramic, you can enjoy its durability for many years to come. The concealment of all unsightly mounting elements translates into easy cleaning, which you'll surely appreciate! The 4/2-way flush system translates into water savings. Choose the Geberit Selnova toilet now and see how your bathroom can be even more functional!

Features:

- Width: 358 mm

- Length: 530 mm

- Height: 332 mm

- Wall-hung

- Washdown

- For concealed cisterns

- For flush valves

- Full water capacity: 6/4 l

- With rim

- Material: Sanitary ceramic

- Color: White
