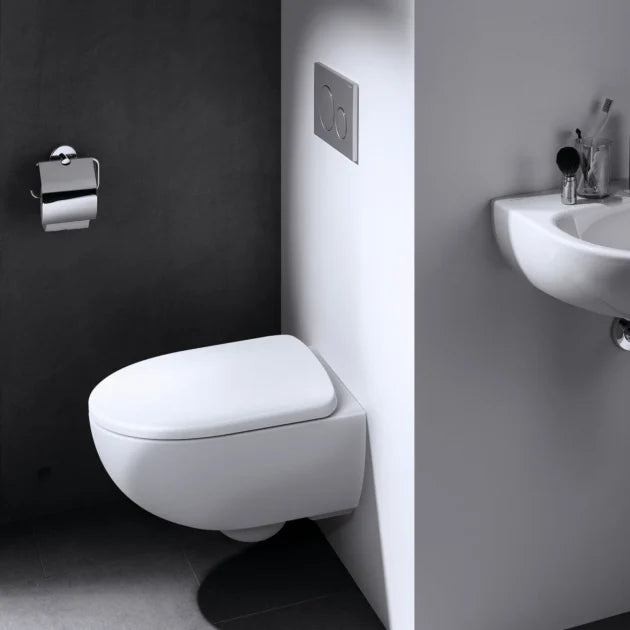

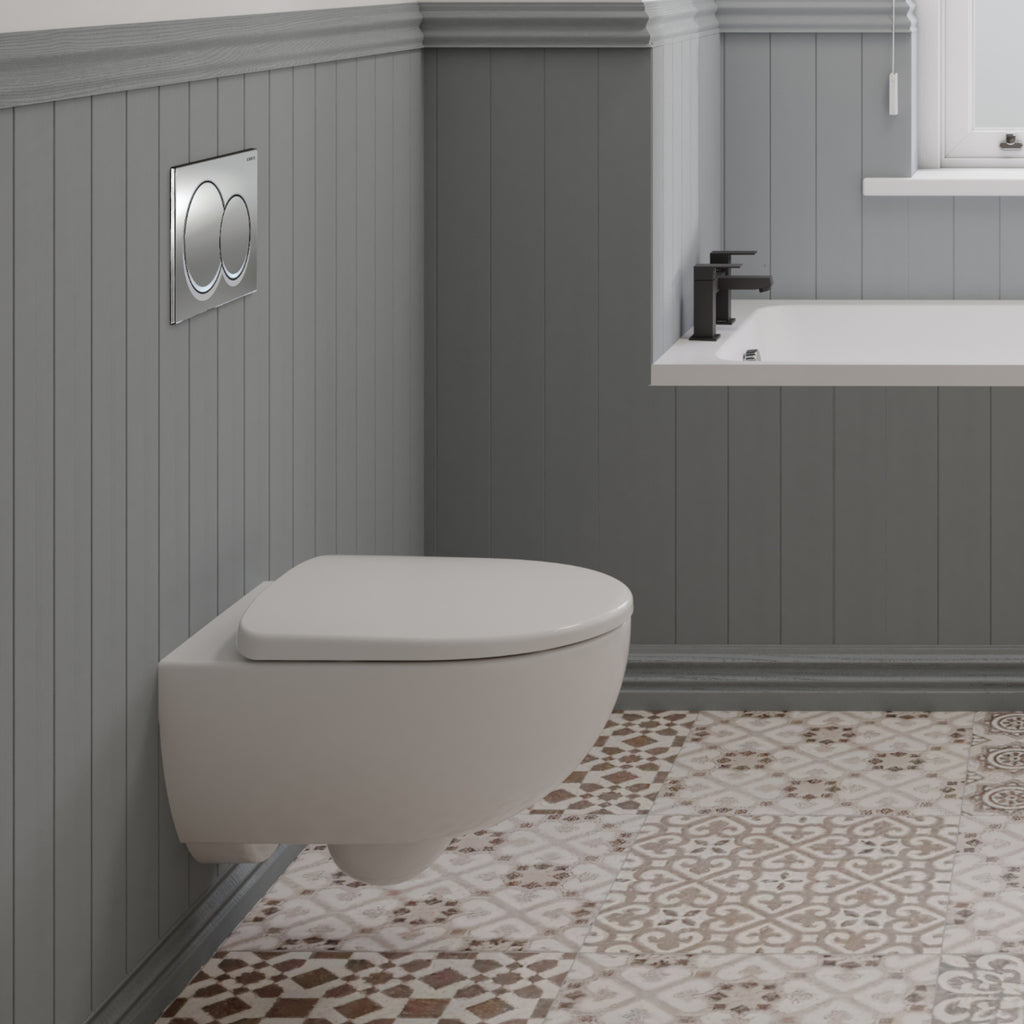

Geberit Selnova Rimless Shrouded Wall Hung Pan Alpha WC Frame Round Chrome Flush Plate 118.362.21.2

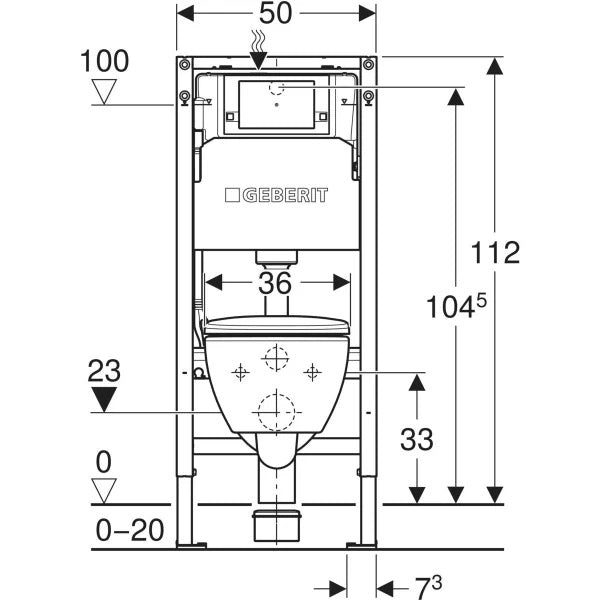

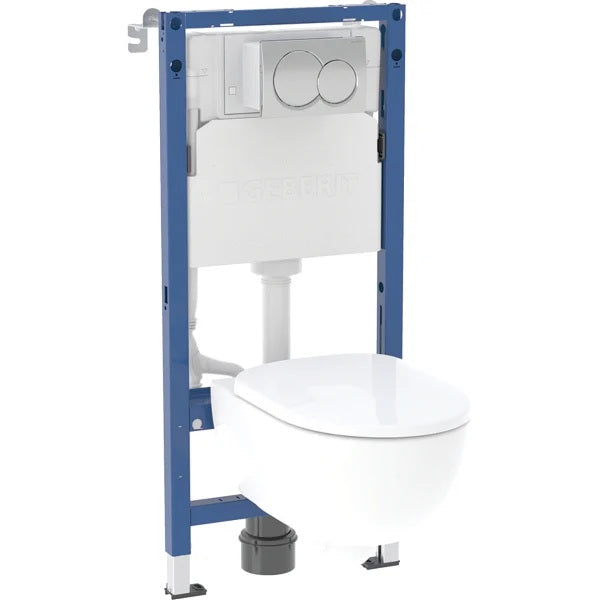

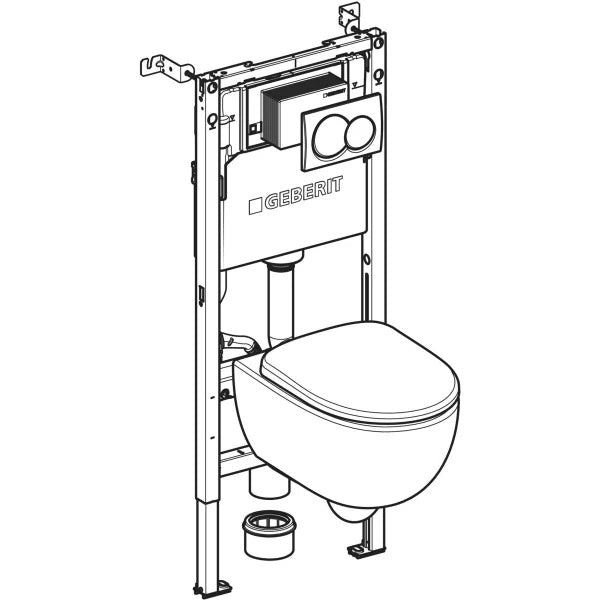

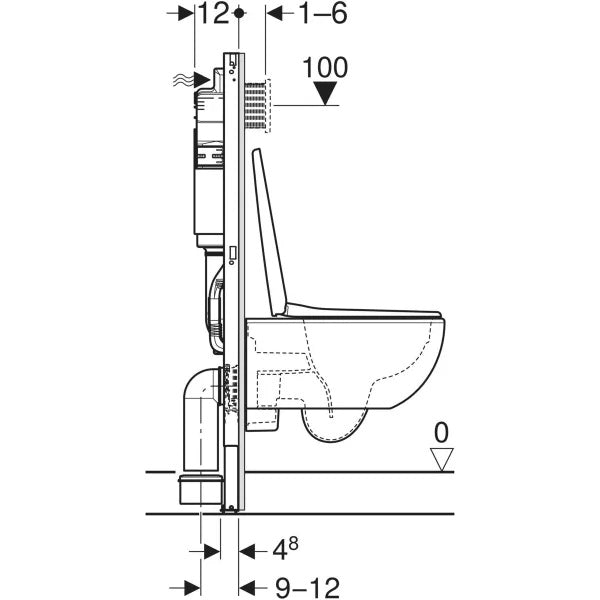

Geberit Alpha Wc Frame Concealed Cistern with Brackets

Technical data

·       Flow pressure: 0.1-10 bar

·       Operating temperature, water max: 25 °C

·       Flush volume, factory setting: 5.8 / 3 l

·       Flush volume small, adjustment range: 3–4 l

Application purposes

·       For metal and woods frame walls

·       For installation in part or room height prewalls

·       For installation in room height partition walls

·       For floor construction 0-20cm

Characteristics

·       Statically self-supporting frame, protected against corrosion with powder coating

·       Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cm

·       Alternative fastening point for wall anchors

·       Foot plates made of plastic

·       Foot plate depth suitable for installation in U-profiles UW 50

·       Galvanised leg supports protected against corrosion

·       Connection bend can be mounted without tools

·       Geberit Alpha concealed cistern 12 cm fully insulated against condensation

·       Cistern fulfils standard requirements in accordance with EN 14055, Class II

·       For front actuation, suitable for dual flush

·       Immediate post flush possible with factory setting

·       Water supply connection on the rear or top centre

·       Protection box for service opening, can be cut to length, protects against moisture and dirt

·       With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable

·       Fastening option for electrical connection

Scope of delivery

·       Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

·       Protection box for service opening

·       2 wall anchors

·       2 fixing brackets

·       Connection set for WC, ø 90 mm

·       Connection bend 90° made of PE-HD, ø 90 mm

·       Adaptor socket made of PE-HD, ø 90 / 110 mm

·       Fastening and protection material

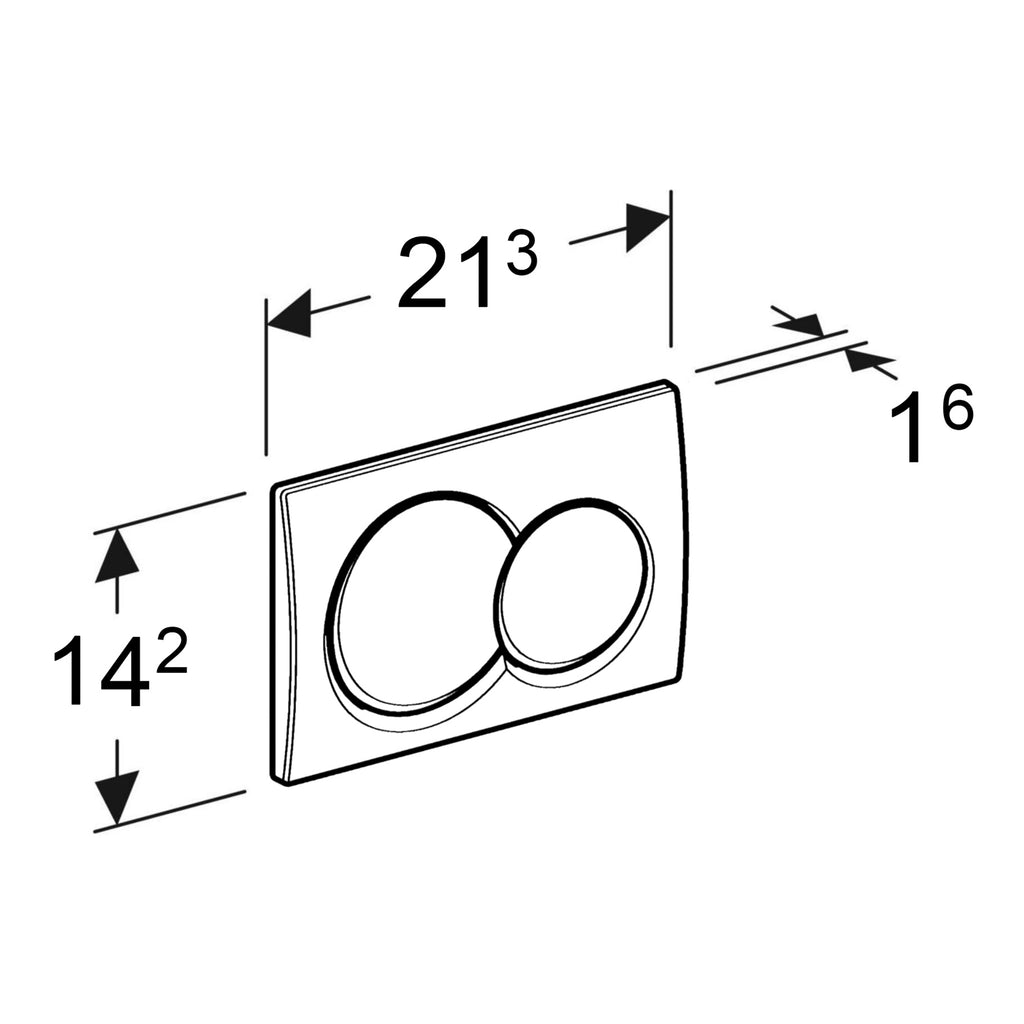

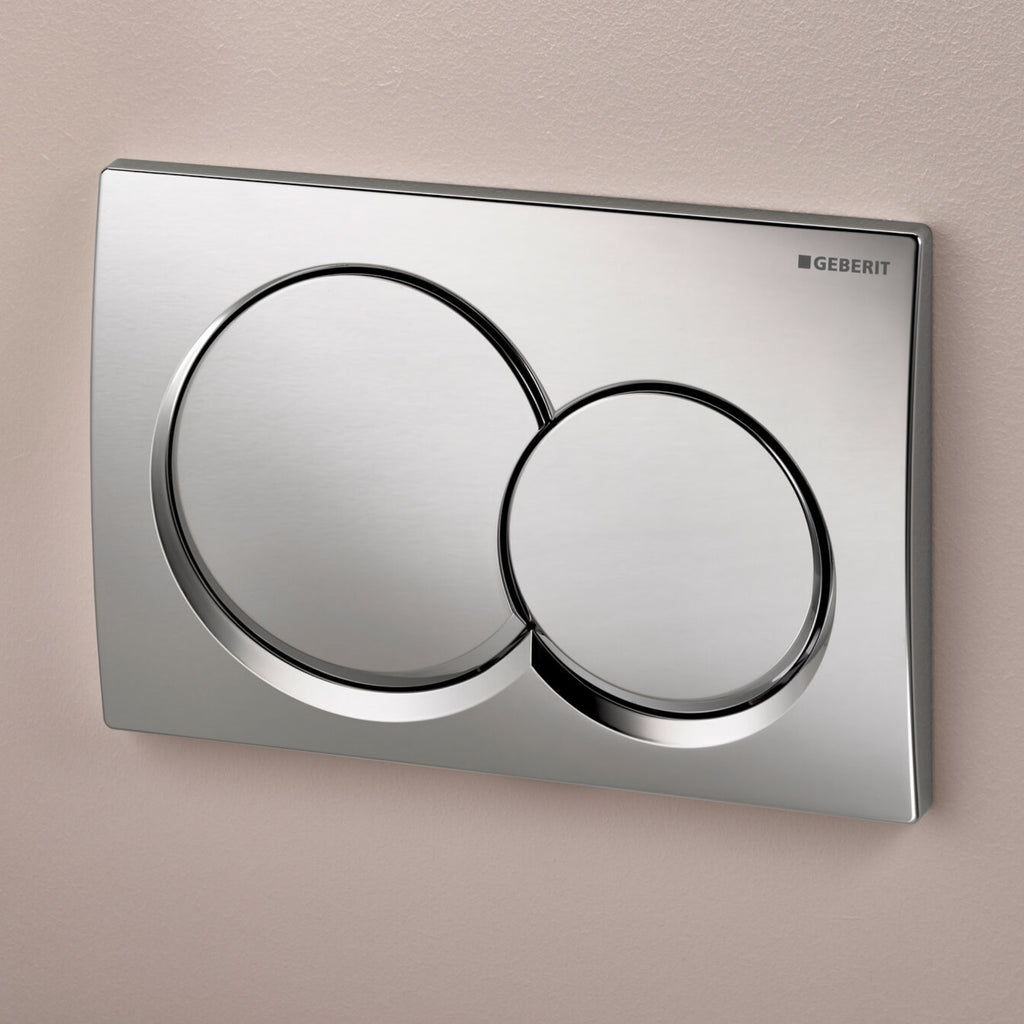

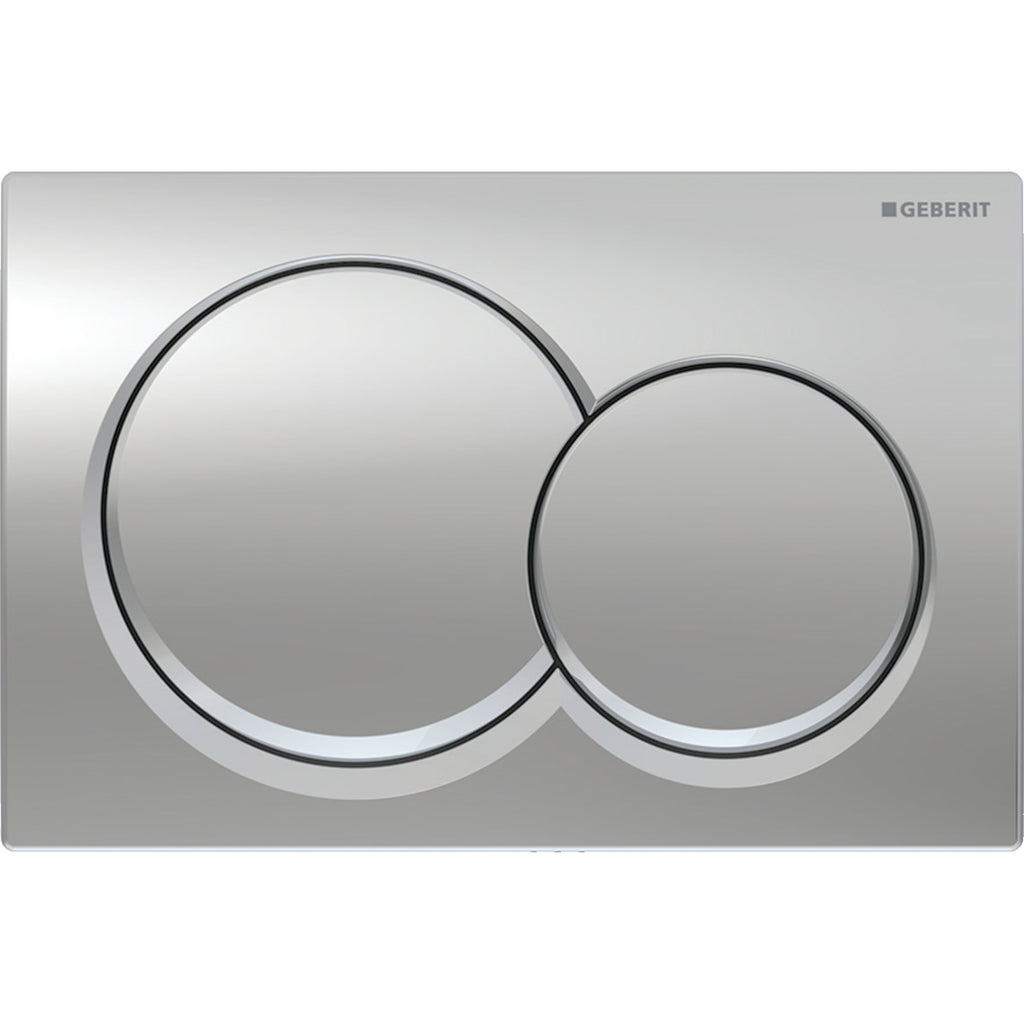

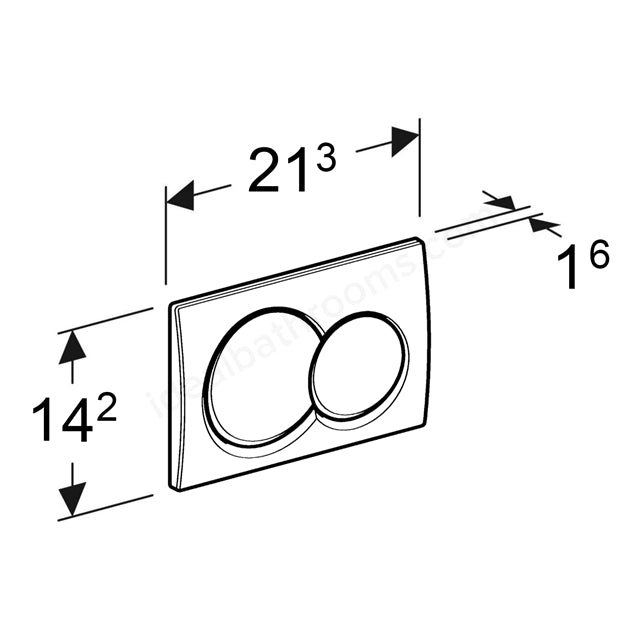

Geberit Alpha flush plate

·       Actuation force max – 20 N

·       Button shape – round

·       For flush actuation with Alpha concealed cisterns only

·       Top/front actuation

·       2 actuator rods

·       Fastening material

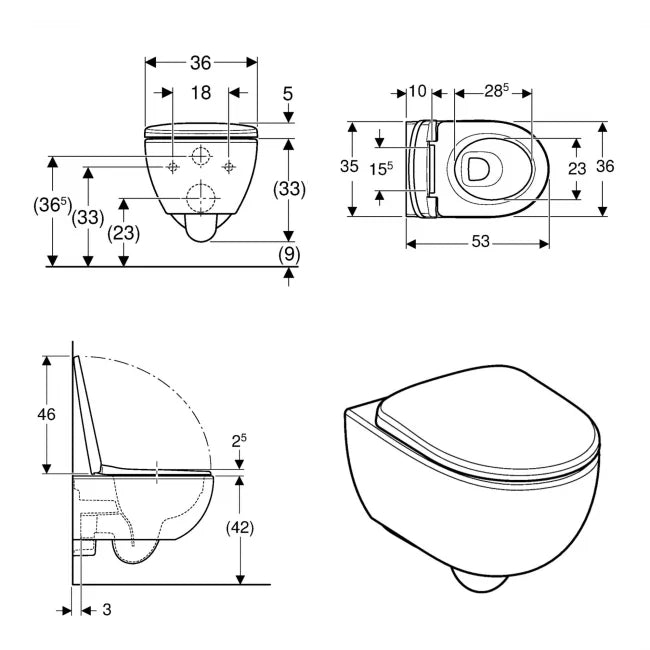

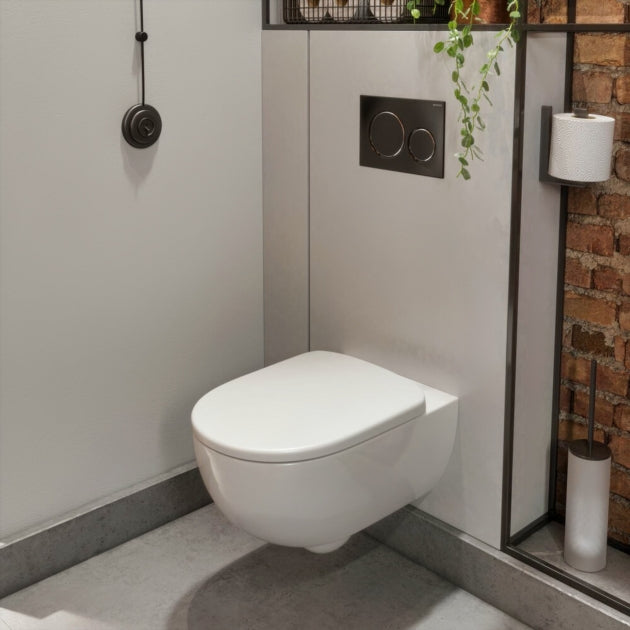

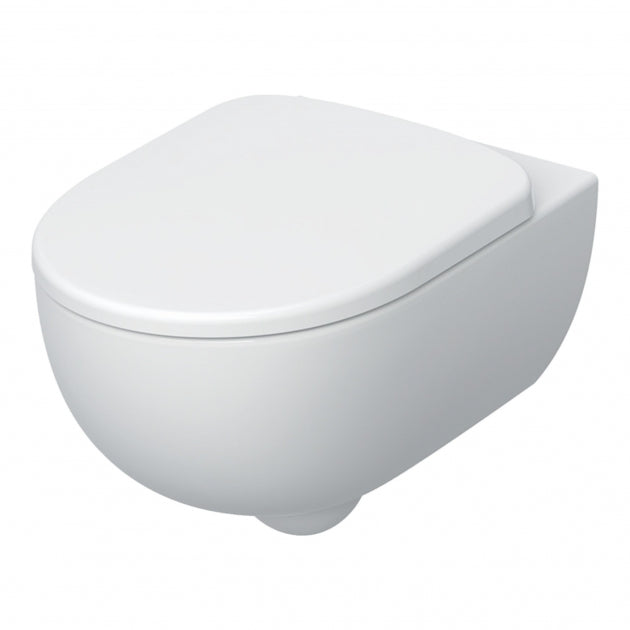

Geberit Selnova Rimless Pan And Soft Close Seat

·       Rimless WC ceramic appliance featuring Rimfree flush technology

·       Easy fastening with Easy Fast Fixing (type EFF3)

·       Type 1, full flush volume 6 / 5 / 4 l, in accordance with EN 997

·       Shrouded

·       WC seat made of Duroplast

·       4 l flush

·       Overlapping WC lid

·       Washdown WC
