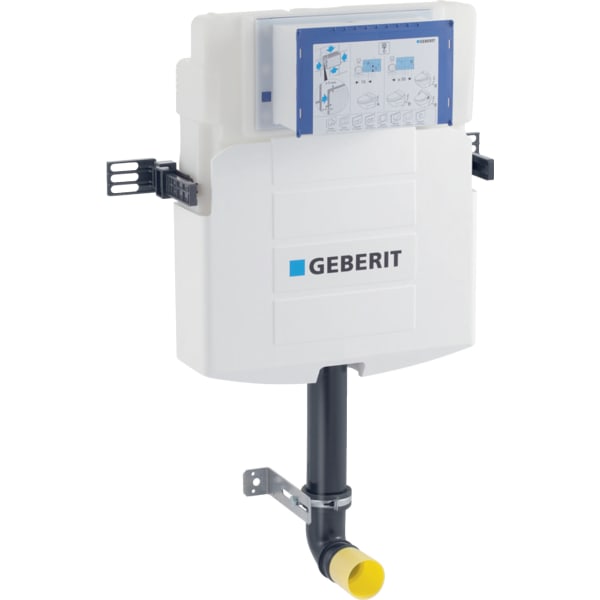

GEBERIT SIGMA CONCEALED CISTERN 12 CM, 6 / 3 LITRES

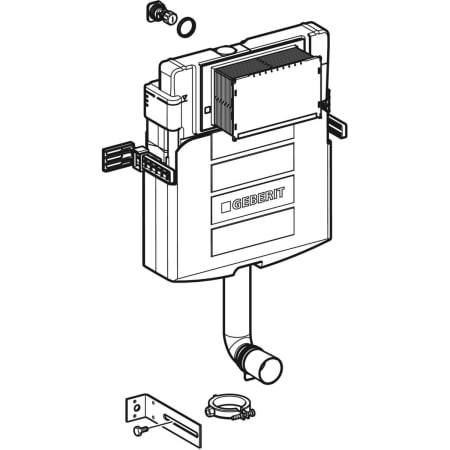

PRODUCT DESCRIPTION:
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Fastening for flush bend
- 2 slotted flat irons
- 2 fixing brackets
- Protection box for service opening
- Flush bend 90°
- Protection plug
- Fastening material
- Flow pressure 0.1-10 bar
- Maximum operating temperature, water 25 °C
-
Flush volume, factory setting 5.8 and 3 l
-
Flush volume small, adjustment range 2-4
- Flush bend extension, ø 45 mm
- Cistern can be mounted at a lower height (98cm) as the flush pipe can be cut down
- The flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low-volume flush
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

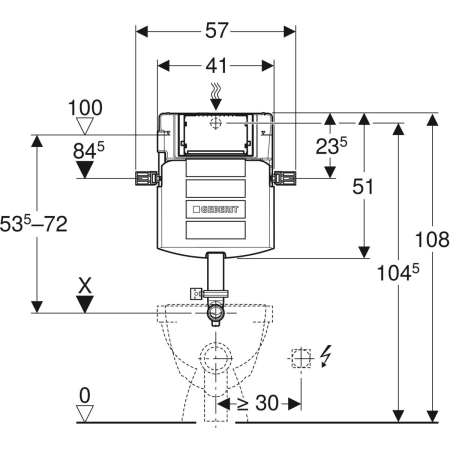

- B - 41cm
- H - 51cm
- T - 12cm
