Description
GEBERIT SIGMA CONCEALED SLIM CISTERN 8 CM, 6 / 3 LITRES FOR BACK-TO-WALL TOILET RIMLESS 109.792.00.1
PRODUCT DESCRIPTION:
- The flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Fastening for flush bend
- Cup for flush volume reduction 4.5 / 3 l
- 2 fixing brackets
- Protection box for service opening
- Flush bend 90°
- Protection plug
- Fastening material
- Flow pressure 0.1-10 bar
- Maximum operating temperature, water 25 °C
-
Flush volume, factory setting 5.8 and 3 l
-
Flush volume small, adjustment range 3-4

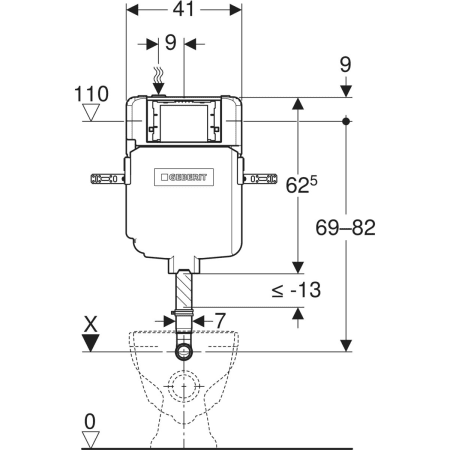

- B - 41cm
- H - 62.5cm
- T8cm
