Description
Reina Flat Panel Double Horizontal Designer Radiator - 600mm x 810mm - Anthracite

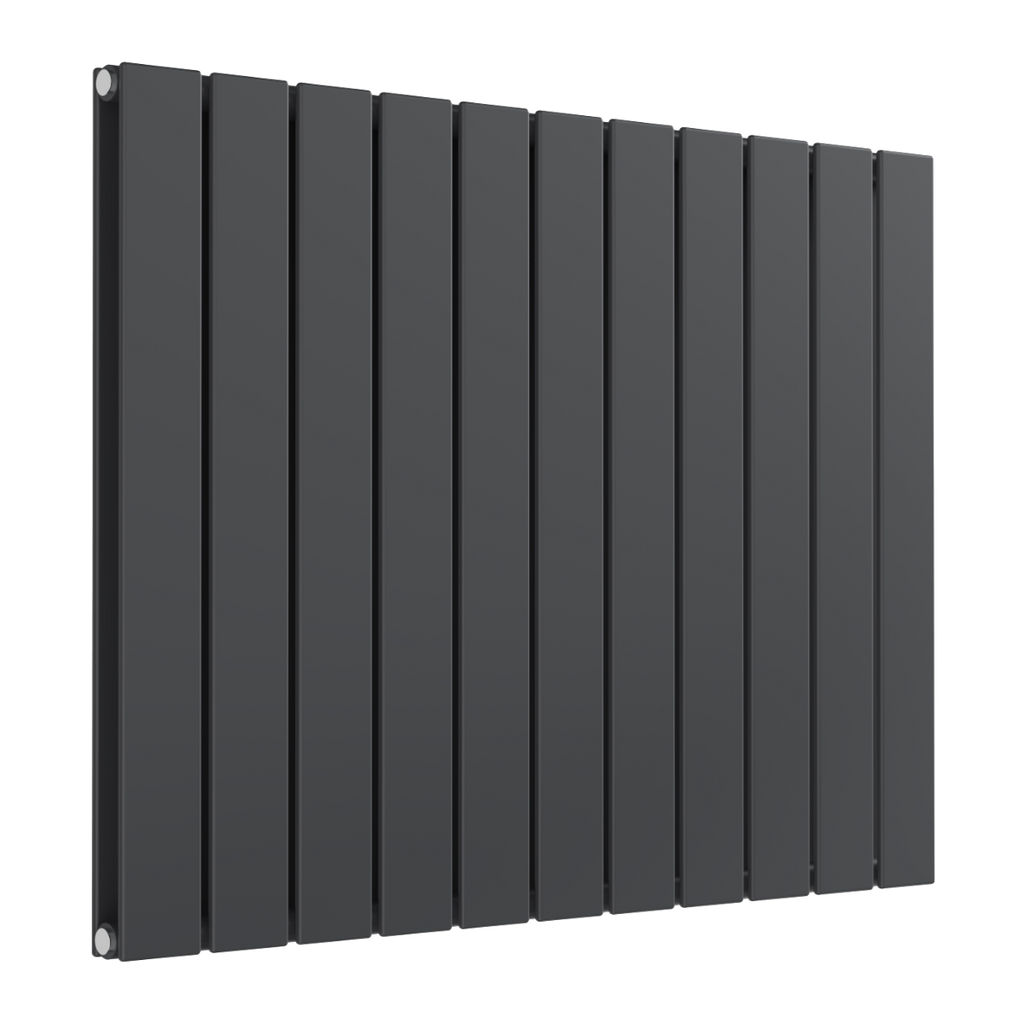

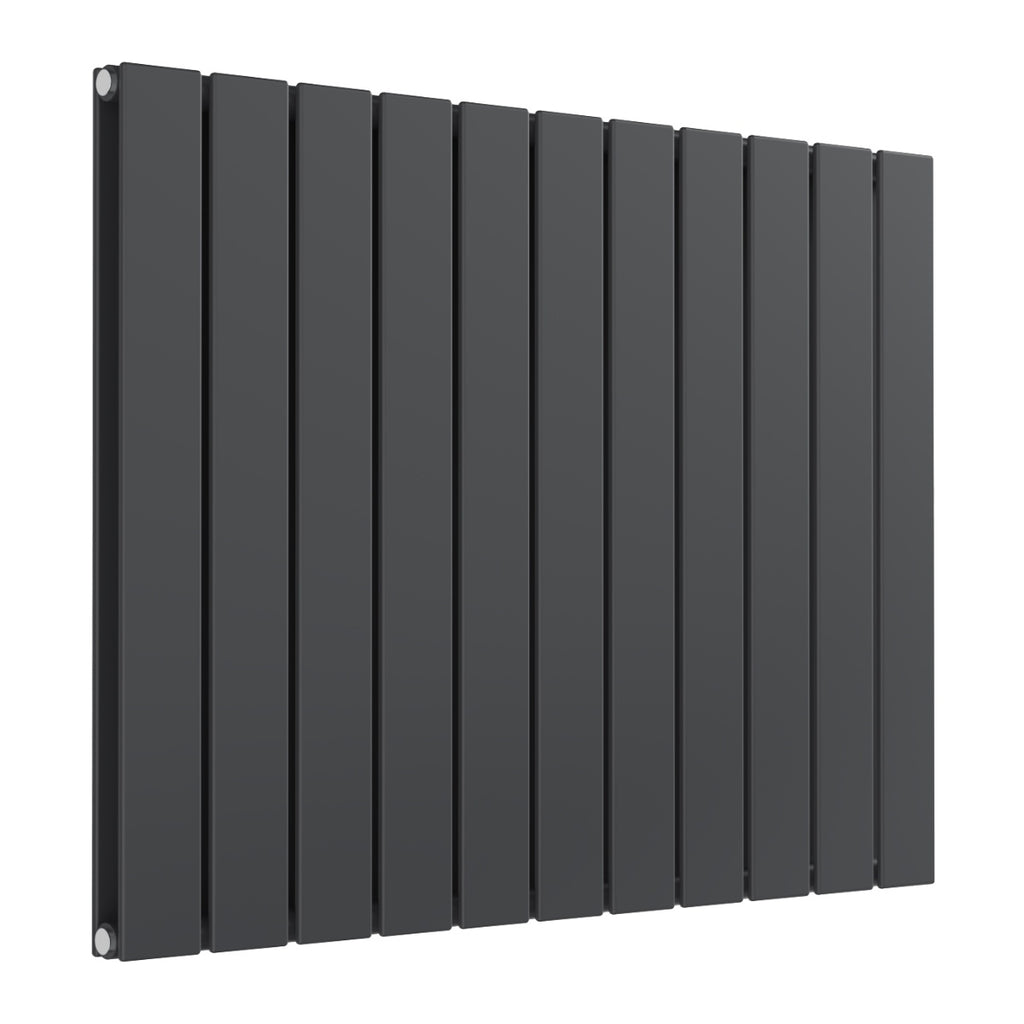

The Reina Flat Panel Double Horizontal Designer Radiator is a stylish and efficient heating solution designed for modern interiors. Measuring 600mm high and 810mm wide, this anthracite radiator features 22 flat fronted 70mm tubes arranged in a double panel format. Manufactured from durable steel, it delivers a heat output of 3617 BTU or 1061 watts at Delta T60 degrees Celsius. Suitable for central heating, dual fuel and electric installations, it offers flexible heating options for a variety of contemporary spaces. Manufactured to BS EN 442 standards, it provides dependable heating performance and lasting durability.
Designed for flexible installation, this radiator can be wall or floor mounted and is supplied with wall brackets and fixings for convenient fitting. It features 1/2 inch BSP side connections and 810mm pipe centres, with a wall to pipe centre measurement of 64mm and a wall to front measurement of 93mm. The horizontal orientation makes it suitable for a range of room layouts, while the anthracite finish provides a contemporary appearance. With a five year guarantee and easy installation, this designer radiator combines modern styling with effective heating performance. Radiator valves are not included.
Product Specifications
- Product Type: Horizontal Designer Radiator
- Brand: Reina
- Range: Flat
- Height: 600mm
- Width: 810mm
- Colour: Anthracite
- Material: Steel
- Mounting: Wall/Floor Mounting
- Guarantee: 5 Years
- Style: Modern
- Fuel Type: Central Heating/Dual Fuel/Electric
- Heat Output ΔT60°C (BTU): 3617
- Heat Output ΔT60° (Watts): 1061

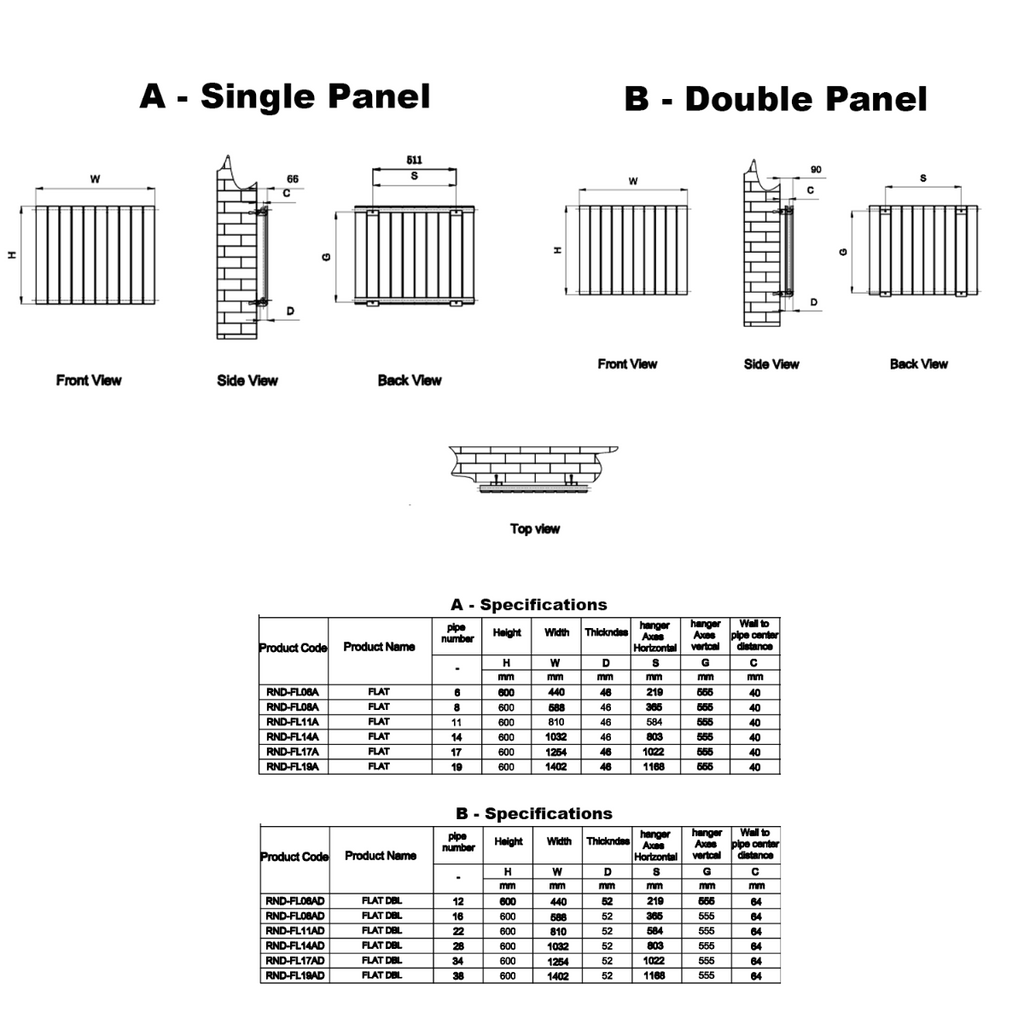

- Pipe Centres: 810mm
- Orientation: Horizontal
- Wall to Pipe Centres: 64mm
- Wall to Front: 93mm
- Number of Tube: 22
- Suitable for Conversion: Yes
Special Features
- Suitable for use with standard central heating systems
- Manufactured to BS/EN 442
- 1/2" BSP side connections - allow +90mm for radiator valve pipe centres
- Suitable for dual-fuel or electric-only installations
- Supplied with wall brackets and fixings for wall-mounted installation
- Double panel format; set of tubes mounted on the front of the radiator
- Designer vertical radiator built using 70mm flat-fronted vertical tubes
- Radiator valves are not included
- Easy to install and use
- Images are shown for illustration purposes only
