Description

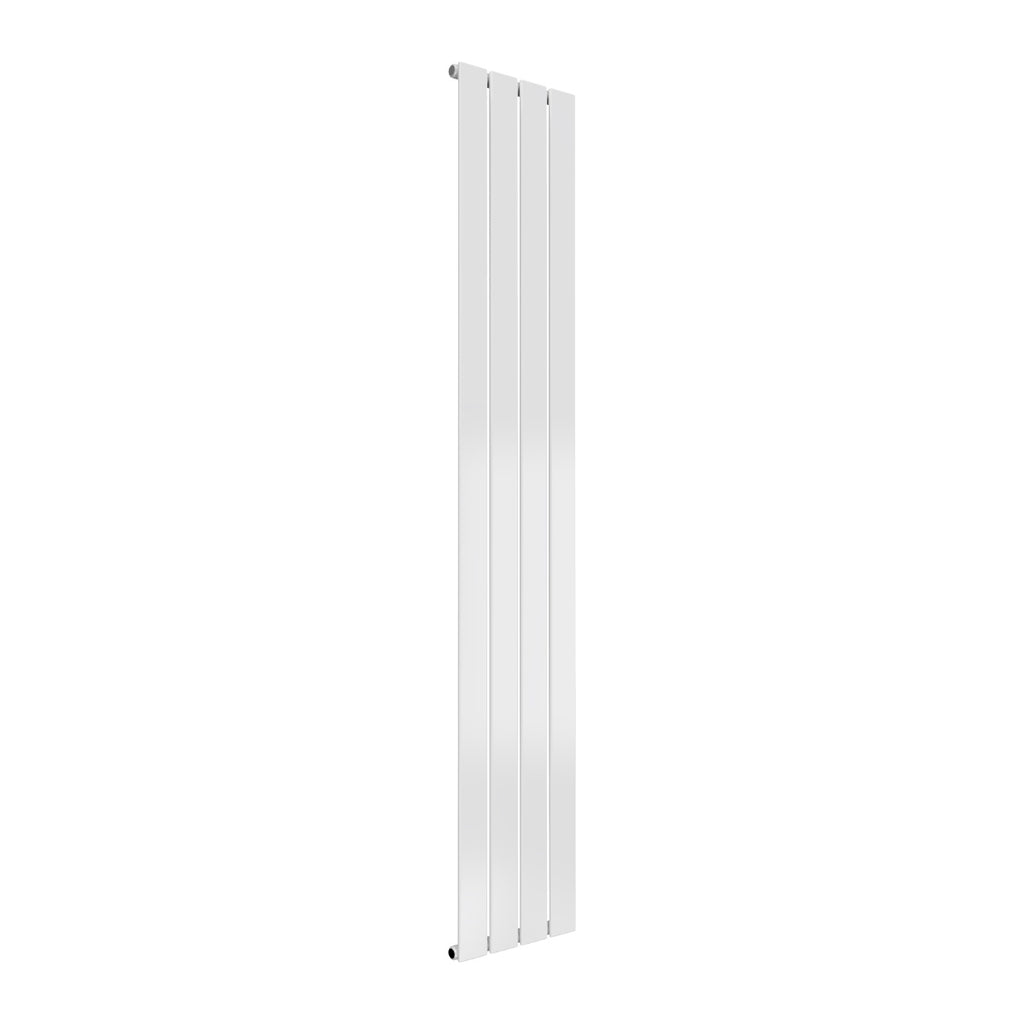

Reina Flat Panel Single Vertical Designer Radiator - 1600mm x 292mm - White
The Reina Flat Panel Single Vertical Designer Radiator provides a sleek and contemporary heating solution for modern interiors. Measuring 1600mm high and 292mm wide, it features a clean white finish and durable steel construction. The vertical design incorporates four 70mm flat fronted tubes arranged on the front of a single panel, creating a minimalist appearance while delivering a heat output of 2310 BTU or 677 Watts at Delta T60. Suitable for standard central heating systems, it can also be used for dual fuel or electric only installations, providing versatile heating options.
Suitable for wall or floor mounting, the Reina Flat Panel radiator is supplied with wall brackets and fixings for convenient installation. Manufactured to BS EN 442 standards, it features 1/2 inch BSP side connections and 292mm pipe centres. The wall to pipe centre measurement is 39mm, while the wall to front measurement is 68mm. Allow an additional 90mm for radiator valve pipe centres. This model is not suitable for conversion and radiator valves are not included. Its modern flat panel design offers an attractive and practical heating solution for contemporary spaces.
Product Specifications
- Product Type: Vertical Designer Radiator
- Brand: Reina
- Range: Flat
- Height: 1600mm
- Width: 292mm
- Colour: White
- Material: Steel
- Mounting: Wall/Floor Mounting
- Guarantee: 5 Years
- Style: Modern
- Fuel Type: Central Heating
- Heat Output ΔT60°C (BTU): 2310
- Heat Output ΔT60° (Watts): 677
- Pipe Centres: 292mm
- Orientation: Vertical
- Wall to Pipe Centres: 39mm
- Wall to Front: 68mm
- Number of Tube: 4
- Suitable for Conversion: No
Special Features
- Suitable for use with standard central heating systems
- Manufactured to BS/EN 442
- 1/2" BSP side connections - allow +90mm for radiator valve pipe centres
- Suitable for dual-fuel or electric-only installations
- Supplied with wall brackets and fixings for wall-mounted installation
- Single panel format; 1 set of tubes mounted on the front of the radiator
- Designer vertical radiator built using 70mm flat-fronted vertical tubes
- Radiator valves are not included
- Easy to install and use
- Images are shown for illustration purposes only
