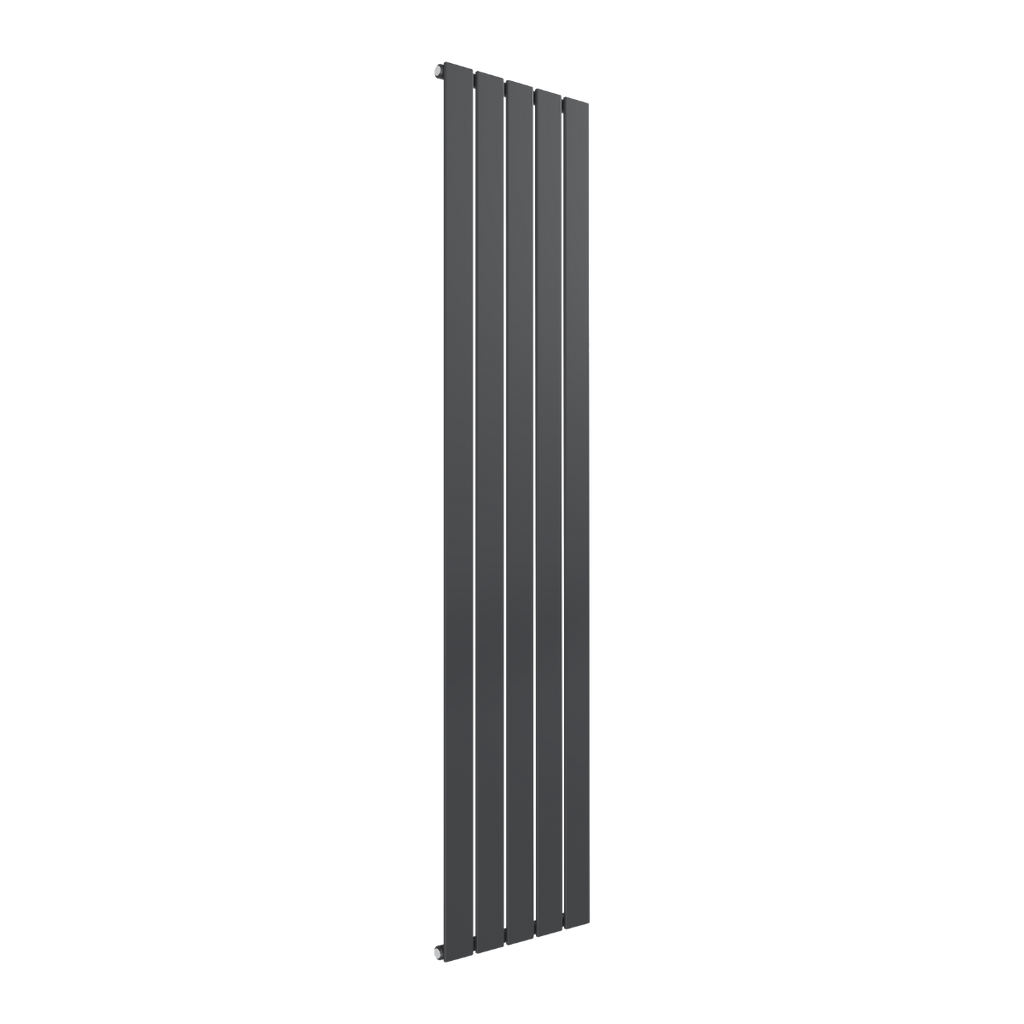

Reina Flat Panel Single Vertical Designer Radiator - 1600mm x 366mm - Anthracite
The Reina Flat Panel Single Vertical Designer Radiator combines contemporary styling with reliable heating performance, making it a stylish choice for modern interiors. Measuring 1600mm high and 366mm wide, it features a sophisticated anthracite finish and durable steel construction. Its vertical design incorporates five 70mm flat fronted tubes mounted on the front of a single panel, creating a sleek and minimalist appearance while delivering a heat output of 2887 BTU or 847 Watts at Delta T60. Designed for standard central heating systems, it can also be used for dual fuel or electric only installations, offering flexible heating options for modern homes.

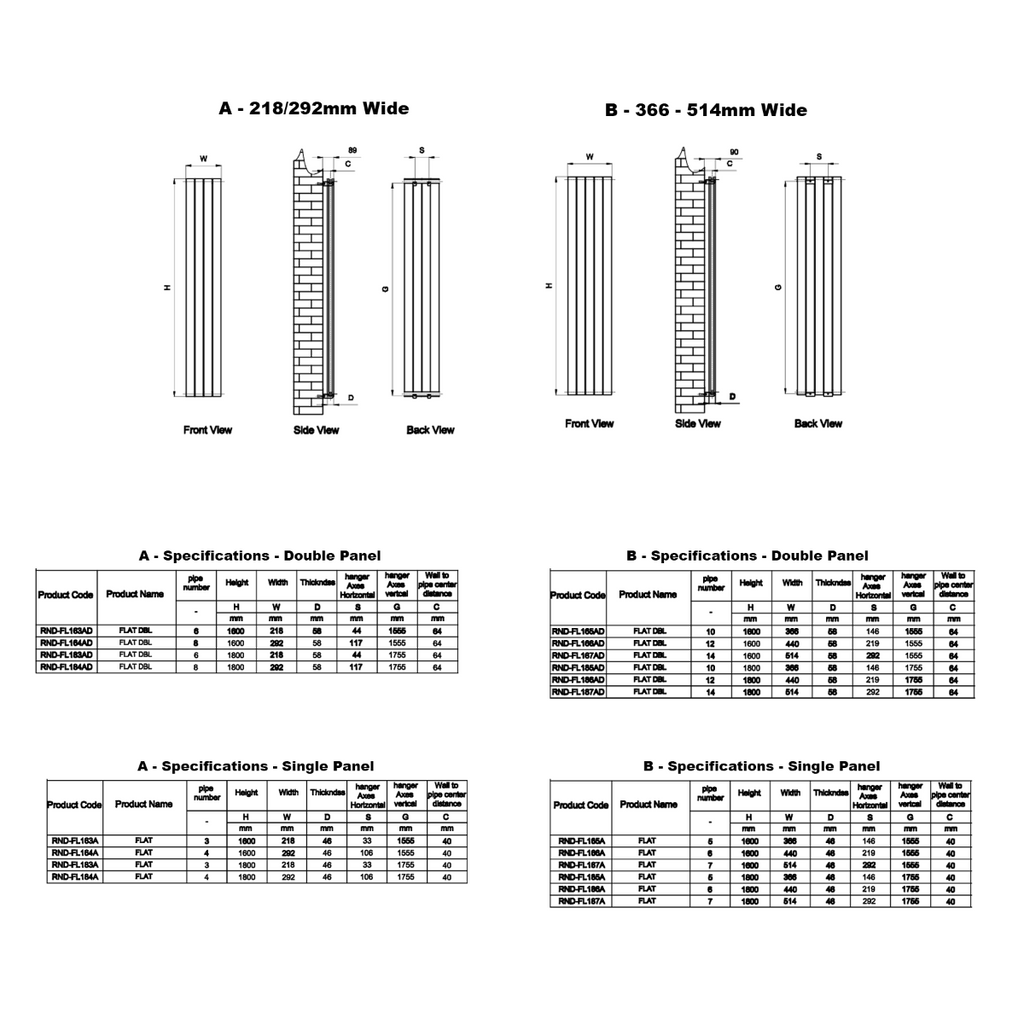

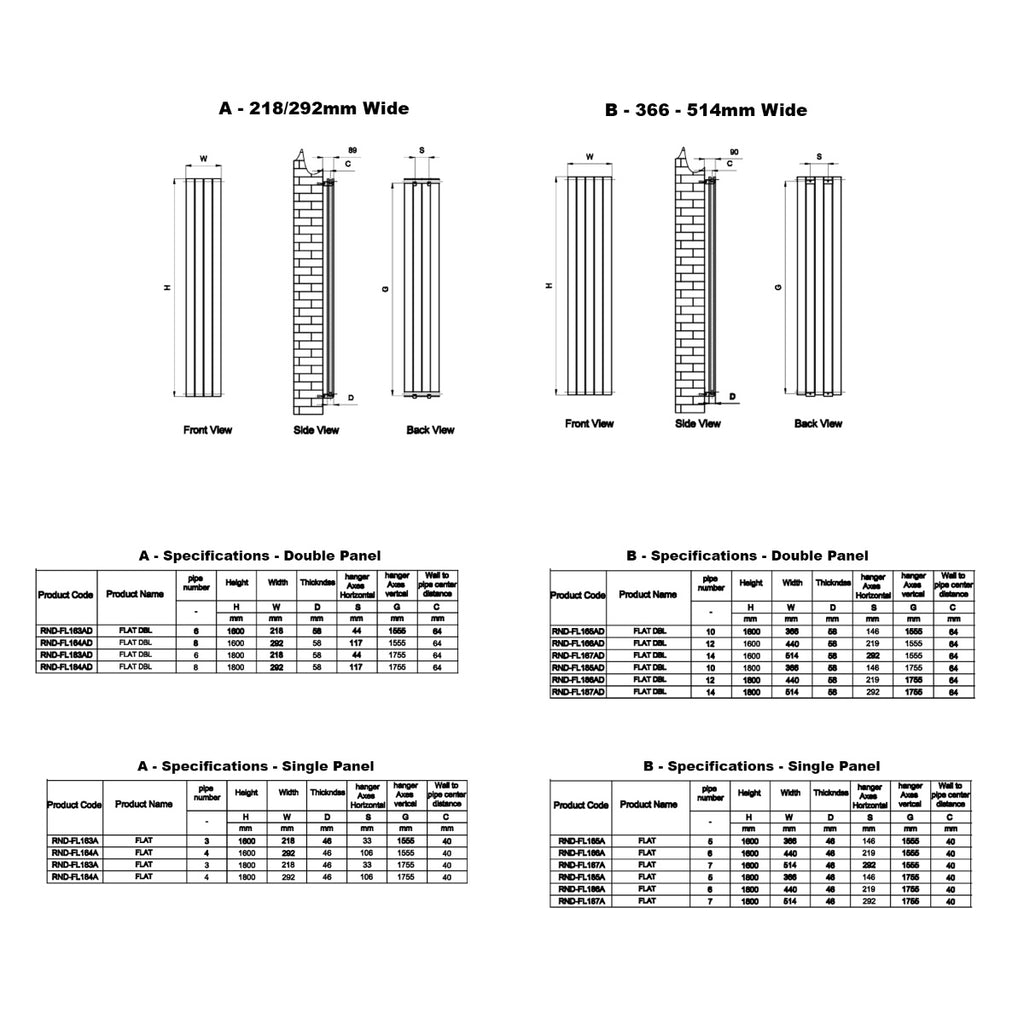

Suitable for wall or floor mounting, the Reina Flat Panel radiator is supplied with wall brackets and fixings for convenient installation. Manufactured to BS EN 442 standards, it features 1/2 inch BSP side connections and 366mm pipe centres. The wall to pipe centre measurement is 39mm, while the wall to front measurement is 68mm. Allow an additional 90mm for radiator valve pipe centres. This model is not suitable for conversion and radiator valves are not included. Its modern flat panel design provides an attractive and practical heating solution for contemporary spaces.
Product Specifications
- Product Type: Vertical Designer Radiator
- Brand: Reina
- Range: Flat
- Height: 1600mm
- Width: 366mm
- Colour: Anthracite
- Material: Steel
- Mounting: Wall/Floor Mounting
- Guarantee: 5 Years
- Style: Modern
- Fuel Type: Central Heating
- Heat Output ΔT60°C (BTU): 2887
- Heat Output ΔT60° (Watts): 847
- Pipe Centres: 366mm
- Orientation: Vertical
- Wall to Pipe Centres: 39mm
- Wall to Front: 68mm
- Number of Tube: 5
- Suitable for Conversion: No
Special Features
- Suitable for use with standard central heating systems
- Manufactured to BS/EN 442
- 1/2" BSP side connections - allow +90mm for radiator valve pipe centres
- Suitable for dual-fuel or electric-only installations
- Supplied with wall brackets and fixings for wall-mounted installation
- Single panel format; 1 set of tubes mounted on the front of the radiator
- Designer vertical radiator built using 70mm flat-fronted vertical tubes
- Radiator valves are not included
- Easy to install and use
- Images are shown for illustration purposes only
