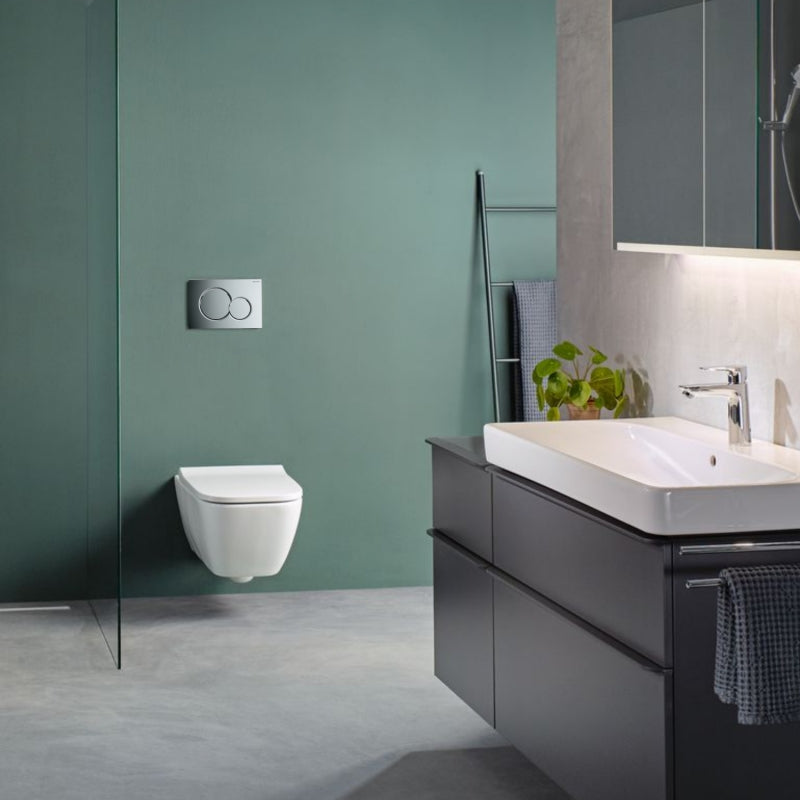

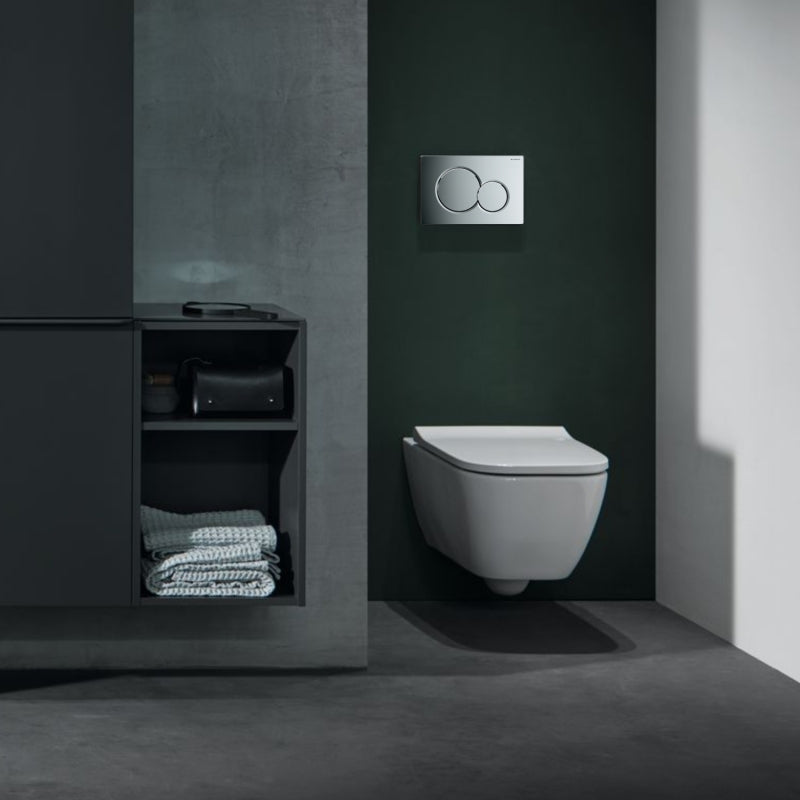

Rimless Wall Hung Pan Geberit Smyle Square Sigma Concealed Cistern Chrome Flush Plate 118.349.21.1

Rimless Wall Hung Pan Geberit Smyle Square Sigma Concealed Cistern Chrome Flush Plate

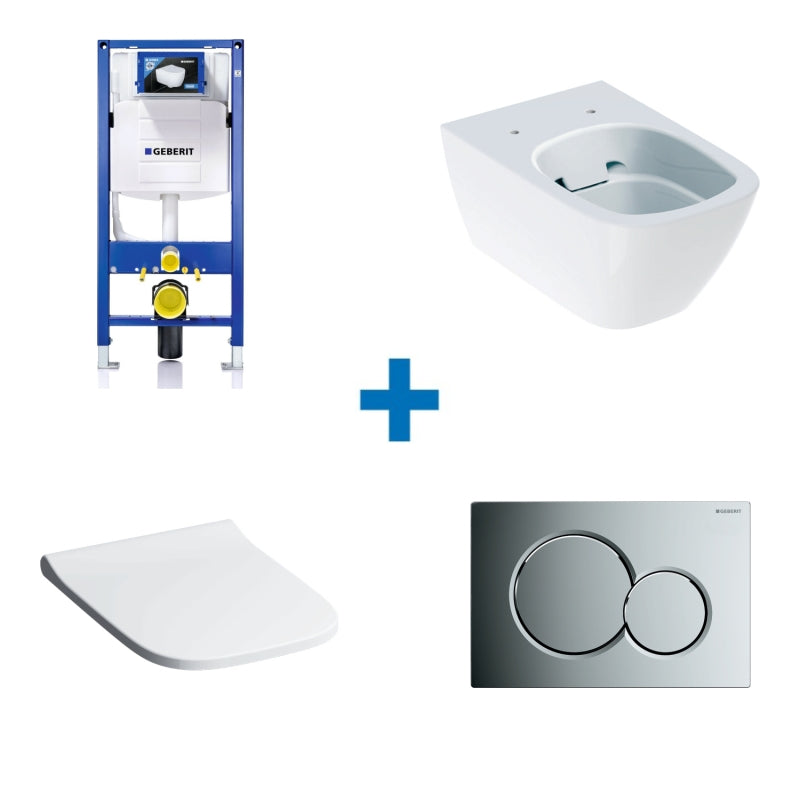

COMPLETE SET CONSISTING OF:

·       Geberit Sigma wc frame

·       Geberit sigma 01 chrome flush plate

·       Geberit smyle rimless wall hung pan

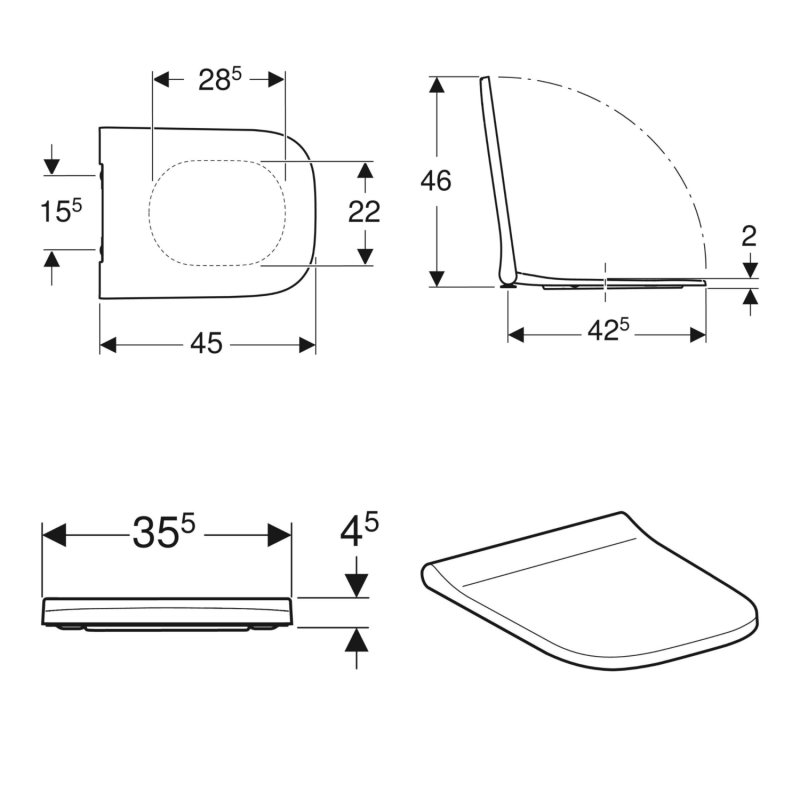

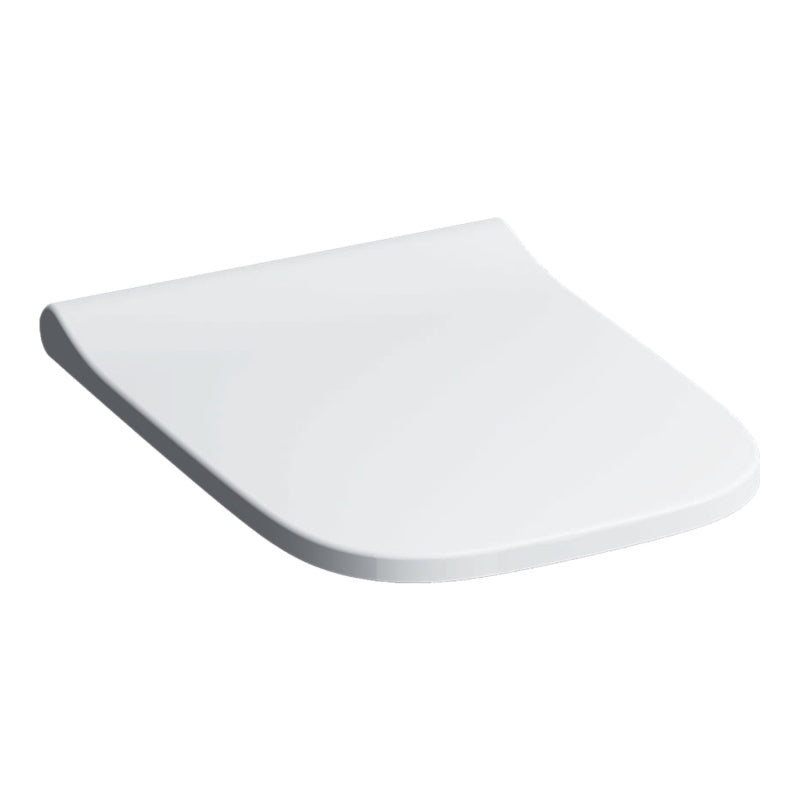

·       Geberit smyle soft close seat

FEATURES:

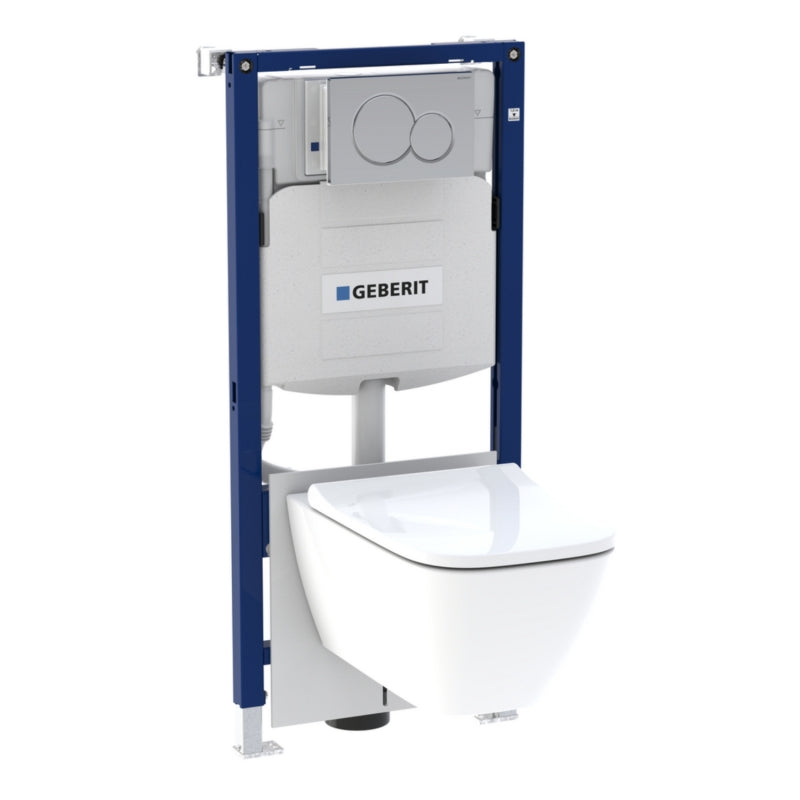

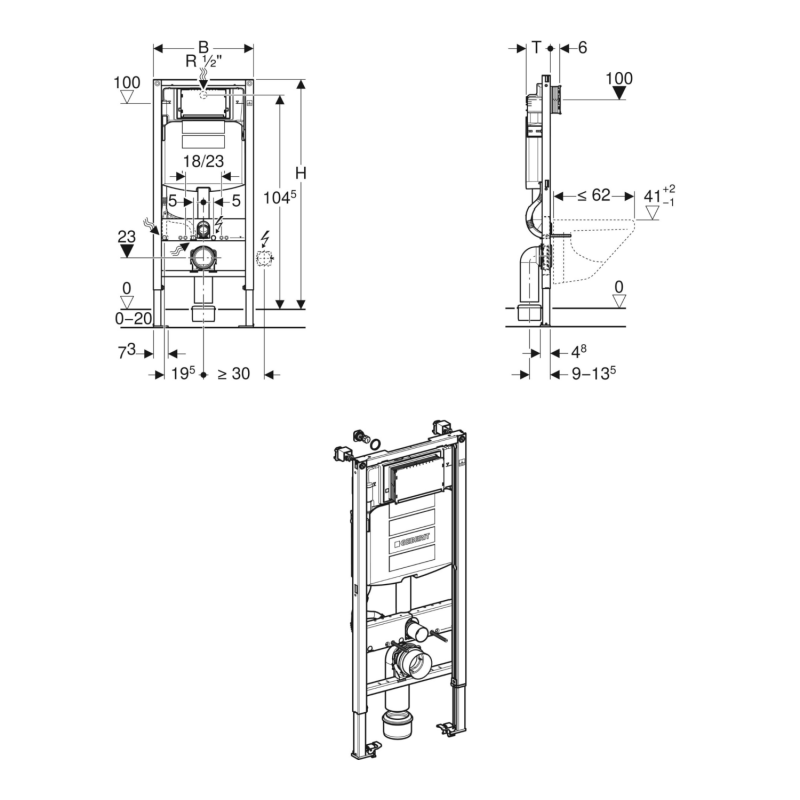

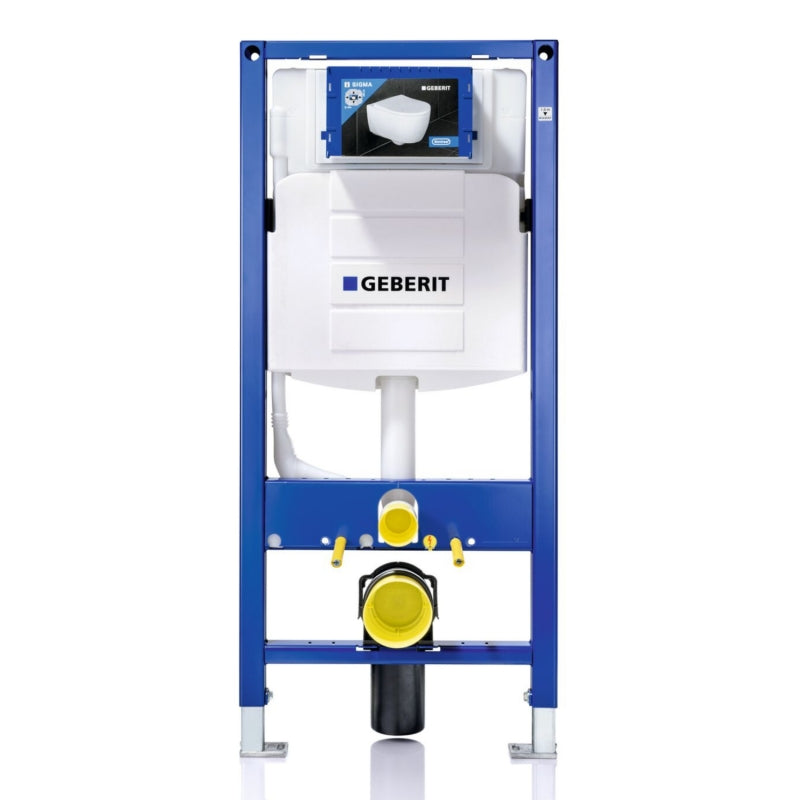

Sigma concealed cistern - 111.383.00.5

·       Flow pressure 0.1-10 bar

·       Maximum operating temperature, water 25 °C

·       Flush volume, factory setting 5.8 and 3 l

·       Flush volume small, adjustment range 2-4 l

·       Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel

·       Protection box for service opening

·       2 wall anchors

·       Connection set for WC, ø 90 mm

·       Connection bend 90° made of PE-HD, ø 90 mm

·       Adaptor socket made of PE-HD, ø 90 / 110 mm

·       2 protection plugs

·       2 threaded rods M12

·       Fastening material

·       Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame

·       The flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low-volume flush

·       The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

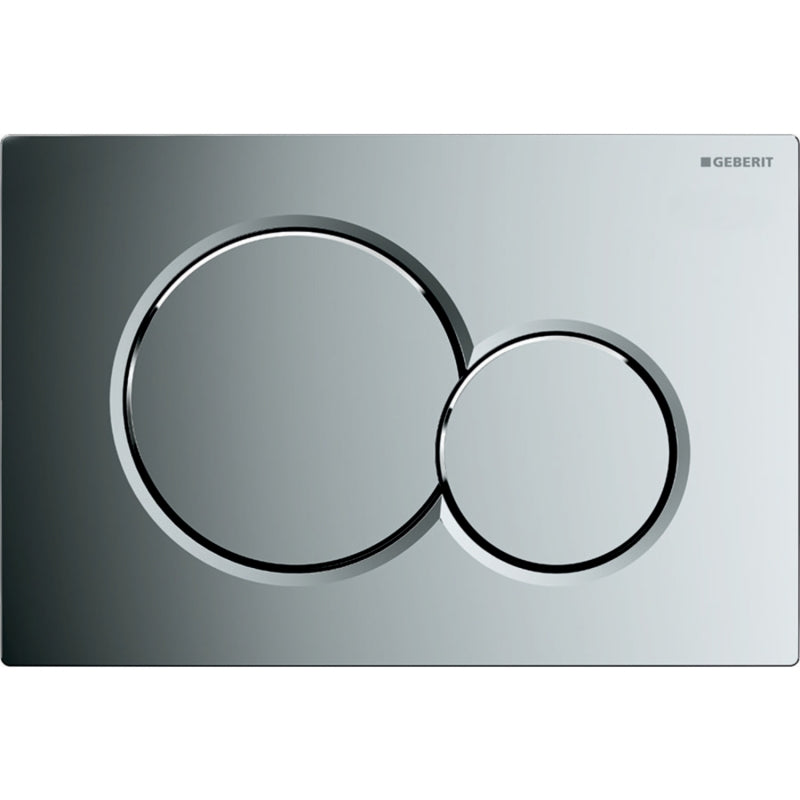

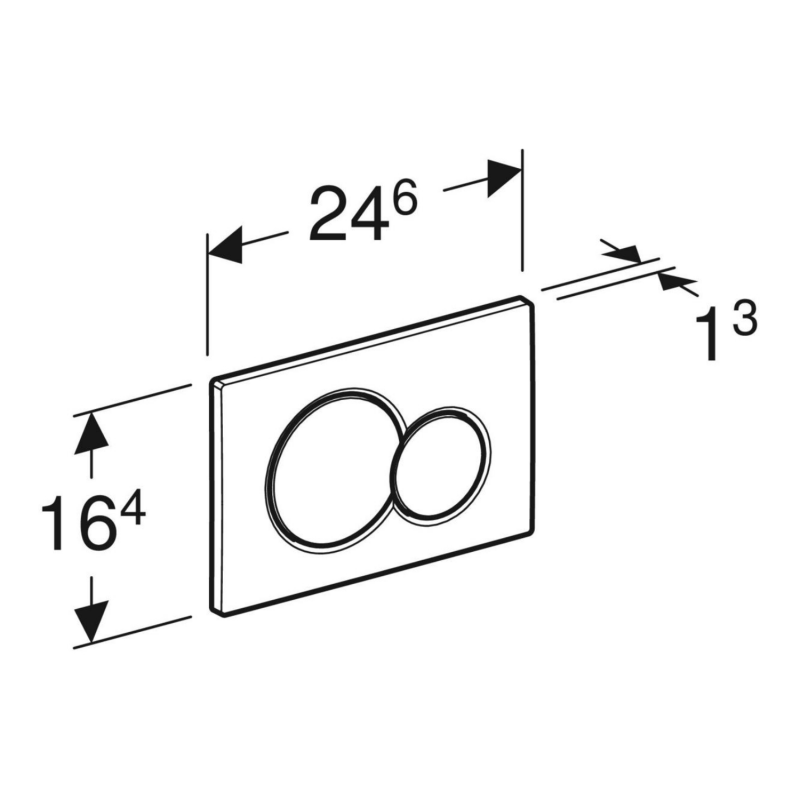

Geberit SIGMA01 dual flush plate 115.770.21.5

·       Front actuation

·       Sound-absorbing actuator rods; tool-free fast adjustment front actuation

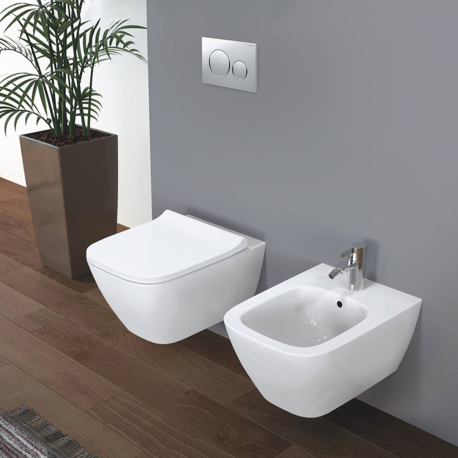

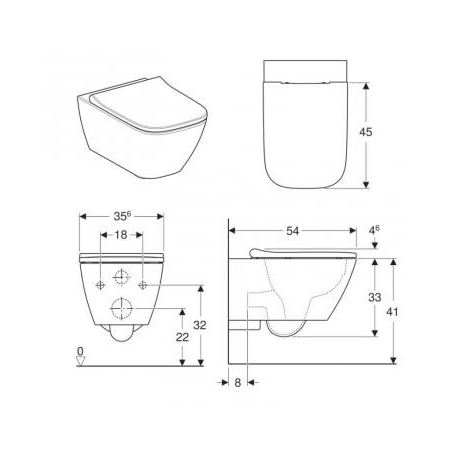

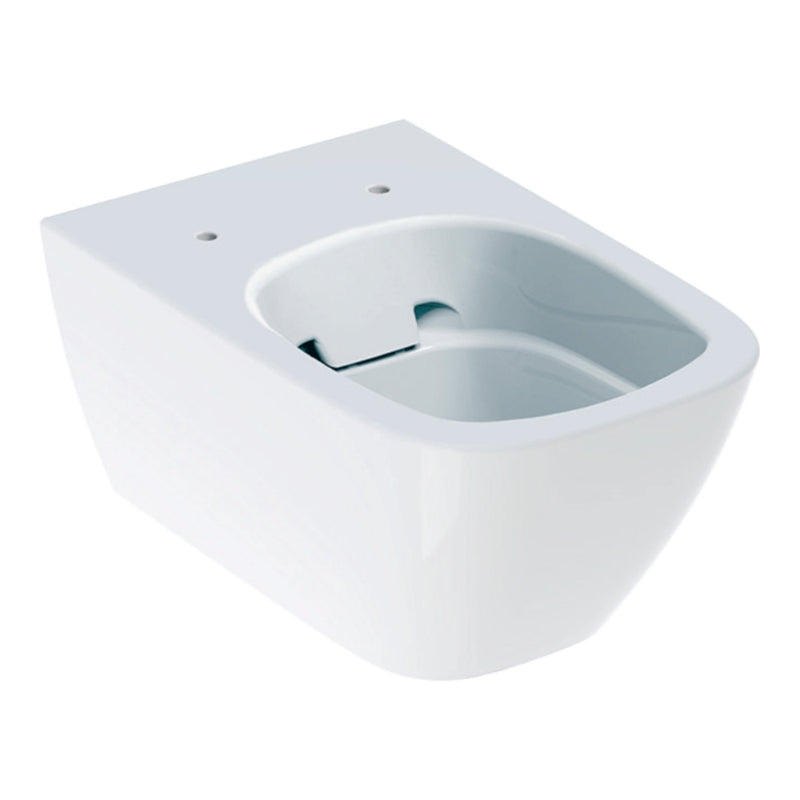

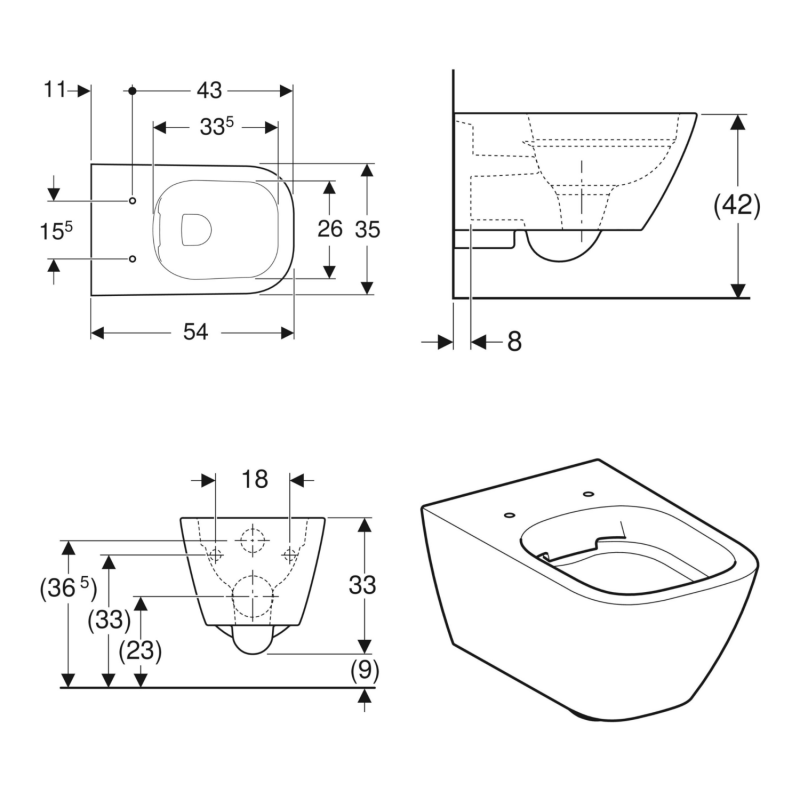

Geberit Smyle Square wall hung toilet pan

·       For pressure flushing valves

·       Easy fastening with Geberit WC wall fixing type EFF3

·       Type 1, full flush volume 6 / 5 l, in accordance with EN 997

·       Hidden fastening

·       Shrouded

·       Flushes with 4.5 l
