Description
ROCA DUPLO WC FRAME FOR UNDER WINDOW
INSTALLATION (820MM)

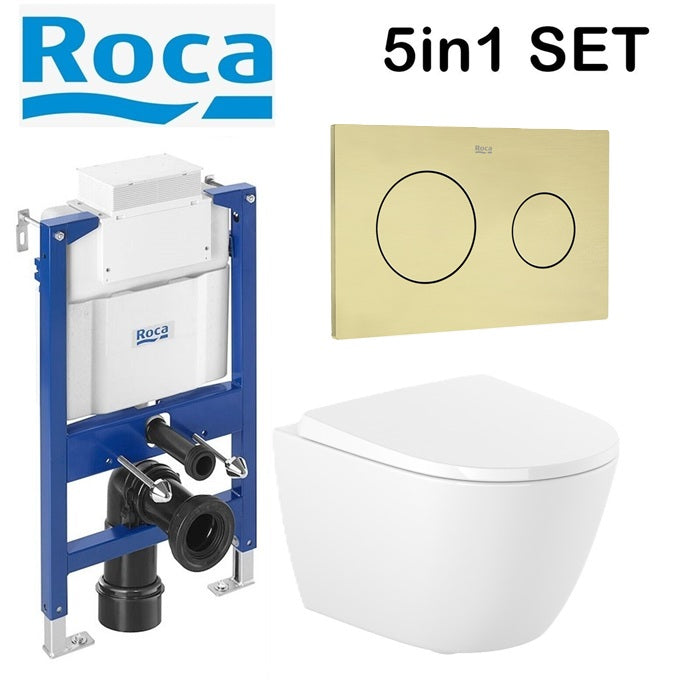

SET 5 in 1 CONSISTING OF:
- ROCA

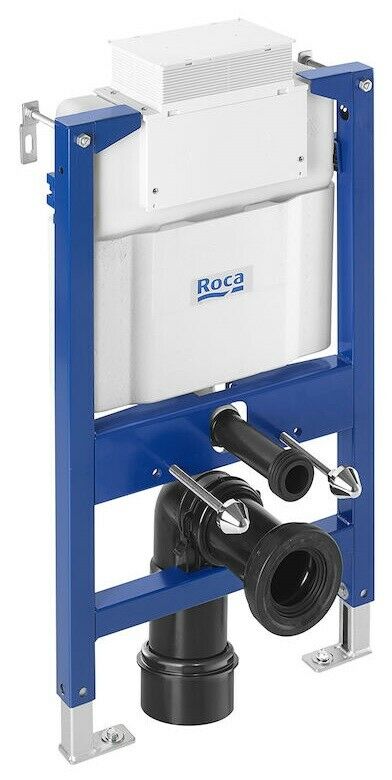

DUPLO ONE 0.82M WALL HUNG WC FRAME – (A8900720A0)
- ROCA

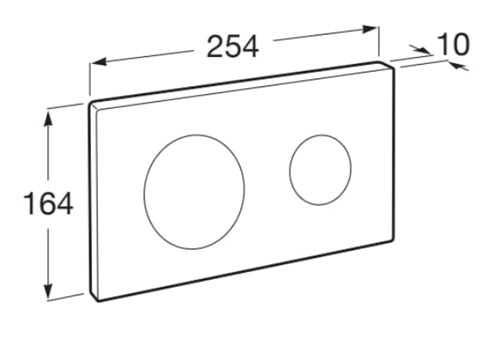

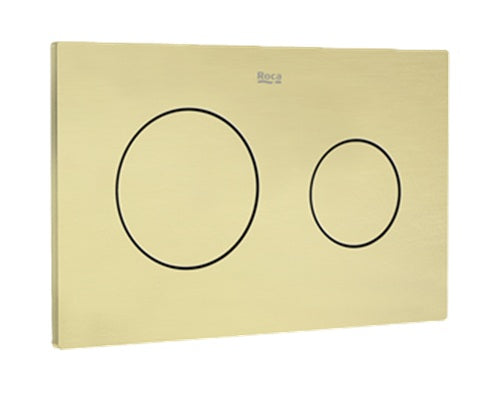

DUPLO ONE PL10 DUAL FLUSH PLATE BRUSHED BRASS – (A8901890VA)
- ROCA
FIXING WALL BRACKETS (set of 2)
- ROCA
ONA RIMLESS WALL-HUNG TOILET PAN 480mm - (A346688000)
- ROCA
SOFT CLOSE SEAT – (A801E22001)

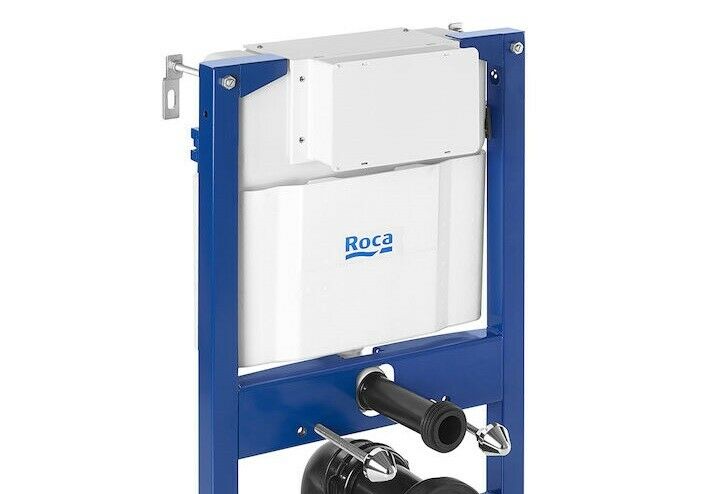

ROCA DUPLO WC FRAME FOR UNDER WINDOW INSTALLATION (820MM)
Systems that combine efficiency and technology, turning them into solutions
that look after the design and adapt perfectly to the space concerned.
Innovation and the avant-garde join forces to guarantee the best features,
where convenience, saving and style are to be found in every detail.

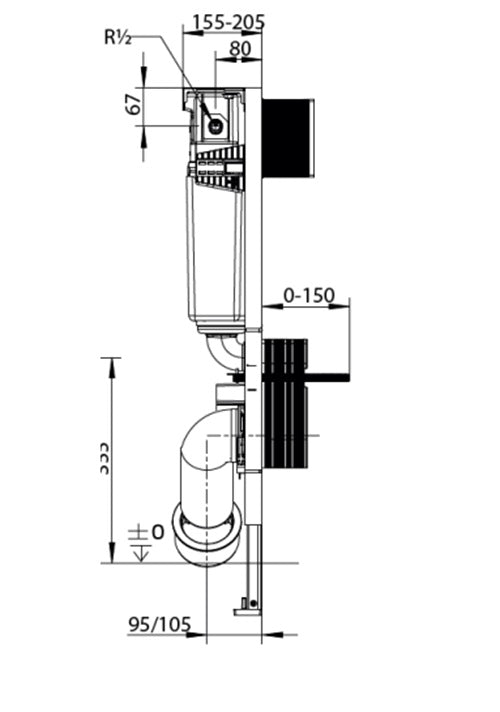

PRODUCT DETAILS
·
For Solid or Drywall Construction
·

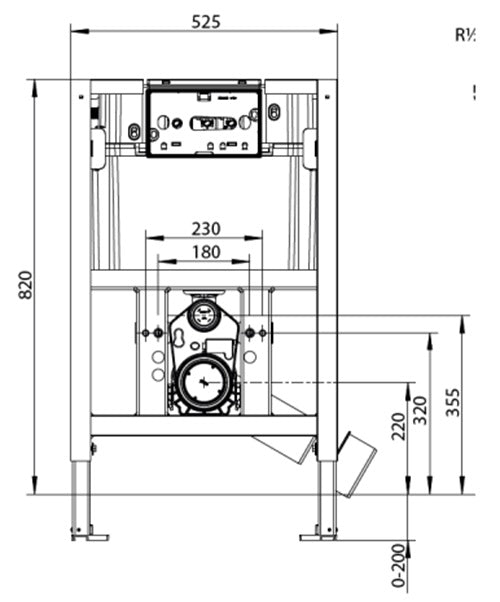

Suitable For Wall-hung Pans with Axial Distance
Of 180mm & 230mm
·
Frontal Operating Panel
·
Rod Operating Flush Plates
·
Cistern Insulated Against Condensation
·
Galvanised Leg Support With 0-200mm Adjustment with
Brake System
·
Ral 5002
·
Weight Resistant Up To 400kgs
·
Noise Level <20 Dba
·
Max Flush 6/3l
·
Low Flush 4.5/3l
·
Flow Rate 2.1 L/s
·
Outlet Pipe Can Be Rotated Up To 80
·
Horizontal Outlet Pipe Available
·
Flow Pressure 0.1-10bar
·
Works With All Non-Electric Duplo One-Flush
Plates
·
Net Weight 13kg
REGULATIONS
·
Meets En 14055 Cl2
·
Ag Air Gap Arrangement
·
Wras Certification 2312915
INCLUDES
·
Wc Connection Set With Instruction Manual
·
Fixing Kit For Floor And Wall
·
Tilling Set, Protection Caps And Protection
Cubes

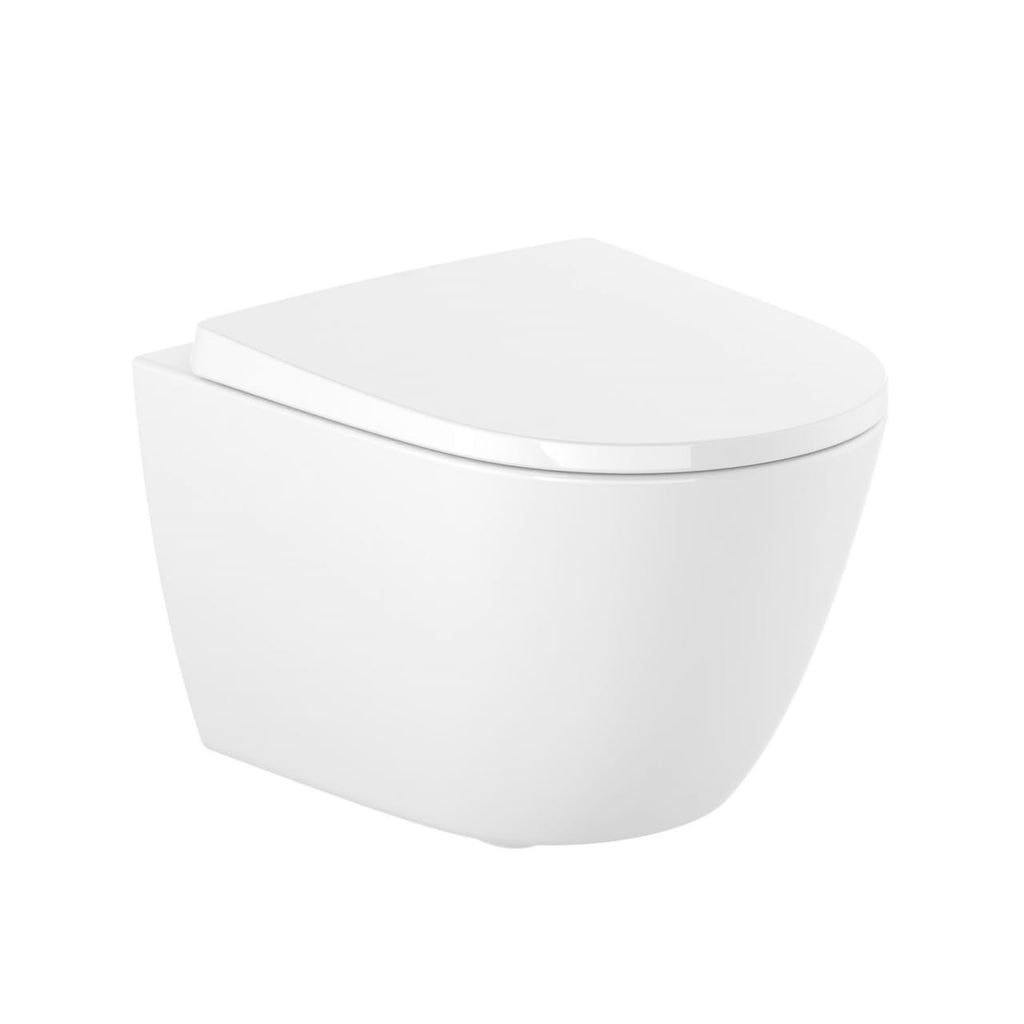

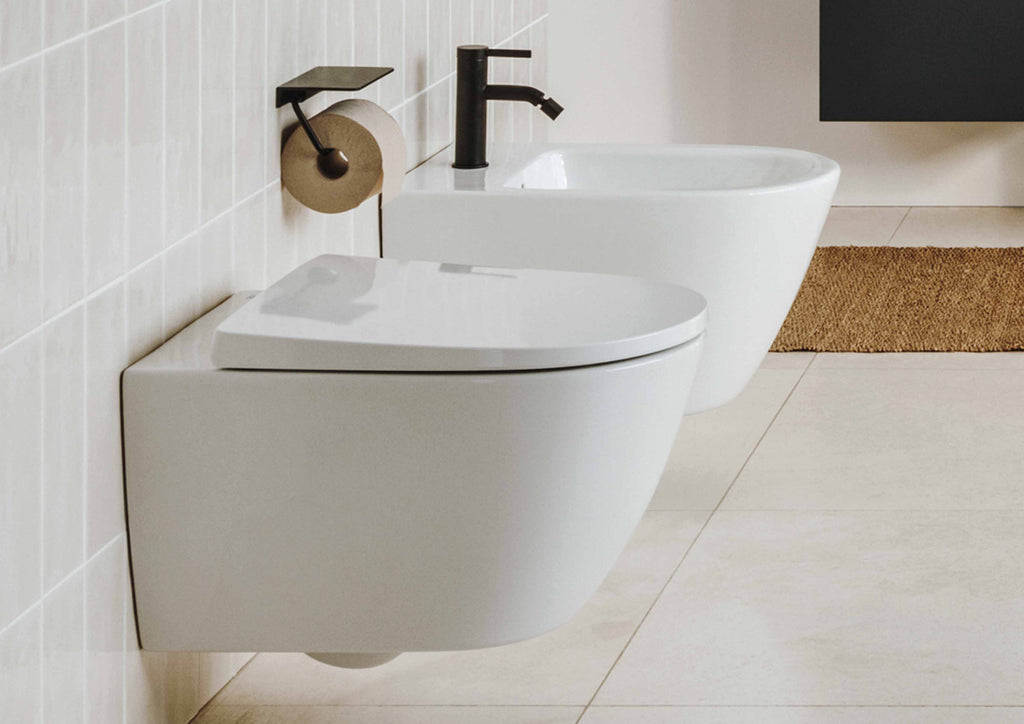

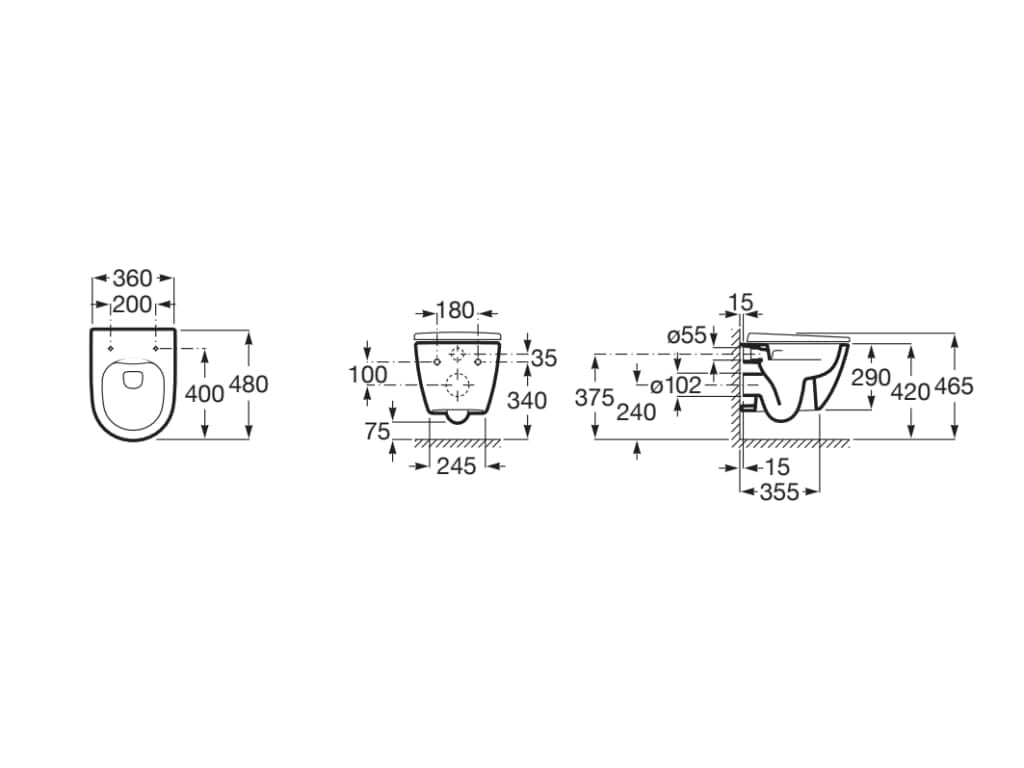

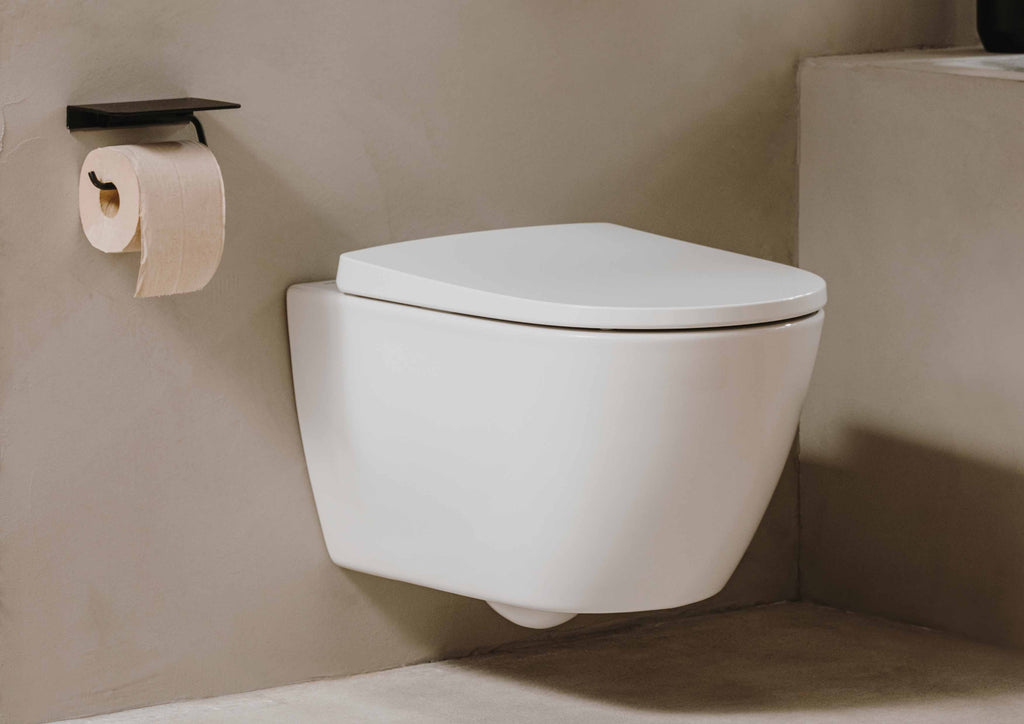

ROCA ONA WALL HUNG PAN & SEAT 480mm projection
- Toilet
Pan Includes Quick-release soft-close seat
- Beautifully
designed and produced to the highest standards
- Manufactured
from high-grade ceramic
- Wall
Hung toilet pan designed to maximise available space
- Comes
in an attractive white finish for universal appeal
- Extremely
easy to install and use
